– 10 –

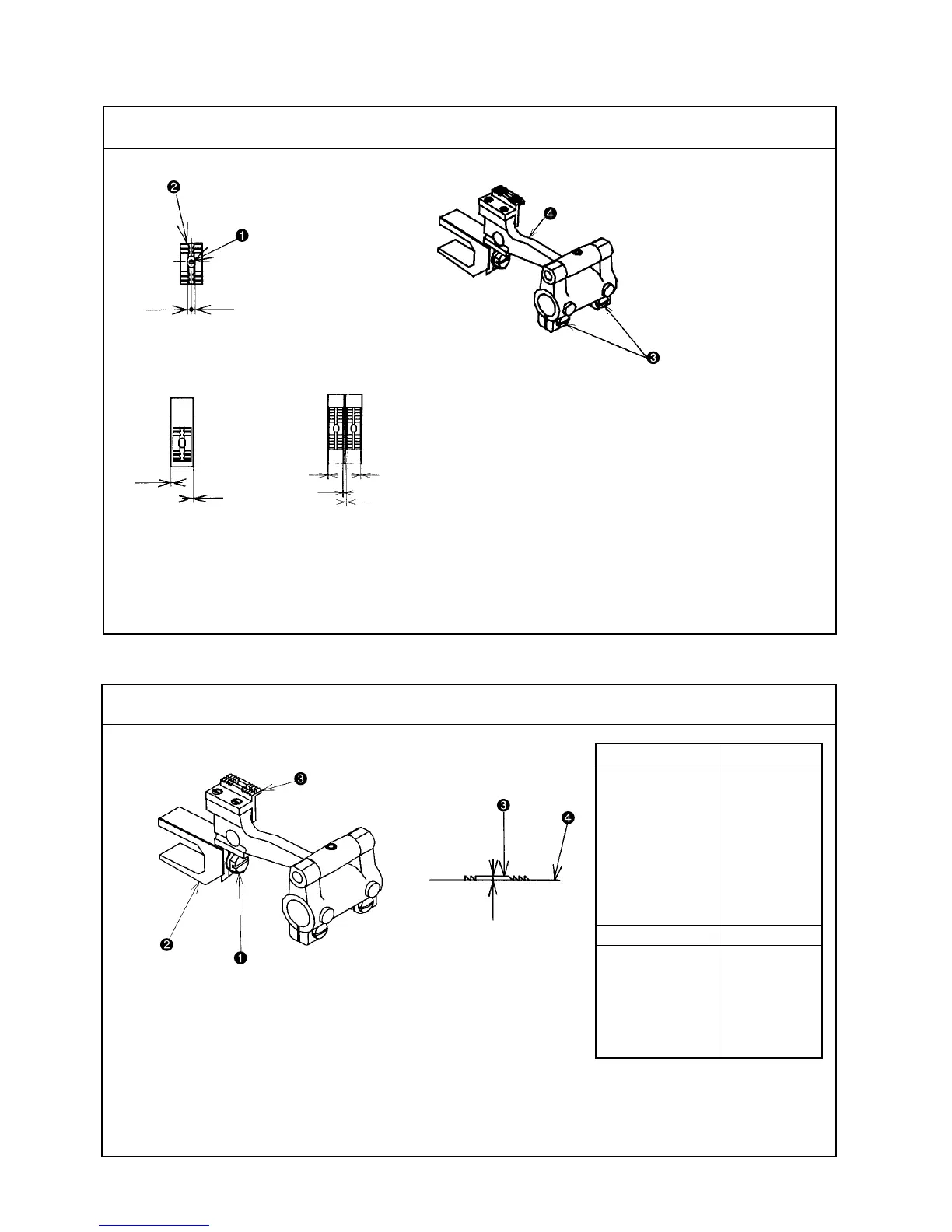

(3) Lateral position of the feed dog
Conditions
• Needle bar at lowest dead point
• Feed amount : 0 mm
(4) Height of the feed dog
Conditions
• Feed amount : 0 mm
• Height of feed dog is maximum.
Model Dimension A
LU-1509N 0.4 to 0.5mm
LU-1509NH
LU-1510N-7
LU-1511N-7
LU-1560N-7
LU-1561N
LU-1561N-7
LU-1510NA-7 0.7 to 0.9mm
LU-1508N 0.8 to 0.9mm
LU-1508NH
LU-1510N
LU-1560N
LU-1565N
Adjust so that A = B and C = D are almost obtained.
a
a’
A
B
A
a = a’
A
B
C
D
In case of 1-needle In case of 2-needle
Standard Adjustment
Standard Adjustment
