– 53 –
No. Part No. Name of part Q’ty
1PA320200100 Jig cylinder 1
2 PJ304065102 Elbow 1
3 PX015101000 Muffler 1
4 21438403 Cylinder connecting screw 1
5 SD0600403TP
Alternate vertical link hinge screw
1
6 NM6080721SE
Cylinder connecting screw nut
1
7 21437207 Window plate F 1
8 21437306 Window plate packing E 1
9 SM6044002TP Jig cylinder setscrew 2
10 21438106 Stopper plate B 1
11 21438601
Alternate vertical link spacer
1
12 SS6111610SP Setscrew 2
13 21438502 Alternate vertical link 1
14 SD0600452TP Hinge screw 1
15 21438700
Alternate vertical link support
1
16 SS4110815SP Setscrew 2
17 21438205 Top feed stopper plate 1
18 21348909 Window plate D 1
19 21332002 Window plate packing B 1
20 SS4110815SP Window plate setscrew 2
Parts list
• Removing parts list
Note No. Part No. Name of part Q’ty
1 21339601 Top feed stopper plate A 1
2 21339700 Top feed stopper plate 1
3 21331905 Window plate C 1
4 21332101 Window plate packing C 1
Note No. Note Name of part Q’ty
1 40025683 DL-22C kit 1
• Set Part No. of DL device (This part No. is the set part
No. of the parts List A to List C.)
• Parts list related to DL device (List A)
No. Part No. Name of part Q’ty
1
GAKA2302D00
Solenoid valve D 1
A
2 BT0600401EB Air hose 1
3 HX00295000C Wire mark [4] 3
4 HK03464000A Female terminal 3
5 HK034610100
Housing 10P (10-pin connector)
1
6
40025036
Knee lifter switch (asm.) 1
7 SK3514000SC Installing wood screw 2
• Pneumatic device components (List B)
No. Part No. Name of part Q’ty
1 40024849 5-operation switch (asm.) 1
2 SS7110840SP
5-operation switch (asm.) setscrew
2
3 EA9500B0100 Clip band 3
• 5-operation switch components (List C)
(2) Thread trimmer Ver.UP set (Part No. for 1-needle : 21389259, Part No. for 2-needle : 21389267)
This set can shorten the length of remaining thread by replacing the parts related to the thread trimmer of LU-
1510-7 and LU-1560-7 (old type machine with thread trimmer). * Please order from us with the aforementioned
part Nos.
For the installing procedure, refer to the Instruction Manual inserted in the set.
(3) Bobbin thread remaining amount detecting device (AE-10A Kit Part No. : GAE10000AA0)
This kit can install the device which detects the remaining amount of bobbin thread in a bobbin after set-up of the
machine with thread trimmer. * Please order from us with the aforementioned part No.
For the installing procedure, refer to “AE-10 Instruction Manual” inserted in the kit.
CN20-6 (Red)
CN20-1 (Black)
A
CN20-8 (Red)
CN20-3 (Black)
CN20-7 (Red)
CN20-2 (Black)
CN20

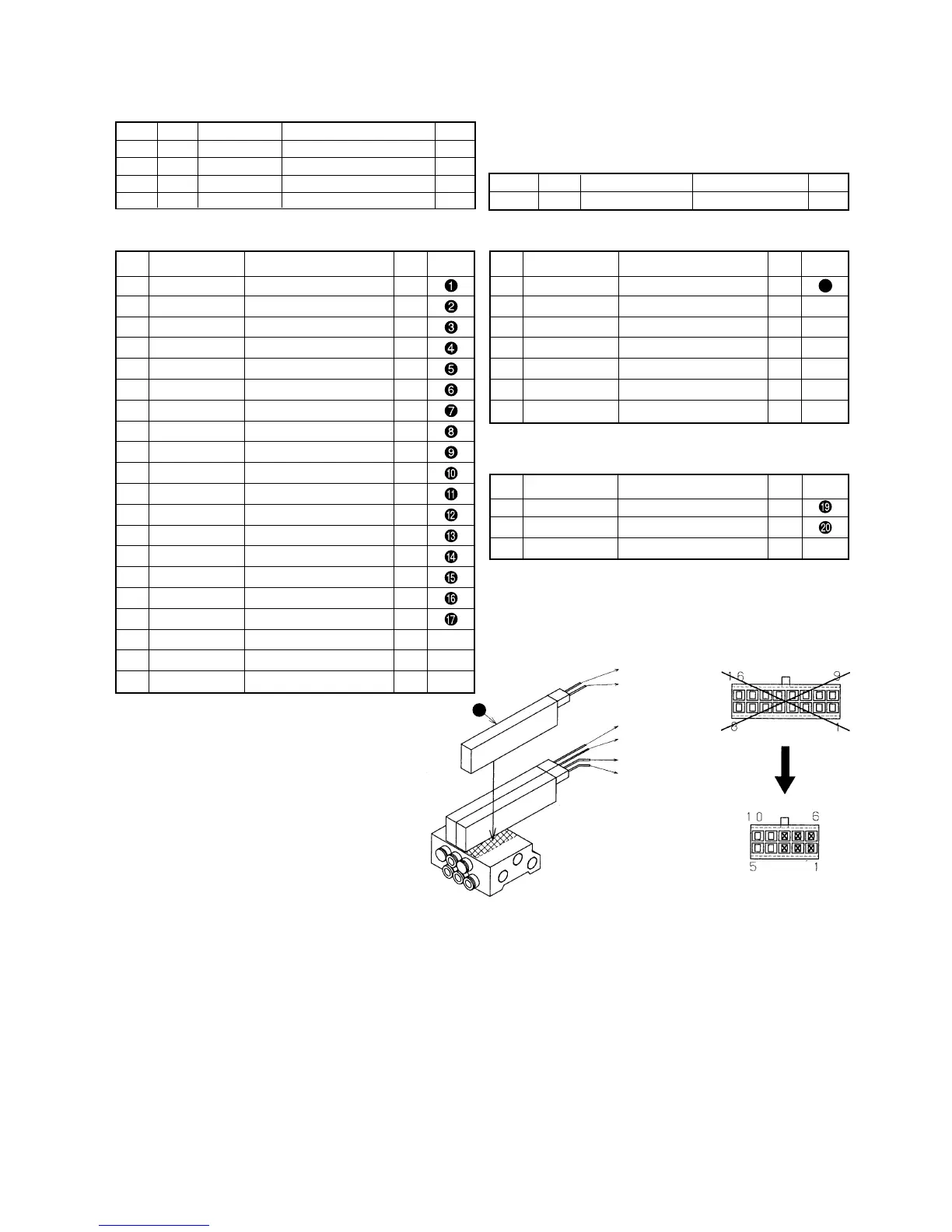

(Cautions)
For LU-1510NA-7, parts for the air system
are different from those for other models.
Therefore, the above-mentioned [DL-22 Kit
C] (Part No. 40025683) cannot be used.
When the DL device is mounted after
mechanical setup, use [DL-25] (set part No.
40051663).
For the [DL-22 Kit C], only the method of
installation is different for the parts related
to the air system. (See the figure at right.)
(For models other than LU-1510NA-7,
solenoid valves are to be replaced. For LU-
1510NA-7, however, solenoid valves for the
kit interior are to be added.)
Nos. in the
figure
Nos. in the
figure
Nos. in the
figure
