– 57 –

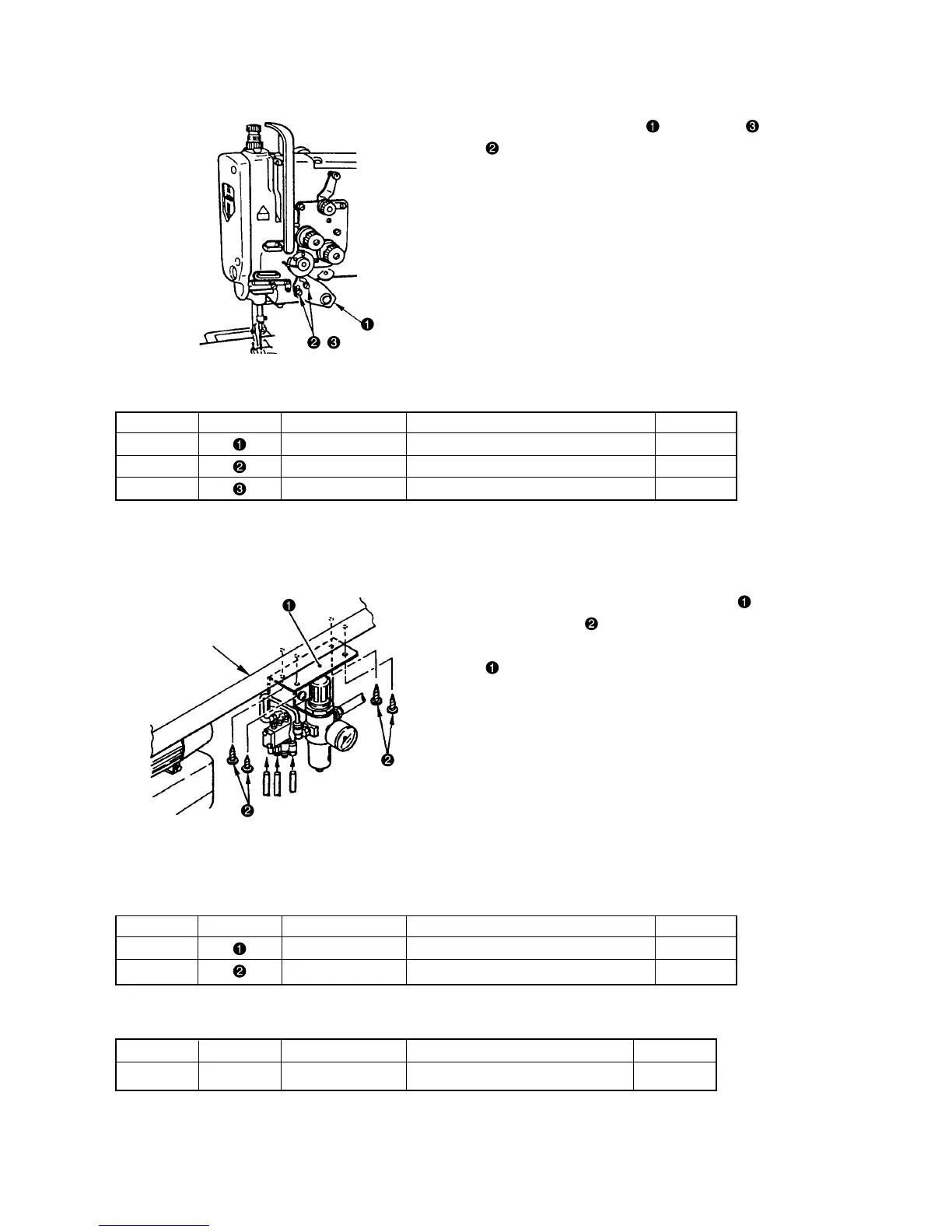

6) Installing the touch-back switch (List 4)
1. Install touch-back switch with washer and setscrew
.
7) Installing the pneumatic components (List 5)
1. Install pneumatic components (asm.) onto the table
with setscrews .
2. Connect the air hose with pneumatic components (asm.)
.
o Part No. of the automatic reverse feed device set
Note No. Part No. Name of part Q’ty
40034306 Automatic reverse feed device set 1
Installing parts list of touch-back switch (List 5)
Note No. Part No. Name of part Q’ty
40026940 Pneumatic components (asm.) 1
SK3482500SC Setscrew 4
Installing parts list of touch-back switch (List 4)
Note No. Part No. Name of part Q’ty
21348859 Touch-back switch 1
SS7110840SP Setscrew 2
WP0501016SD Washer 2
(Caution) This part No. is the set part No. of the parts from list 1 to list 5.
Table
To Next Page
