JUKI LU-1508N Engineer's Manual

– 24 –
Operator’s
side
83 to 84 mm
83 to 84 mm

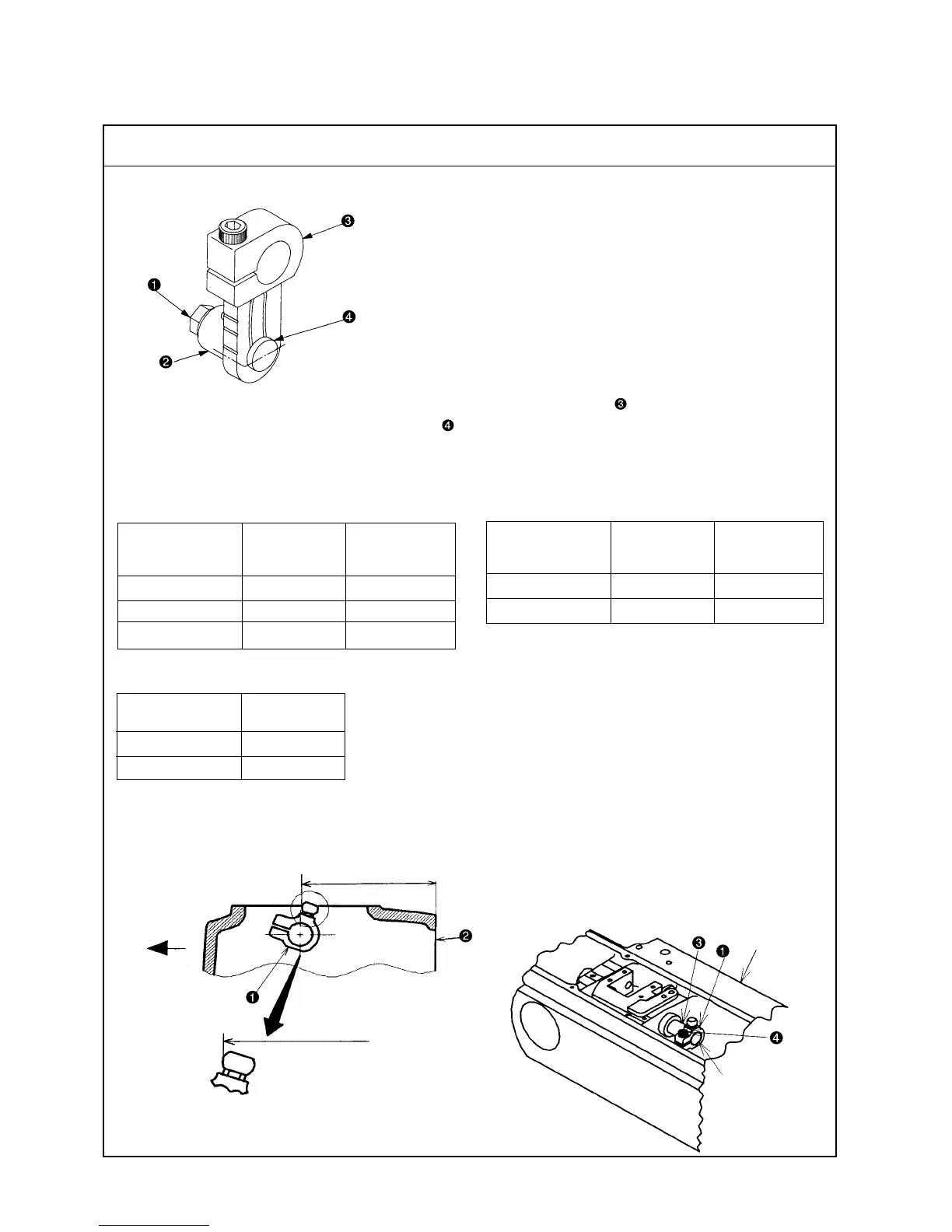

(11) Feed motion
1) Amount of alternate vertical movement (position of the vertical adjusting arm)
Edge of
machine arm
To align
with edge
oIn case of the machine without thread trimmer
o In case of the machine without thread trimmer
Standard of amount of alternate vertical movement
Upper engraved marker line : Approx. 5 mm
Center engraved marker line : Approx. 4 mm
Lower engraved marker line : Approx. 3 mm
Standard adjustment value : Lower engraved marker line of top feed rear arm aligns with the
center of hinge screw
.
List of sewing speed
o In case of LU-1508N, LU-1509N, LU-1560N o In case of LU-1508NH and LU-1509NH
and LU-1561N
Stitch length less Stitch length more
than 6 mm than 6 mm and
less than 9 mm
Less than 3 mm 2500rpm 2000rpm
3 to less than 4 mm 2000rpm 2000rpm
4 to less than 6.5 mm 1600rpm 1600rpm
Amount of alternate
vertical movement
Stitch length less Stitch length more
than 6 mm than 6 mm and
less than 9 mm
Less than 4 mm 2000rpm 1600rpm
4 to less than 6.5 mm 1600rpm 1600rpm
Stitch length less
than 9 mm
Less than 4 mm 2000rpm
4 to less than 6.5 mm 1600rpm
o In case of LU-1565N
o In case of the machine with thread trimmer,
refer to “(23) Alternate vertical dial”.
Standard Adjustment
Amount of alternate
vertical movement
Amount of alternate
vertical movement
