– 56 –

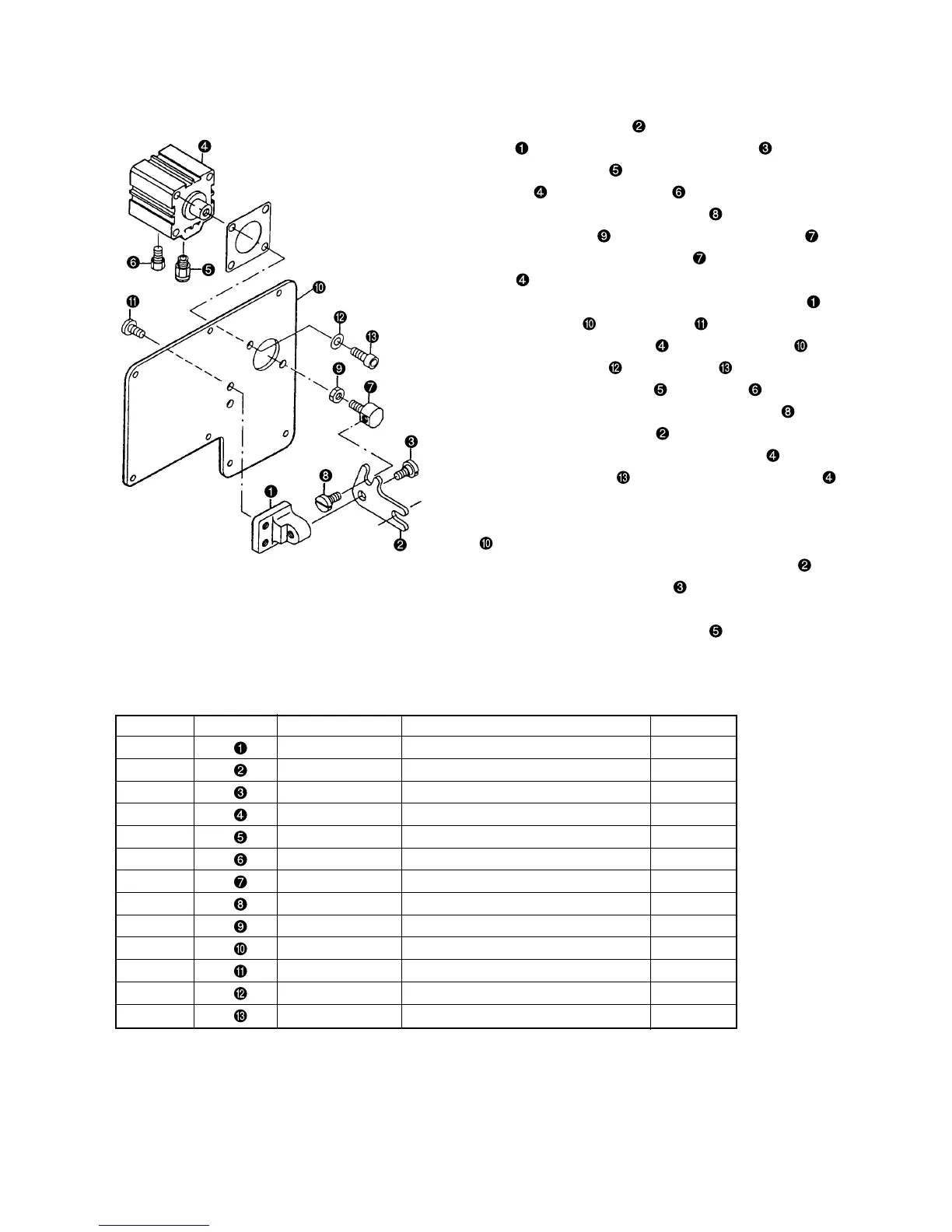

5) Installing the automatic reverse feed device (List 3)
1. Install reverse feed link to reverse feed link installing
base with reverse feed link hinge screw .
2. Install straight joint to the inlet port of reverse feed
cylinder and install muffler to the exhaust port.
3. Install reverse feed link hinge screw and cylinder con-
necting screw nut to cylinder connecting screw .
4. Install cylinder connecting screw to reverse feed cyl-
inder .
5. Temporarily tighten reverse feed link installing base to
window plate D with setscrew .
6. Enter reverse feed cylinder to window plate D and
tighten with washer and setscrew .
(Adjust so that straight joint and muffler face down-
ward and enter reverse feed link hinge screw in the
groove of reverse feed link .)
7. Move the piston rod of reverse feed cylinder by hand
and tighten setscrew so that reverse feed cylinder
smoothly moves.
8. Tighten the window plate packing B and window plate D
in order with the setscrew.
At this time, enter the groove of reverse feed link the
reverse feed link hinge screw on the side of the feed
regulator connecting rod.
9. Insert the air hose into straight joint .
Installing parts list of automatic reverse feed device (List 3)
Note No. Part No. Name of part Q’ty
21348503 Reverse feed link installing base 1
21348701 Reverse feed link 1
SD0800352SP Reverse feed link hinge screw 1
PA320150200 Reverse feed cylinder 1
PJ301065104 Straight joint 1
PX015101000 Muffler 1
21348602 Cylinder connecting screw 1
SD0800352SP Reverse feed link hinge screw 1
NM6060003SC Cylinder connecting screw nut 1
21348909 Window plate D 1
SS7151210SP Setscrew 2
WP0641601SD Washer 2
SM6061602TP Setscrew 2
