8.6.2 Symbols in the display
Any number of pictograms can be displayed in the pictogram field (86). Which
pictograms are shown in the pictogram field depends on the operating and truck
status.

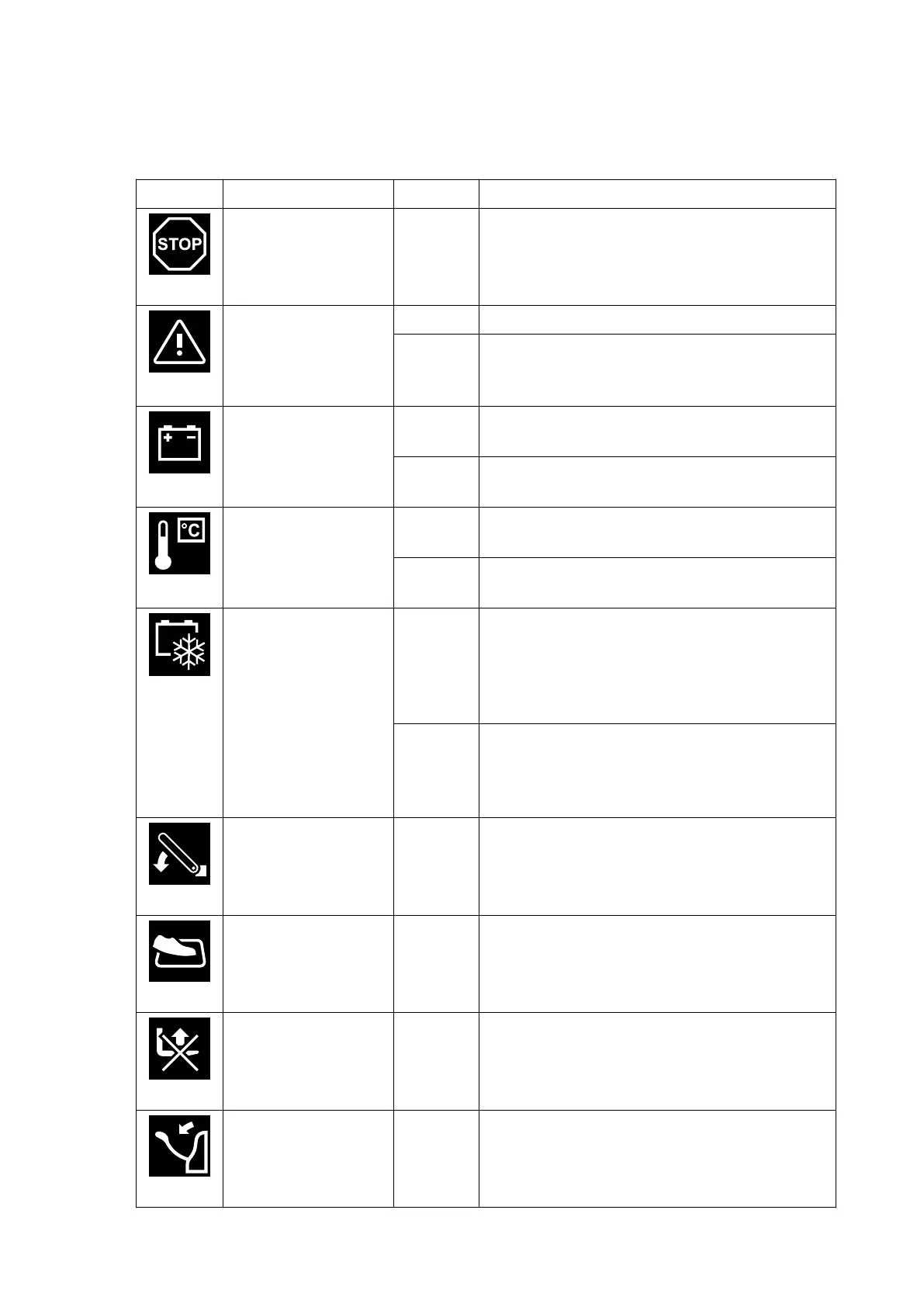

Symbol Meaning Colour Function
Stop notice red Functions deactivated due to truck
malfunction
Warning yellow Operating error
red Truck malfunction detected. Travel is
restricted to slow travel or lift, lower and
travel functions are reduced.
Battery indicator,
low residual
capacity
yellow Residual capacity ≤ 30%
The battery must be charged soon.
Red Residual capacity ≤ 20%
The battery must be charged immediately.
Overtemperature yellow Overtemperature detected. Lifting,
lowering and travel functions reduced.
Red Overtemperature detected. Lifting,
lowering and travel functions deactivated.
Lithium ion battery
low temperature
(o)
yellow Lithium ion battery low temperature
detected
– Discharge currents and energy
recovery are reduced at low
temperatures.
Lithium ion battery below permissible
temperature range
– The truck switches off via the battery
contactor.
Side arm yellow Illuminates if both side arms are not
folded in or both are not folded out.
Operator platform
Deadman switch
yellow Illuminates if the fixed or folded out stand-
on platform is not under load with the
travel switch operated.
Lift deactivated yellow Illuminates if the lifting functions are shut
off due to insufficient battery capacity.
Tiller position yellow Lights up on power-up with tiller in travel
zone.
Illuminates with travel switch operated
and tiller in braking zone.
