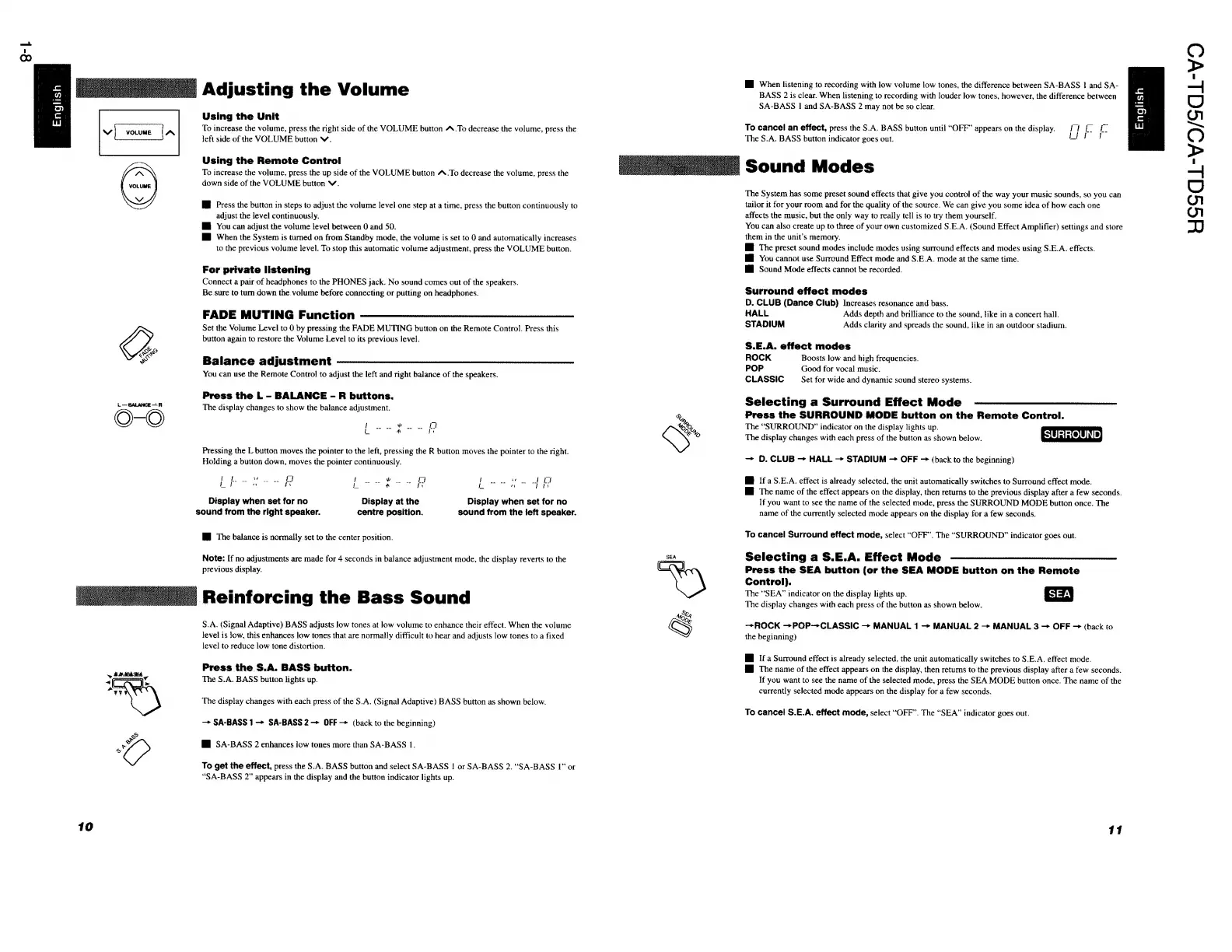

Adjusting the Volume
Using the Unit
To increase the volume, press the right side of the VOLUME button A.To decrease the volume, press the
left side of the VOLUME button V..
v [awe JA
eo
Ww
Using the Remote Control
To increase the volume, press the up side of the VOLUME button A.To decrease the volume, press the
down side of the VOLUME button v.
MM Press the button in steps to adjust the volume level one step at a time, press the button continuously to
adjust the level continuously.
MB You can adjust the volume level between 0 and 50.
HB When the System is turned on from Standby mode, the volume is set to 0 and automatically increases
to the previous volume level. To stop this automatic volume adjustment, press the VOLUME button.
For private listening
Connect a pair of headphones to the PHONES jack. No sound comes out of the speakers.
Be sure to tum down the volume before connecting or putting on headphones.
FADE MUTING Function
Set the Volume Level to 0 by pressing the FADE MUTING button on the Remote Control. Press this
button again to restore the Volume Level to its previous level.
» Balance adjustment
You can use the Remote Control to adjust the left and right balance of the speakers.
Press the L - BALANCE - R buttons.
The display changes to show the balance adjustment.
&,
O-O i We Cl ie
| nner eee 5 :
Pressing the L button moves the pointer to the left, pressing the R button moves the pointer to the right.
Holding a button down, moves the pointer continuously.
S
cag
Ss
i te i" he a
L pee oS i i a Sooke fl i: ae ee i
Display when set for no Display at the Display when set for no
sound from the right speaker. centre position. sound from the left speaker.
WM The balance is normally set to the center position.
Note: If no adjustments are made for 4 seconds in balance adjustment mode, the display reverts to the ara
previous display.
Reinforcing the Bass Sound
S.A. (Signal Adaptive) BASS adjusts low tones at low volume to enhance their effect. When the volume
level is low, this enhances low tones that are normally difficult to hear and adjusts low tones to a fixed
level to reduce low tone distortion.
O»
Press the S.A. BASS button.
Pe 4 The S.A. BASS button lights up.
oY
The display changes with each press of the $.A. (Signal Adaptive) BASS button as shown below.
— SA-BASS 1— SA-BASS 2— OFF -+ (back to the beginning)
Cod
iC MB SA-BASS 2 enhances low tones more than SA-BASS 1.
To get the effect, press the S.A. BASS button and select SA-BASS ! or SA-BASS 2. “SA-BASS 1” or
“SA-BASS 2” appears in the display and the button indicator lights up.
10
Hi When listening to recording with low volume low tones, the difference between SA-BASS | and SA-
BASS 2 is clear. When listening to recording with louder low tones, however, the difference between
SA-BASS | and SA-BASS 2 may not be so clear.
To cancel an effect, press the S.A. BASS button until “OFF” appears on the display. fd [ [
The S.A. BASS button indicator goes out. Ltr}
Sound Modes
The System has some preset sound effects that give you control of the way your music sounds, so you can
tailor it for your room and for the quality of the source. We can give you some idea of how each one
affects the music, but the only way to really tell is to try them yourself.
You can also create up to three of your own customized §.E.A. (Sound Effect Amplifier) settings and store
them in the unit’s memory.
ME The preset sound modes include modes using surround effects and modes using S.E.A. effects.
MB You cannot use Surround Effect mode and S.E.A. mode at the same time.
MM Sound Mode effects cannot be recorded.
Surround effect modes
D. CLUB (Dance Club) Increases resonance and bass.
HALL Adds depth and brilliance to the sound, like in a concert hall.
STADIUM Adds clarity and spreads the sound, like in an outdoor stadium.
S.E.A. effect modes
ROCK Boosts low and high frequencies.
POP Good for vocal music.
CLASSIC Set for wide and dynamic sound stereo systems.
Selecting a Surround Effect Mode
Press the SURROUND MODE button on the Remote Control.
The “SURROUND” indicator on the display lights up. SURROUND
The display changes with each press of the button as shown below.
— D. CLUB — HALL — STADIUM — OFF — (back to the beginning)
@ ifaS.E.A. effect is already selected, the unit automatically switches to Surround effect mode.
MB The name of the effect appears on the display, then returns to the previous display after a few seconds.
Tf you want to see the name of the selected mode, press the SURROUND MODE button once. The
name of the currently selected mode appears on the display for a few seconds.
To cancel Surround effect mode, select “OFF”. The “SURROUND” indicator goes out.
Selecting a S.E.A. Effect Mode
Press the SEA button (or the SEA MODE button on the Remote
Control).
The “SEA” indicator on the display lights up. B27)
The display changes with each press of the button as shown below.
ROCK —POP->CLASSIC — MANUAL 1 — MANUAL 2 -- MANUAL 3 > OFF — (back to
the beginning)
MB If a Surround effect is already selected, the unit automatically switches to S.E.A. effect mode.
HB The name of the effect appears on the display, then returns to the previous display after a few seconds.
If you want to see the name of the selected mode, press the SEA MODE button once. The name of the
currently selected mode appears on the display for a few seconds.
To cancel S.E.A. effect mode, select “OFF”. The “SEA” indicator goes out.
17
YSSO0L-VO/SGL-VO
