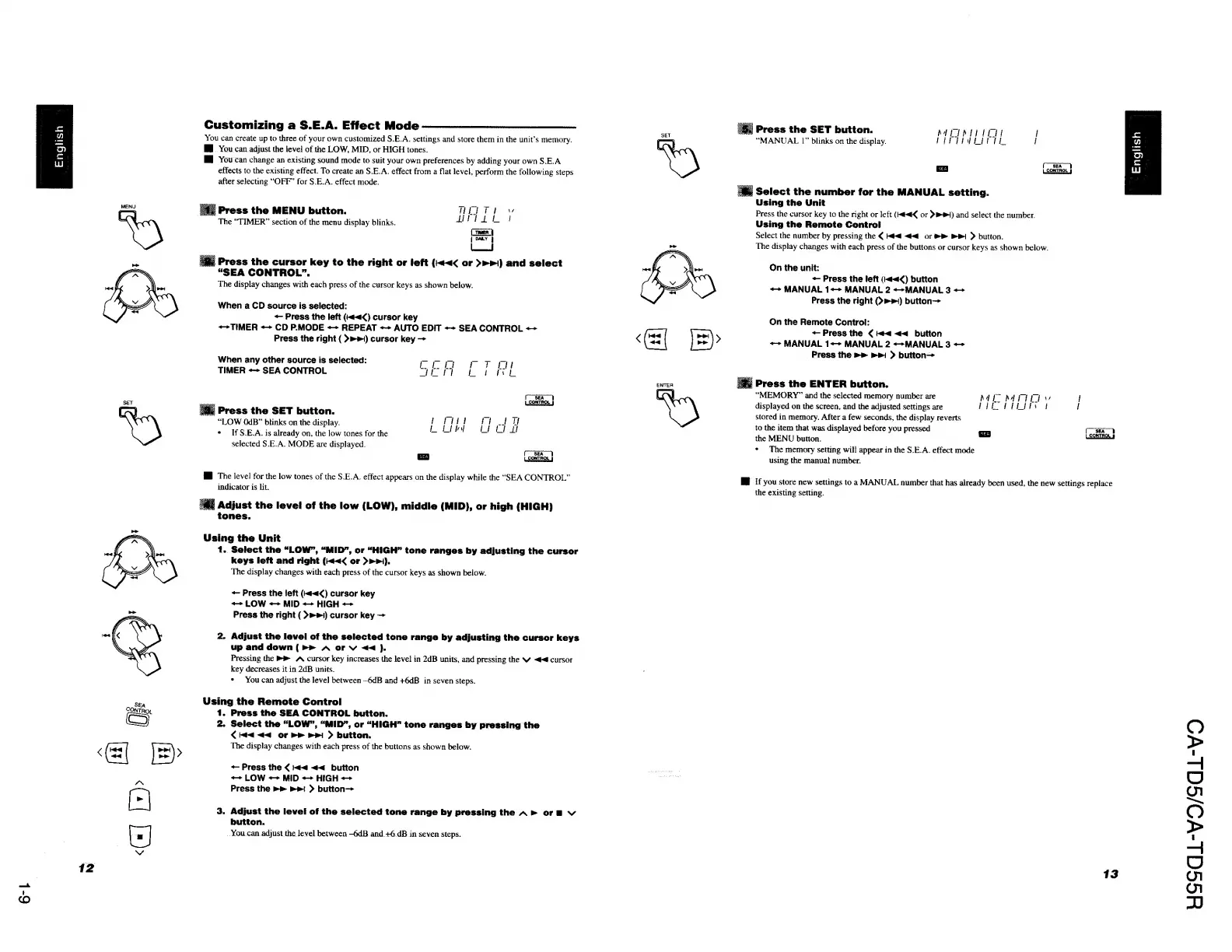

Customizing a S.E.A. Effect Mode
You can create up to three of your own customized S.E.A. settings and store them in the unit’s memory.
MM You can adjust the level of the LOW, MID, or HIGH tones.
MM You can change an existing sound mode to suit your own preferences by adding your own S.E.A
effects to the existing effect. To create an $.E.A. effect from a flat level, perform the following steps
after selecting “OFF” for S.E.A. effect mode.
Press the MENU button. ney T H v
The “TIMER” section of the menu display blinks. Aisa kt |
TRAEAI
j DALY J
Ld
Press the cursor key to the right or left («<< or >>») and select
“SEA CONTROL”.
The display changes with each press of the cursor keys as shown below.
When a CD source is selected:
+ Press the left (<<) cursor key
++TIMER «> CD P.MODE ++ REPEAT + AUTO EDIT <+ SEA CONTROL <
Press the right ( >») cursor key >
When any other source is selected:
ianeme!
as __|
|
~
Neem |
I /
TIMER «+ SEA CONTROL JE FI L oPee
Loaiition J
Press the SET button. 7
fT)
"
:
fs
i
i
i
i
!
|
au
it
LOW 0dB blinks on the display. Liim tical
* IfS.E.A. is already on, the low tones for the
selected S.E.A. MODE are displayed.
sea) { conthon }
WH The level for the low tones of the S.E.A. effect appears on the display while the “SEA CONTROL”
indicator is lit.
Adjust the level of the low (LOW), middle (MID), or high (HIGH)
tones.
Using the Unit
1.. Select the “LOW”, “MID”, or “HIGH” tone ranges by adjusting the cursor
keys left and right (<< or >>»),
The display changes with each press of the cursor keys as shown below.
+ Press the left (-«<<) cursor key
+ LOW <> MID «> HIGH —
Press the right ( >») cursor key —
2. Adjust the level of the selected tone range by adjusting the cursor keys
up and down (Pr A ory <4 }.
Pressing the > A cursor key increases the level in 2dB units, and pressing the VW ~<#€ cursor
key decreases it in 2dB units.
* You can adjust the level between —6dB and +6dB in seven steps,
Using the Remote Control
1. Press the SEA CONTROL button.
2. Select the “LOW”, “MID”, or “HIGH” tone ranges by pressing the
< kd <4 OF bP Pr > button.
The display changes with each press of the buttons as shown below.
+ Press the < #4 <4 button
++ LOW <— MID — HIGH —
Press the >> rr! > button—
3. Adjust the level of the selected tone range by pressing the A » or B Vv
button.
.. You.can adjust the level between -6dB. and +6.dB in seven steps.
Press the SET button. Ad]
“MANUAL |” blinks on the display. ! ~
tl
~~
=.
SET
conn |
Select the number for the MANUAL setting.
Using the Unit
Press the cursor key to the right or left (t<@€ or >) and select the number.
Using the Remote Control
Select the number by pressing the ¢ kd << or > mR] > button.
The display changes with each press of the buttons or cursor keys as shown below.
On the unit:
+ Press the left (<<) button
++ MANUAL 1++ MANUAL 2 «<>MANUAL 3 —
Press the right (>>) button—
On the Remote Control:
+ Press the < <4 << button
«+ MANUAL 1+ MANUAL 2 MANUAL 3 +>
_ Press the >» rr > button
Press the ENTER button.
“MEMORY” and the selected memory number are had pay \
displayed on the screen, and the adjusted settings are LiL GP ekifa fd f
stored in memory. After a few seconds, the display reverts
to the item that was displayed before you pressed
the MENU button.
* The memory setting will appear in the §.E.A. effect mode
using the manual number.
ENTEA
MM if you store new settings toa MANUAL number that has already been used, the new settings replace
the existing setting.
