JVC HR-XV1EK User Manual

11
Playback connection
The exact arrangement you use to interconnect various video and audio components to the DVD/VCR is
dependent on the model and features of each component. Check the Owner's Manual provided with each
component for the location of SCART socket.

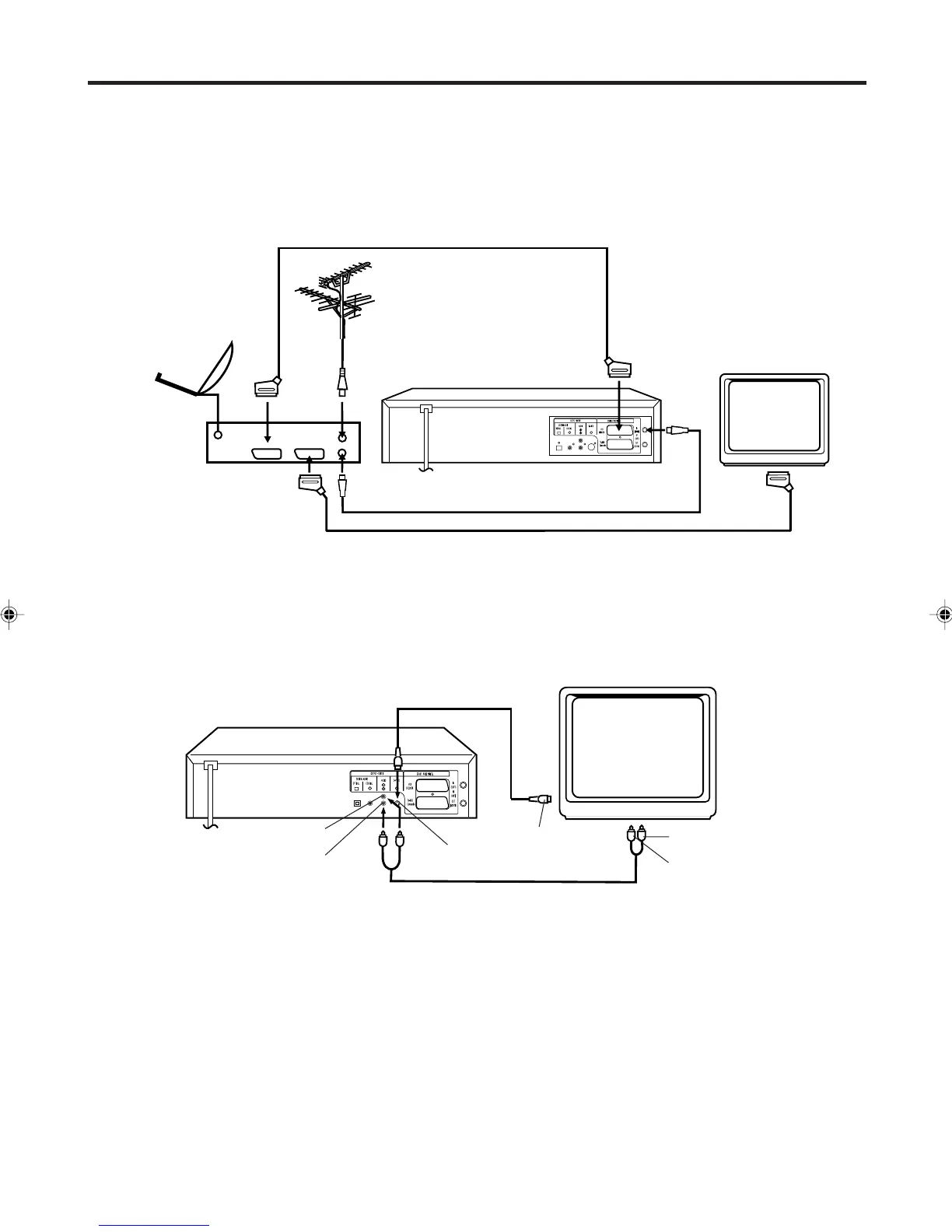

Connection to a Satellite Receiver
If a Satellite Receiver is used, we recommend the following configuration:
To record from Satellite Receiver press "AUX" on the remote control of DVD/VCR twice. "A2" will appear
on the front display. Select the desired TV-program at Satellite Receiver.
Connect to a TV with S-Video Output
SCART-cable (not supplied)
Satellite
Aerial
Satellite
Receiver
DVD/VCR
TV
SCART-cable (not supplied)
DVD/VCR
TV
S-Video Cord (not supplied)
To Audio (R) Input
To S-Video Input
To Audio (L) Input
S-Video Output
AUDIO Cord (not supplied)
Audio (L) Output
Audio (R) Output
Note:
• The S-VIDEO jack is useful only for DVD section.
• If you use the connection with S-Video Cord, set the “Video Out Select” (P.40) to “Video”.
2A77501B E(06-11) 5/30/02, 9:22 PM11

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
