JVC HR-XV1EK User Manual

18
Automatic tape eject
This VCR will automatically rewind the tape when the tape has ended. And when the tape is rewinded to its
beginning, the cassette tape will be ejected automatically.
Loading and Unloading a Cassette Tape

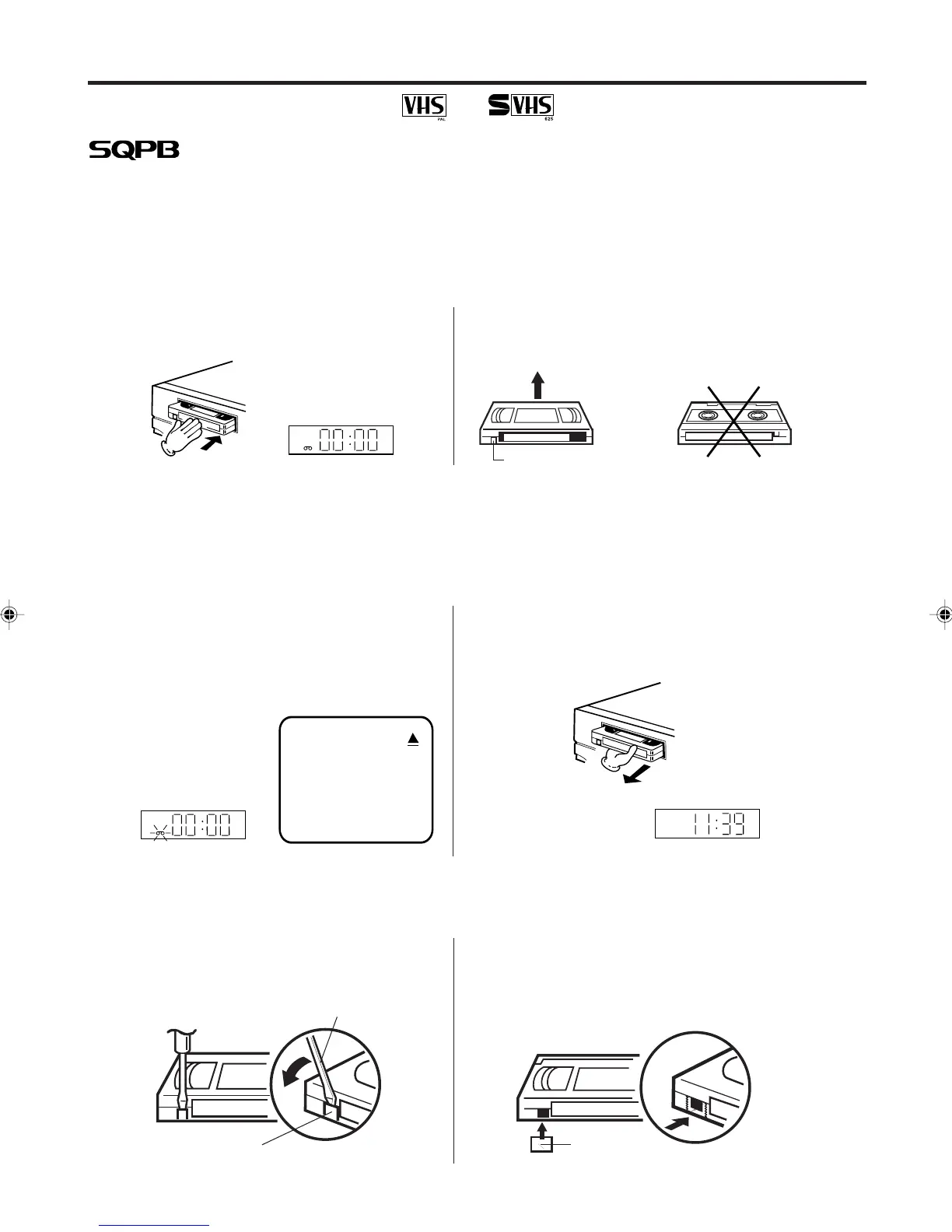

To prevent accidental erasure
Remove the erase prevention tab with a screwdriver.
Cover the hole with a piece of adhesive tape.
To record again
Screwdriver
Press EJECT on the unit. Even if a tape is being
played, press this button only once.
Remove the cassette tape.
Loading
Push the centre of the tape until it is automatically
inserted.
Insert the cassette tape with its labeled side facing up
and the erase prevention tab positioned at your left.
An inverted cassette tape cannot be inserted.
Automatic playback
When loading a cassette tape without an erase prevention tab, playback will start automatically.
Automatic power ON
When you insert a cassette tape the DVD/VCR power will turn ON automatically.
Unloading
12
Use only video cassette tapes marked and .
• Cassettes marked “VHS” (or “S-VHS”) can be used with this video cassette recorder. However, S-VHS recording
is not possible with this model.
• This model is equipped with SQPB (S-VHS QUASI PLAYBACK) that makes it possible to play back S-VHS
recordings with regular VHS resolution.
• HQ VHS is compatible with existing VHS equipment.
• SQPB playback can be seen only at PAL SP mode.
VCR
VCR
VCR
Erase prevention tab
Adhesive tape
Erase prevention tab
2A77501B E(18-23) 5/30/02, 9:22 PM18

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
