20
To return to the initial sharpness setting, press CANCEL
while the sharpness setting screen is appearing.
Note:
Playback sharpness
Adjust the sharpness of playback picture during playback.
During slow motion, still picture and picture search,
sharpness-adjusting is impossible.
TIMER REC SET
AUTO REPEAT
CHANNEL SETUP
SYSTEM SETUP
SELECT :
ENTER : OK
MENU
EXIT :
VCR SETUP
[OFF]
1
Start the playback of video tape.
Press SET UP MENU.
Press
or to select
VCR SETUP. Then press
OK.
Press or to select
PLAYBACK SHARP-
NESS. Then press OK.
4
Press or to adjust
the playback sharpness
to the level you reguire.
5
Press SET UP MENU repeatedly until the TV picture
appears on the screen.
2
3
AUDIO MIX
NICAM
VCR SETUP
SELECT
:
ENTER
:OK
MENU
EXIT
:
PLAYBACK SHARPNESS
[OFF]
[AUTO]
PLAYBACK SHARPNESS
+ÐÐ+ÐÐ+ÐÐ+ÐÐ
SET :
CANCEL
CENTRE :
MENU
EXIT :
2
softer sharper

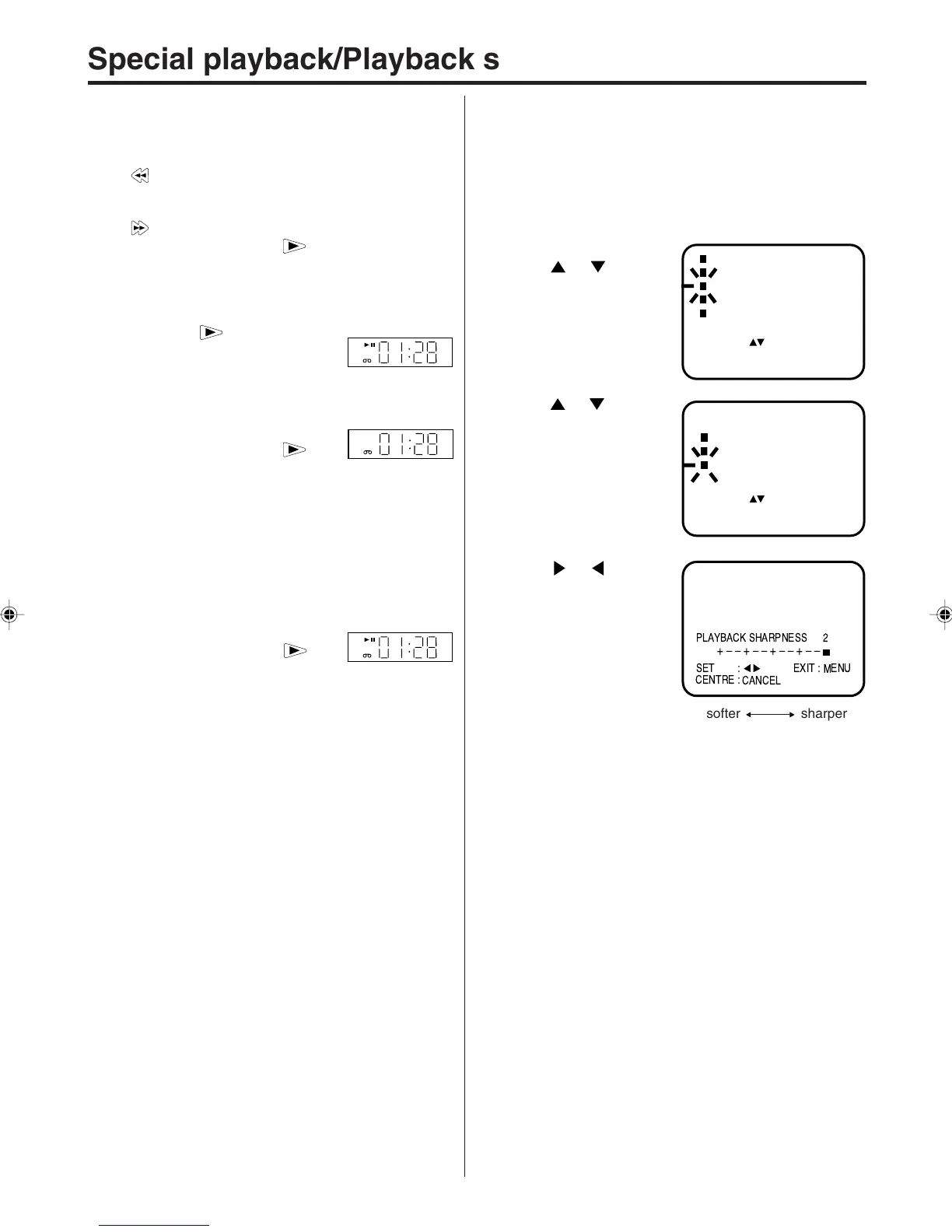

Special playback/Playback sharpness/Skip Search
Adjusting tracking condition
Whenever you insert a tape and start playback,
automatic tracking starts working and continuously
analyzes the signal to enable optimum picture quality
during playback.
Notes:
•
The audio output is muted during SPEED SEARCH,
STILL, FRAME ADVANCE and SLOW MOTION.
• During picture search mode there will be noise bars
which are caused by the system.
• The Special Playback will automatically change to
playback after approx. 5 minutes to protect the video
tape against excessive wear.
Automatic tracking adjustment
If automatic tracking cannot eliminate noises well during
playback, press SET + or SET – to eliminate the noises.
“MANUAL TR.” will appear. Press it briefly for a fine
adjustment, or press and hold for a coarse adjustment.
Manual tracking adjustment
To return to automatic tracking, press A. TRK.
Special playback
Slow Motion
During playback press SLOW.
You can change the slow speed by the additional
pressing of SLOW.
To return to playback: Press .
VCR
VCR
Reverse picture search function
Press x 1 or x 2 during the playback.
Picture Search
Forward picture search function
Press
x 1 or x 2 during the playback.
To return to playback: Press .
Still Picture
Press 4 during playback. To resume normal
playback: Press .
During playback, press 4 one by one: The picture
advances frame by frame.
To return to playback: Press
.
Frame by Frame picture
Slow tracking and vertical lock adjustment
If noise bars appear in the picture during slow motion,
press the SET + or – to reduce the noise bars.
If the still picture jitters excessively, press SET + or –
to stabilize the still picture.
VCR
Skip Search
Each time you press SKIP SEARCH while a tape is playing,
the unit will fast-forward ahead 30 seconds on the tape. You
may press the button up to six times in a row to move 180
seconds (three minutes) ahead.
For example: 1 press: Approx. 30 seconds of tape
2 presses: Approx. 60 seconds of tape
3 presses: Approx. 90 seconds of tape
2A77501B E(18-23) 5/30/02, 9:22 PM20

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
