JVC HR-XV1EK User Manual

6
SCART-socket
(for VCR/DECODER)
SCART PRISE PERITEL

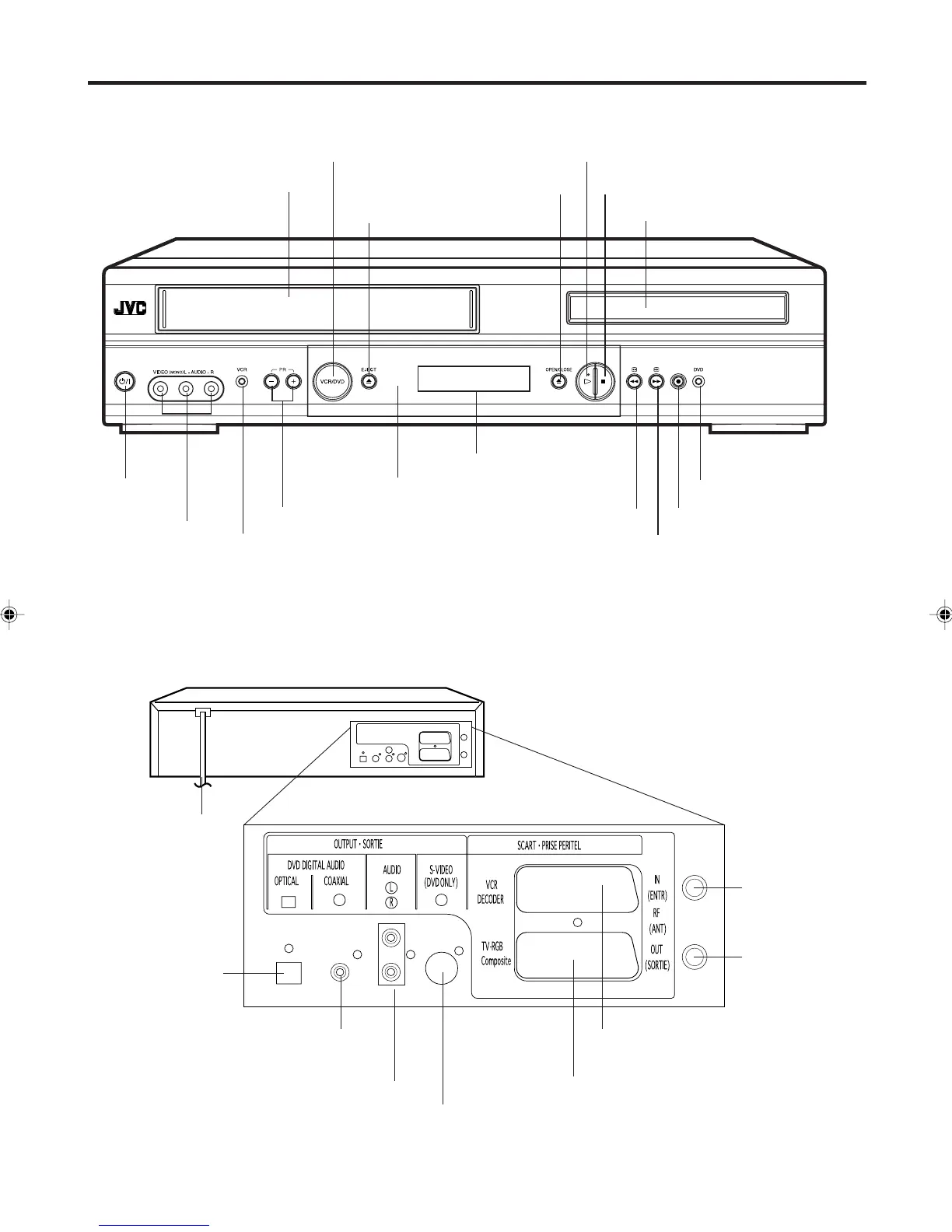

Parts and functions
Front
STOP button
Rear
AC power cord
PLAY button
OPEN/CLOSE button
Disc tray
Standby/On
button
DVD COAXIAL DIGITAL
AUDIO OUT jack
RF IN jack
PR +/– buttons
AUDIO (L/R)/
VIDEO IN jacks
FF (Fast Forward) button
Remote sensor
EJECT button
VCR indicator
VCR/DVD mode selector button
Cassette Loading Slot
REW (Rewind) button
REC button
DVD indicator
DVD AUDIO (L/R) OUT jacks
RF OUT jack
Display window
SCART-socket
(for TV-RGB/Composite)
DVD S-VIDEO OUT jack
DVD OPTICAL
DIGITAL AUDIO
OUT jack
2A77501B E(06-11) 5/30/02, 9:21 PM6

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
