1-10 (No.MB385)
3.1.3 Removing the tuner
(See Figs.8 and 9.)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN21 on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws G attaching the tuner to the rear panel. (See Fig.9.)
3.1.4 Removing the video board
(See Figs.8 and 9.)
• Remove the metal cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN410
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the screw H
attaching the video board to the rear panel. (See Fig.9.)

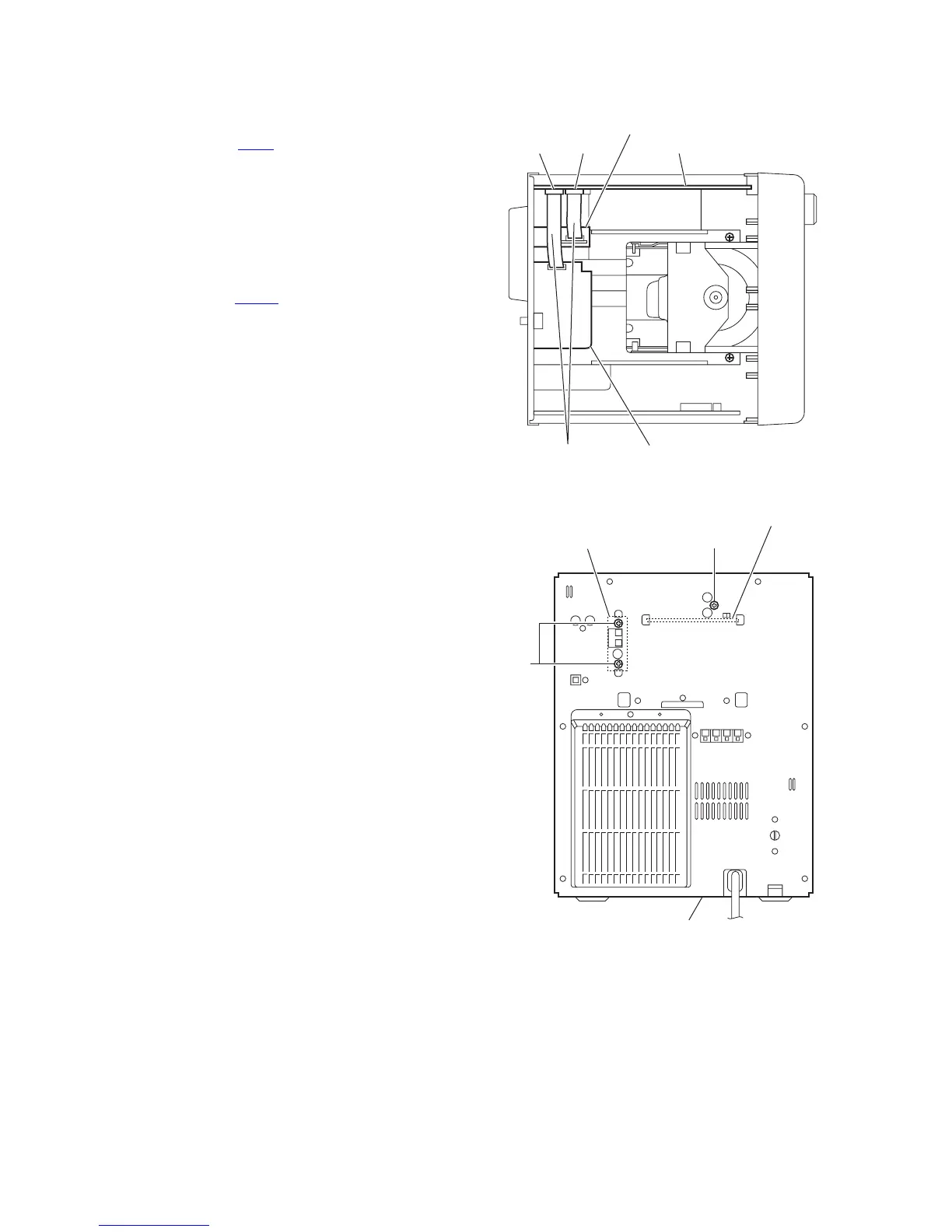

Fig.8
Fig.9
CN410 CN21 Main board
Video boardCard wires
Tuner
Rear panel
H
G
Tuner
Video board
