1-22 (No.MB385)
3.2.6 Attaching the pickup
(See Figs.4,6 to 9)
• See "3.2.5 Removing the pickup".
(1) Attach the shaft, SW actuator and lead spring to the pickup.
(See Fig.8.)
(2) Align the pickup to the section n of the traverse mechanism
assembly first and set the both ends of the shaft of the pick-
up in the sections (k, m) of the traverse mechanism assem-
bly. (See Fig.7.)
Note:
When attaching the shaft to the section m, attach it under
the torsion spring. (See Fig.7.)
(3) Attach the plate and thrust spring. (See Fig.6.)
(4) Remove solders from the short land sections d after con-
necting the card wire to the connector on the pickup. (See
Figs.4 and 6.)
(5) Turn the feed gear M in the direction of the arrow 1 to move
the pickup in the direction of the arrow 2. (See Fig.9.)

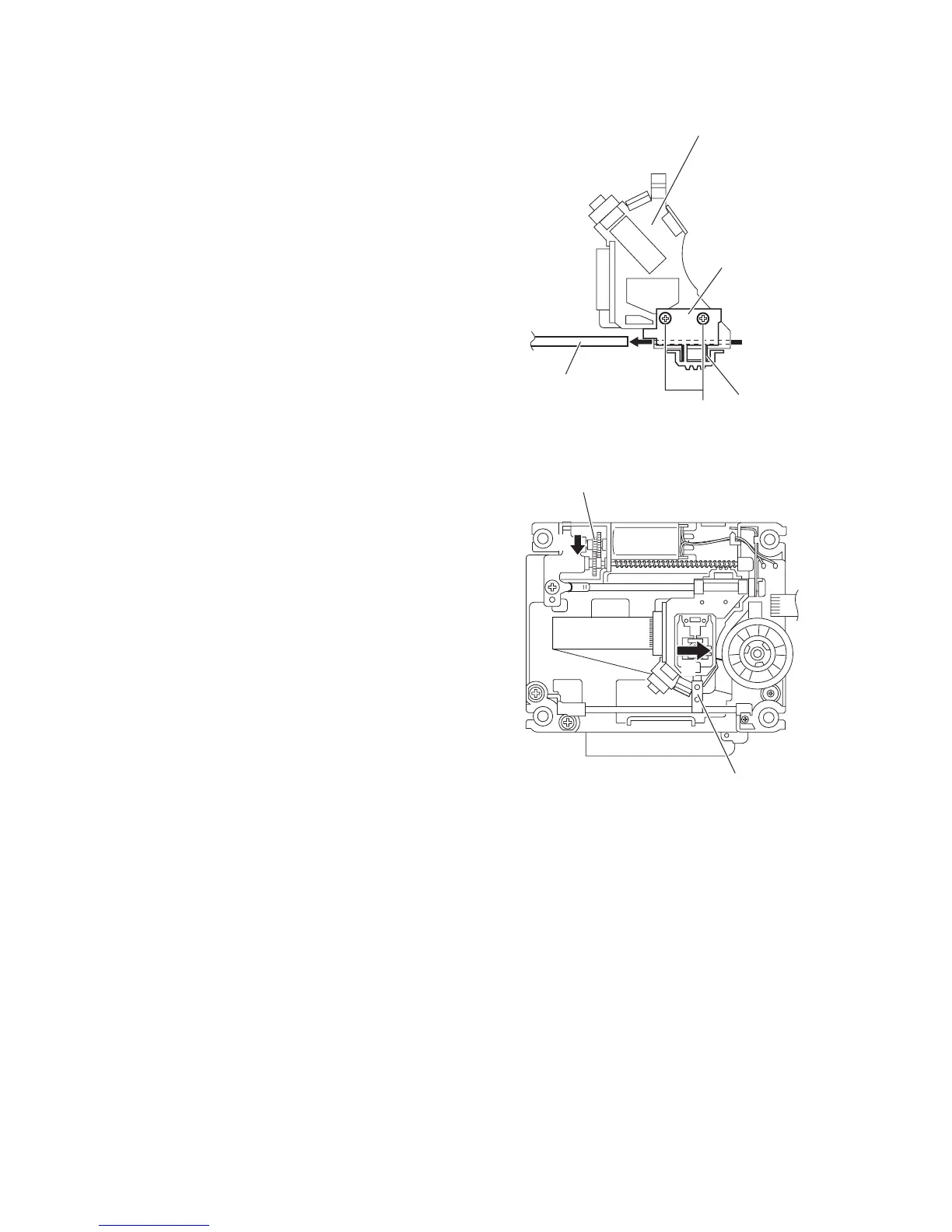

Fig.8
Fig.9
Pickup
SW actuator
Lead spring
F
Shaft
Feed gear M
Pickup
1
2
To Next Page
