3.2.3 Removing the traverse mechanism assembly
(See Figs.3)
(1) From the bottom side of the DVD mechanism assembly, re-
move the four screws C attaching the traverse mechanism
assembly.
(2) Take out the traverse mechanism assembly with the DVD
module board.

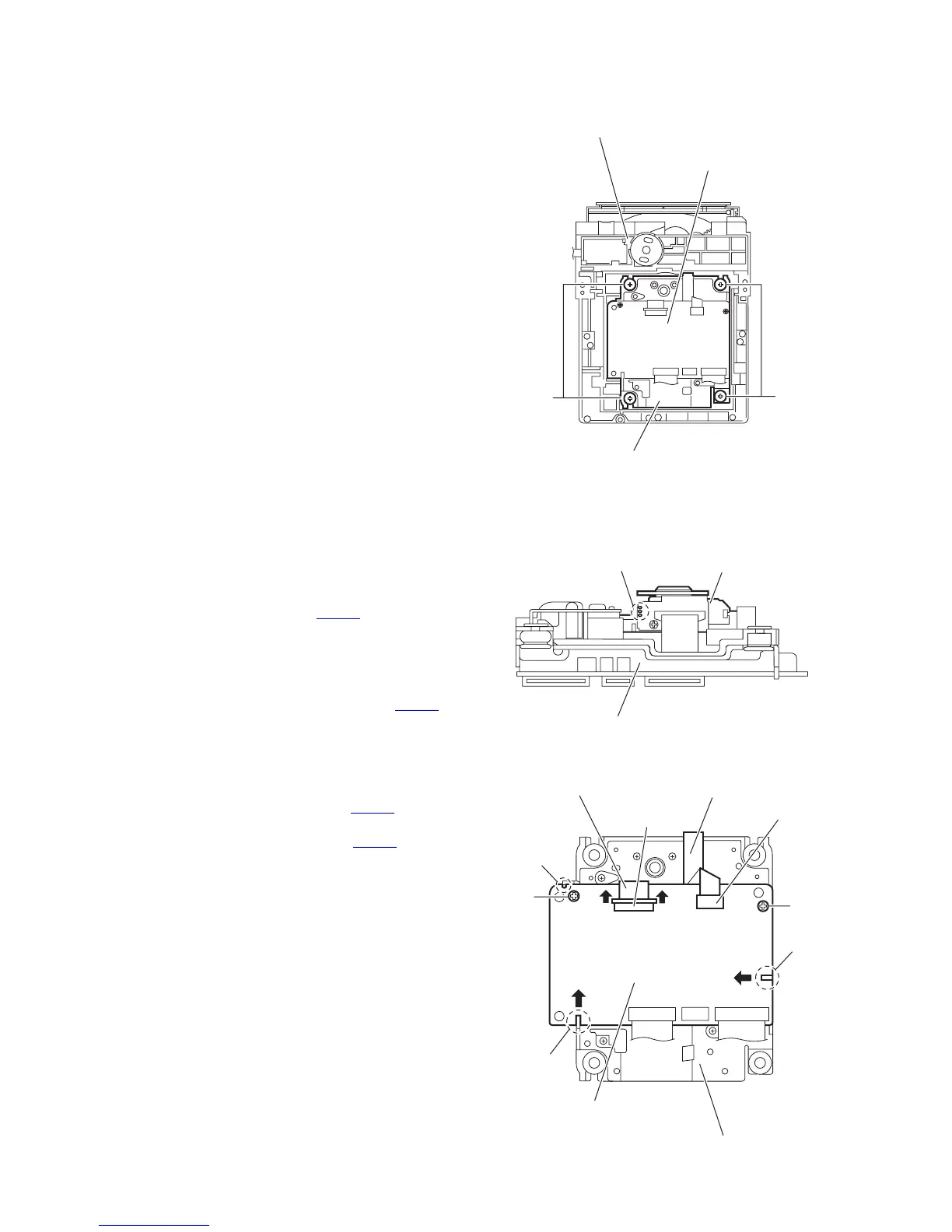

Fig.3
3.2.4 Removing the DVD module board
(See Figs.4 and 5)
• Remove the traverse mechanism assembly.
(1) From the side of the traverse mechanism assembly, solder
the short land sections d on the pickup. (See Fig.4.)
(2) From the bottom side of the traverse mechanism assem-
bly, release the lock of the connector CN101
on the DVD
module board in the direction of the arrow 1 and disconnect
the card wire. (See Fig.5.)
Caution:
• Solder the short land sections d on the pickup before
disconnecting the card wire from the connector CN101
on the DVD module board. If the card wire is discon-
nected without attaching solder, the pickup may be de-
stroyed by static electricity. (See Figs.4 and 5.)
• When attaching the DVD module board, be sure to re-
move solders from the short land sections d after con-
necting the card wire to the connector CN101
on the
DVD module board. (See Figs.4 and 5.)
(3) Disconnect the card wire from the connector CN201
on the
DVD module board. (See Fig.5.)
(4) Remove the two screws D attaching the DVD module
board. (See Fig.5.)
(5) Remove the DVD module board from the projection e in an
upward direction and remove the engagement section g in
the direction 3 while removing the engagement section f in
the direction of the arrow 2. (See Fig.5.)
Fig.4
Fig.5
DVD mechanism assembly
Traverse mechanism assembly
DVD module board
C
C
Traverse mechanism assembly
Pickup
d
Card wire
Card wire
DVD module board
Traverse mechanism assembly
CN101
CN201
2
3
D
D
g
f
e
11
