JVC MX-JE3 User Manual

1-28 (No.MB385)
3.3.7 Removing the R/P head block
(See Fig.10)
(1) From the front side of the cassette mechanism assembly,
release the claw m in the direction of the arrow 1 and pull
out the pinch roller L in an upward direction.
(2) Release the claw n in the direction of the arrow 2 and pull
out the pinch roller R in an upward direction.
(3) From the bottom side of the cassette mechanism assem-
bly, remove the screw C attaching the R/P head board.
(4) From the front side of the cassette mechanism assembly,
remove the two screws D attaching the R/P head.
(5) Take out the R/P head block (R/P head and R/P head
board) from the cassette mechanism assembly.

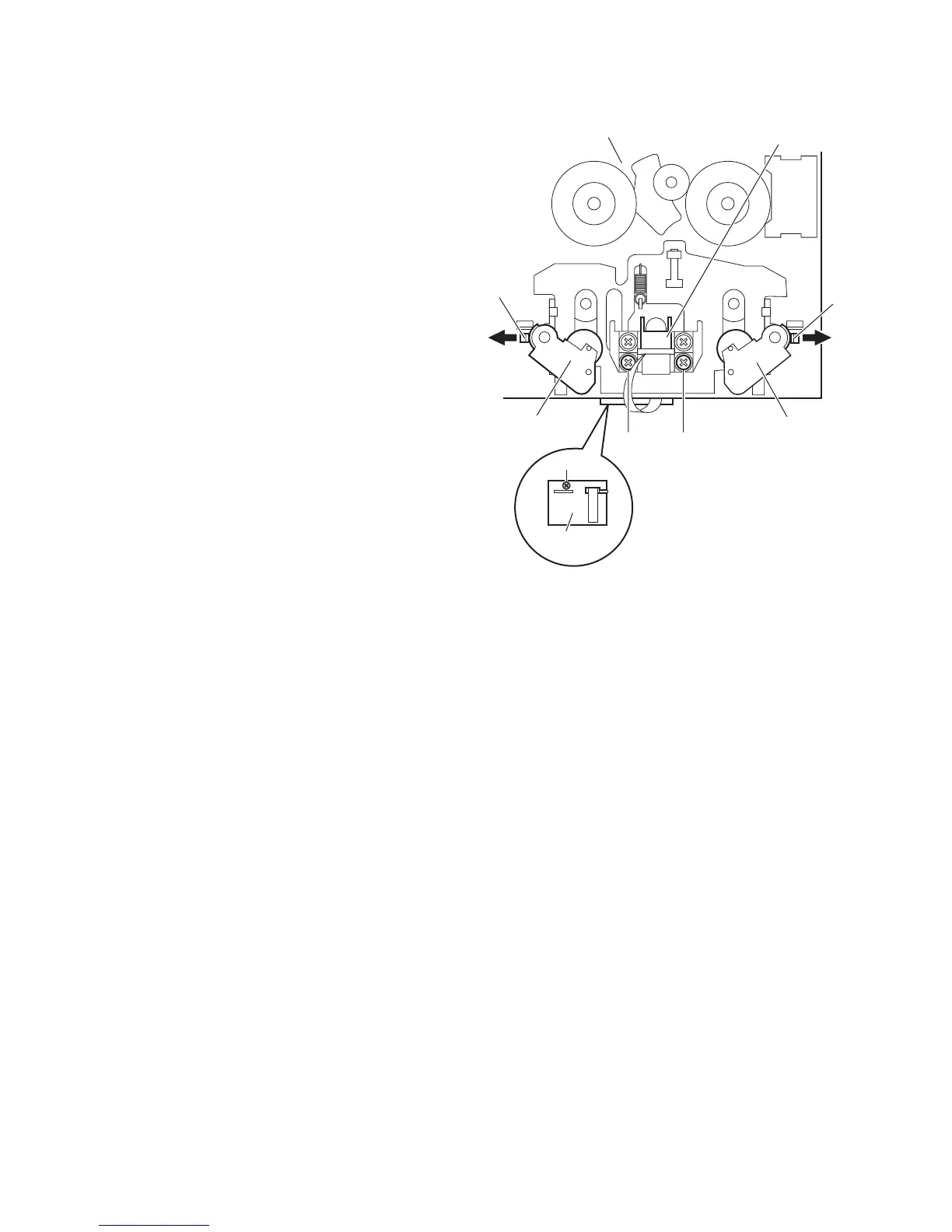

Fig.10
D
C
D
Pinch roller R
n
m
R/P head
Cassette mechanism assembly
Pinch roller L
R/P head
board
21
