1-22 (No.MB368)

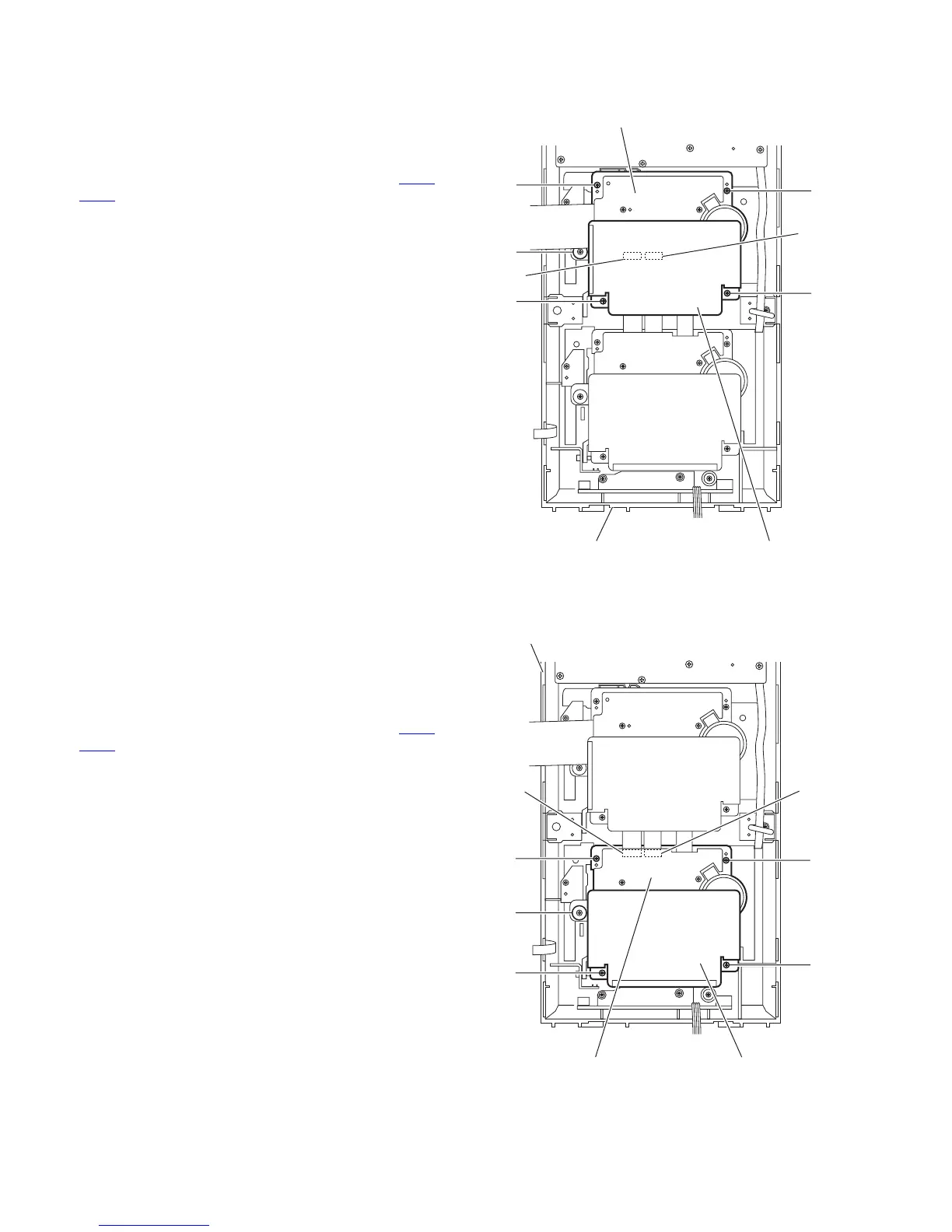

3.1.17 Removing the cassette A mechanism assembly
(See Fig.24)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
four screws W and screw X attaching the cassette A mech-
anism assembly.
(2) Disconnect the card wires from the connectors (CN46
,
CN47) on the cassette A mechanism assembly
(3) Take out the cassette A mechanism assembly from the
front panel assembly.
Reference:
Remove the trans shield as required.
Fig.24
3.1.18 Removing the cassette B mechanism assembly
(See Fig.25)
• Remove the metal cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
four screws W and screw X attaching the cassette B mech-
anism assembly.
(2) Take out the cassette B mechanism assembly from the
front panel assembly.
(3) Disconnect the card wires from the connectors (CN33
,
CN34) on the cassette B mechanism assembly
Reference:
Remove the trans shield as required.
Fig.25
Cassette A mechanism assembly
Front panel assembly Trans shield
W
W
W
W
CN47
CN46
X
Cassette B mechanism assembly
Front panel assembly
Trans shield
W
W
W
W
CN34
CN33
X
