3.3.2 Removing the head amplifier board
(See Fig.4)
(1) Turn over the cassette mechanism assembly and remove
the three screws A attaching the head amplifier board.
(2) (2) Disconnect the flexible wire from connector CN8 on the
head amplifier board.
(3) Disconnect connector CN41
of the head amplifier board
from connector CN1 on the cassette switch board.
Reference:
If necessary, unsolder the 4-pin wire soldered to the main mo-
tor.
3.3.3 Removing the main motor
(See Fig.4 to 7)
(1) Remove the two screws B.
(2) Half raise the motor and remove the capstan belt from the
motor pulley.
Attention:
Be careful to keep the capstan belt from grease. When reas-
sembling, refer to Fig.6 and 7 for attaching the capstan belt.

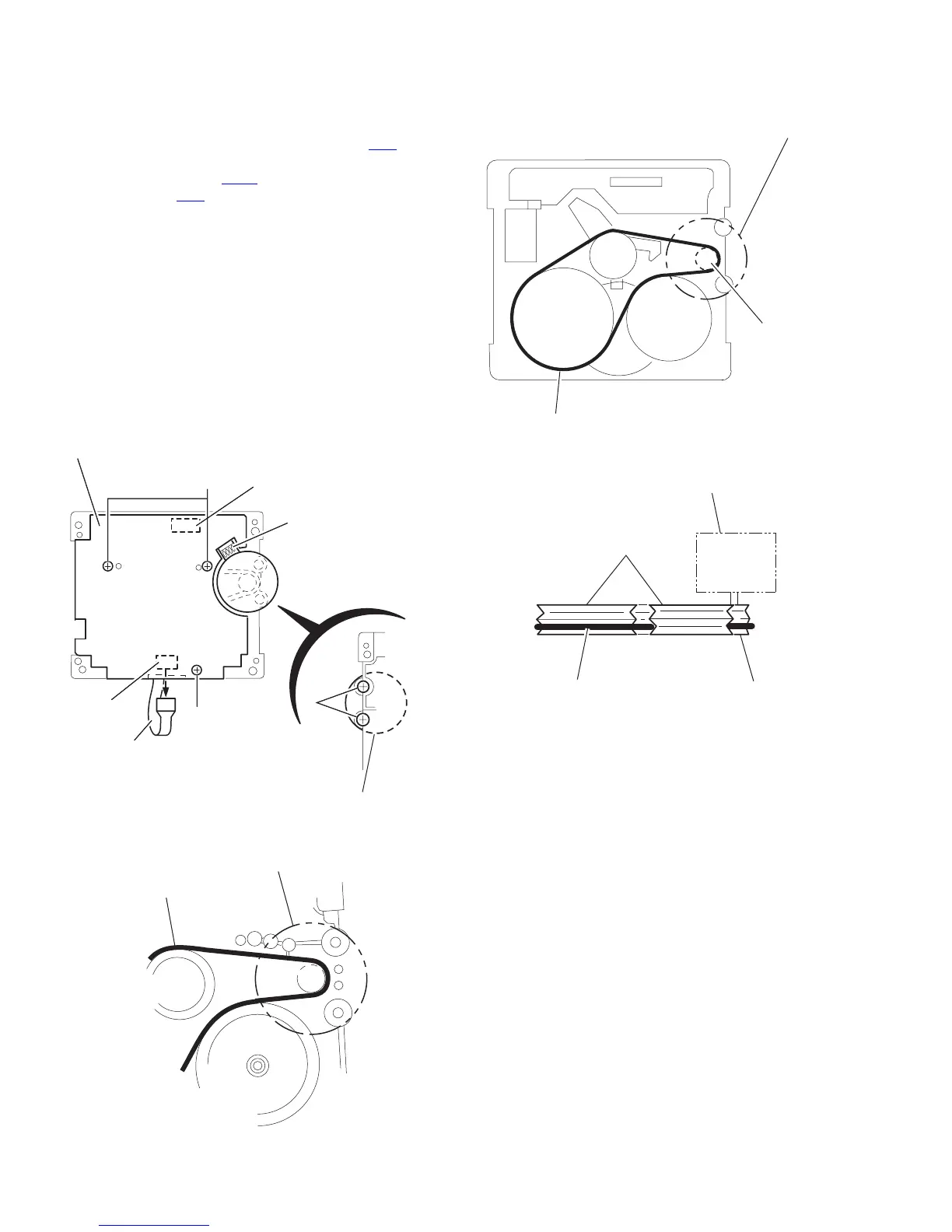

Fig.4
Fig.5
Fig.6
Fig.7
Head amplifier board
A
A
CN48
CN41
4pin wire
Flexible wire
Main motor assembly
A
B
Main motor assembly
Capstan belt
Main motor assembly
Capstan belt
Motor pulley
Main motor assembly
Capstan belt
Fly wheel
Motor pulley
