7
XM Mini-Tuner system—TH-D60 only
For better reception, install the XM Mini-Tuner Home
Dock antenna in the following location:
– Near a south-facing window with aiming the
antenna at the sky directly
– Where “Channel 1” can be heard clearly
– Where the Antenna Aiming display shows a value
higher than 0 for either satellite or terrestrial signal
strength ( 25)
AM and FM antennas
Make sure the antenna conductors do not touch any
other terminals, connecting cords or power cords.
Connect the TV to the appropriate video out jacks to view
the playback picture.
The picture quality order is as follows:
HDMI > Component video > S-video > Composite
video
Make the following settings after connecting the TV:
– Scanning mode ( 14)
– MONITOR TYPE ( 23)
Connection using the HDMI terminal
You can make the following settings for the TV when
the HDMI connection is used:
– HDMI DVI COLOR ( 23)
– HDMI OUT ( 23)
– HDMI AUDIO OUT ( 24)
–DOWN MIX ( 24)*
Use a certified HDMI cable, which has the HDMI
logo.
You can use a monitor with a DVI terminal by
connecting with a DVI-HDMI conversion cable.
When you play HDCP (High-Bandwidth Digital
Content Protection) source, allow a few seconds for
the sound and picture to be transmitted to the
speakers and TV while the confirmation process is
completed.
On some TV, no sound may come out during
playback of sources such as DVD Audio even when
the HDMI AUDIO OUT setting is “ON” ( 24).
*
This setting is available only when the speaker position
mode is set to “S.SPK F” ( 12).

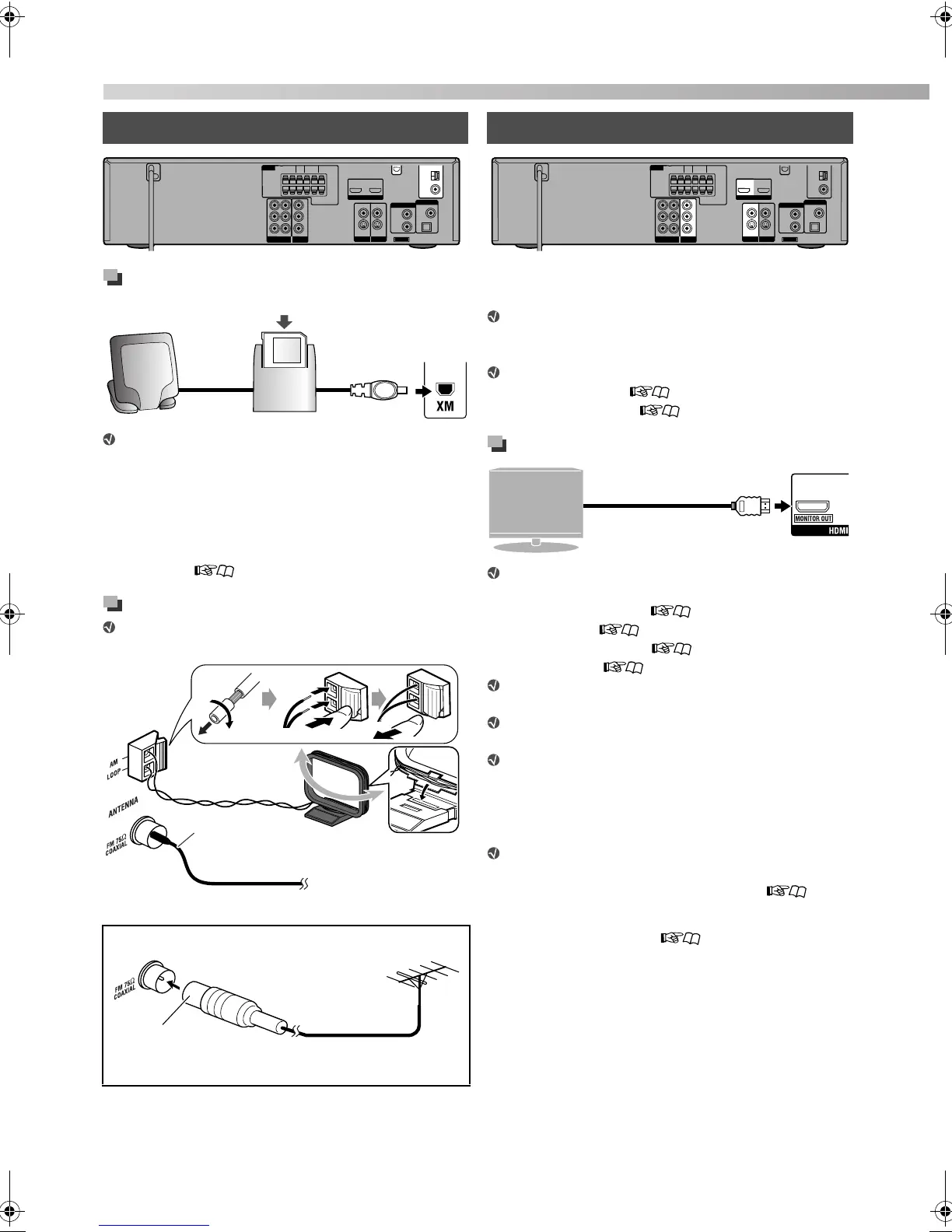

Connecting the antennas
For better FM reception
XM Mini-Tuner
(not supplied)
XM Mini-Tuner Home Dock
antenna (not supplied)
Extend it horizontally.
FM antenna
(supplied)
AM loop antenna
(supplied)
Turn it until the best
reception is obtained.
FM outdoor antenna
(not supplied)
Standard type (75 Ω
coaxial) connector
FM outdoor antenna cord
(not supplied)
Connecting a TV
TV
From HDMI input
terminal
HDMI cable (not supplied)
Getting started
TH-D6D5D4[JC]EN.book Page 7 Friday, February 23, 2007 7:47 PM
