If anything is missing, contact your dealer immediately.
• Remote control (x 1)
• Batteries (x 2)
• FM antenna (x 1)
• AM loop antenna (x 1)
• Composite video cord (x 1)
• Docking station for iPod (x 1)
• Speaker cords: 3 m (10 ft) (x 4), 8 m (26.3 ft) (x 2)
• Feet for surround speakers (x 8)
• Screws: M5 x 85 mm (3-3/8 inches) (x 6)
Do not expose batteries to heat or flame.
If the range or effectiveness of the remote control
decreases, replace both batteries.
If you connect speakers other than those supplied for
the System, use speakers of the same speaker
impedance (SPEAKER IMPEDANCE) indicated on
the rear of the center unit.
DO NOT connect more than one speaker to one
speaker terminal.

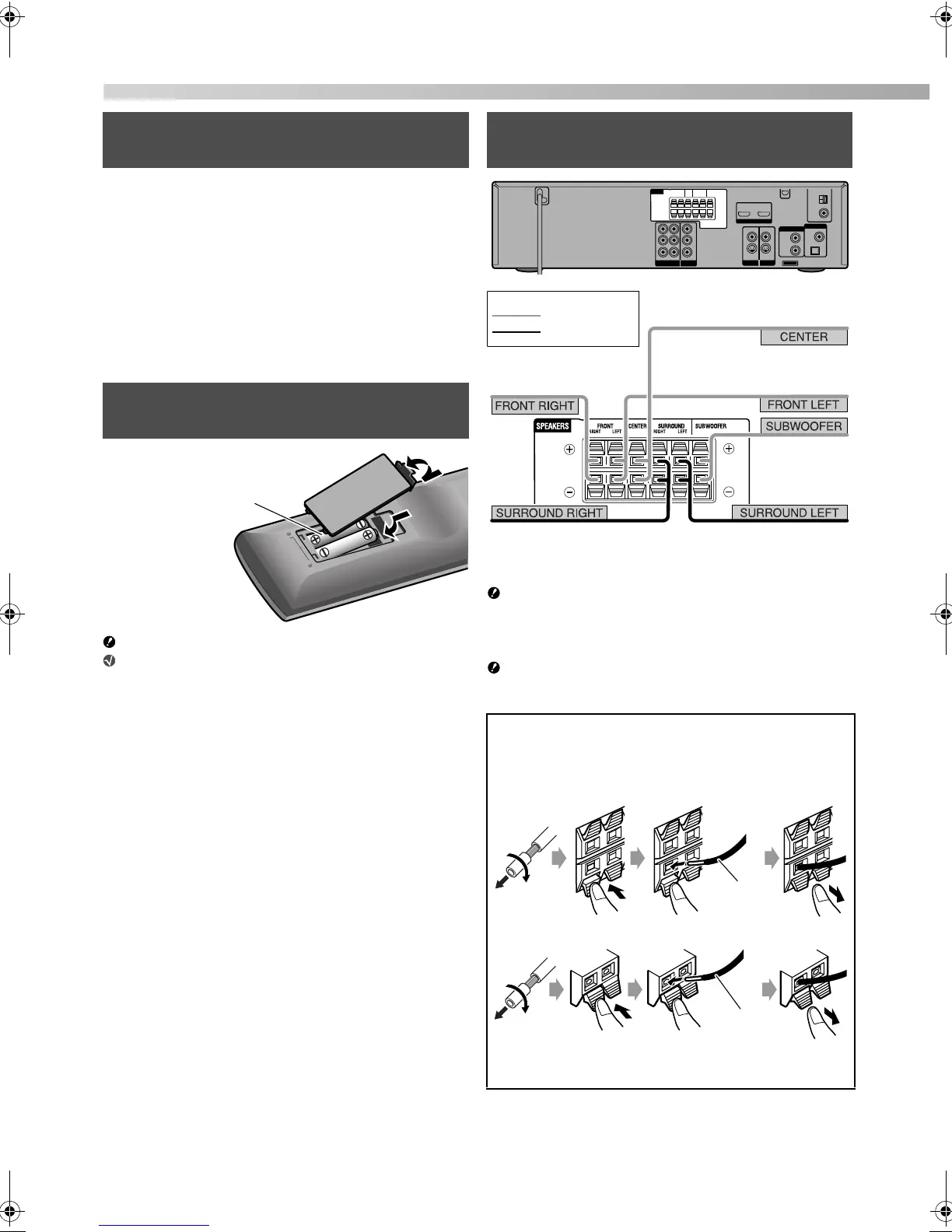

Checking the supplied
accessories
Putting batteries into the remote
control
R03 (UM-4)/AAA (24F) type
dry-cell batteries (supplied)
Connecting the speakers and
subwoofer
Connecting the speaker cords
Connect the speaker cords both to the center unit and to
each speaker.
On the center unit:
On the speaker:
• Connect the black cords to the r terminals.
• Connect the white cords to the q terminals.
Speaker cords:
: 3 m (10 ft)
: 8 m (26.3 ft)
To front right speaker
(SP-THD6F)
To center speake
(SP-THD6C)
To front left speaker
(SP-THD6F)
To subwoofe
(SP-THD60WMW)
To surround left speaker
(SP-THD6S)
To surround right speaker
(SP-THD6S)
Center unit
Speaker cord
Speaker cord
Getting started
