3 Description of the module
The CPU module is an intelligent master module designed for medium-range
performance within the KEBA automation system.
3.1 Front view

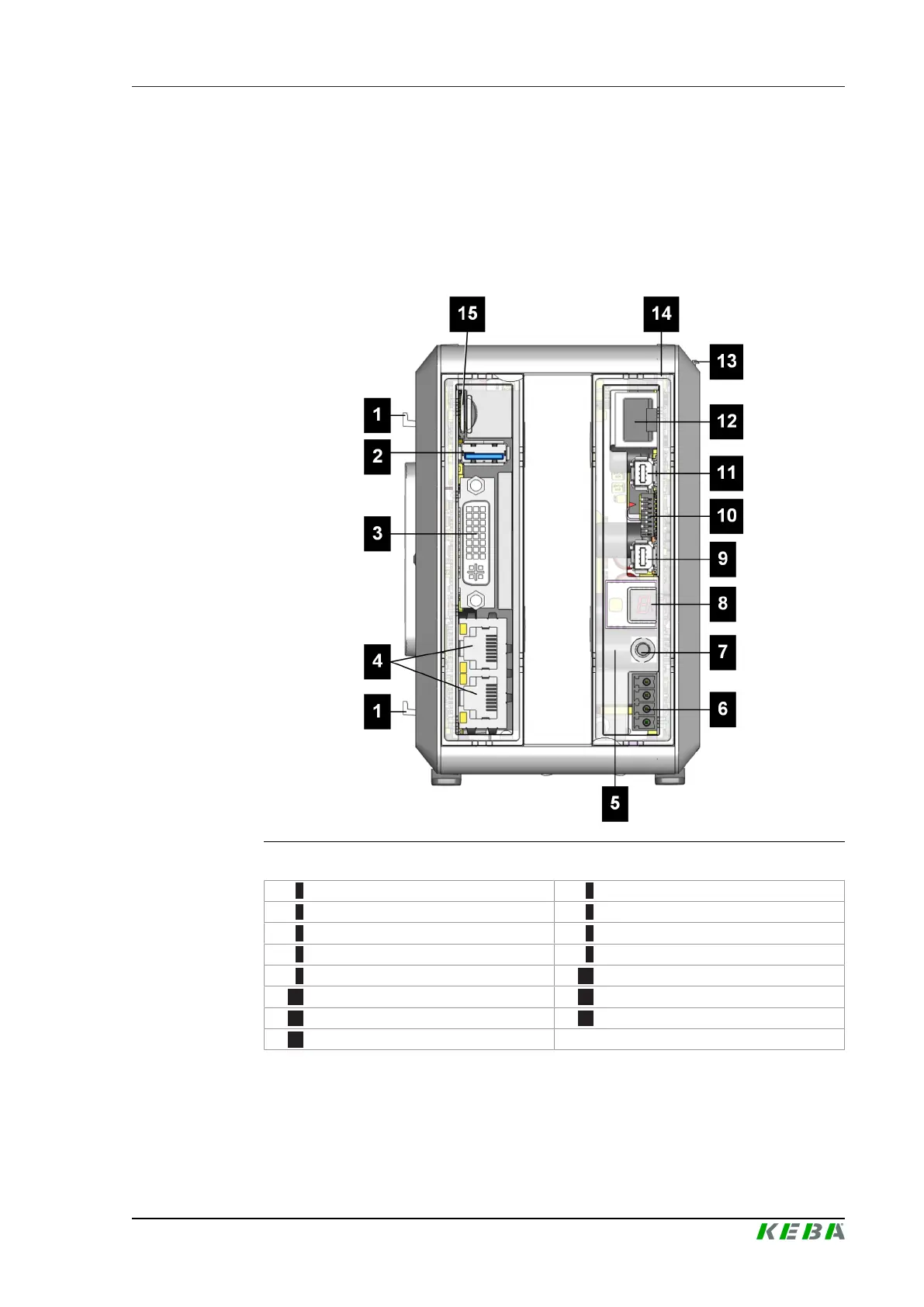

Fig.3-1: Front view
1 ... Locking hooks, expansion module 2 ... USB interface
3 ... DVI interface 4 ... Ethernet interfaces
5 ... Serial number and DataMatrix code 6 ... Power supply
7 ... Control button 8 ... Diagnosis display
9 ... Serial interface 10 ... DIP switch
11 ... CAN interface 12 ... EtherCAT interface
13 ... Lock of the input/output module 14 ... Status LED
15 ... Micro SD card slot
