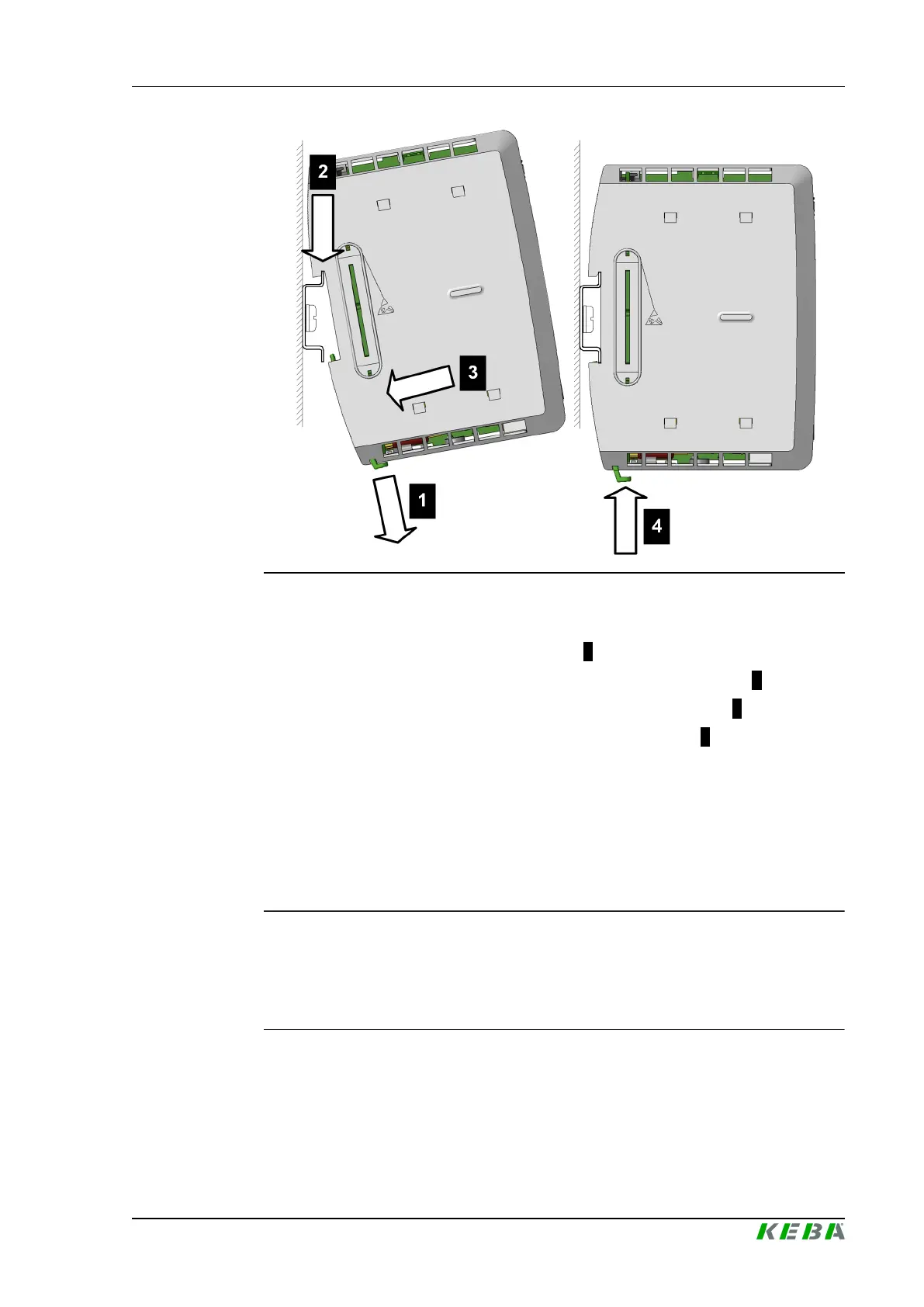

Fig.5-13: Installation on a mounting rail
To install the module on a mounting rail, proceed as follows:
1) Release all of the mounting rail locks (1).
2) Slightly tilt the module and put it on the mounting rail fixture (2).
3) Press the lower half of the module onto the mounting rail (3).
4) Lock all of the mounting rail locks one after the other (4).
5) Use the end brackets to secure the module against slipping or loosening
due to vibration, see 5.3 End bracket.
The module is installed on the mounting rail.
5.6 Removing the module
Caution
Risk of damaging components during installation work under voltage!
Before dismantling, disconnect the power supply and detach all cable con-
nections.
