CP 503/A, CP 505/A,D,K, CP 507/
A,C
Displays and operating elements
Project engineering manual V1.06
24
© KEBA 2021
4.3 Control key (CTRL)
The CTRL key is located next to the 7-segment-display on the right and
serves as simple operating element on the module. With this key the CP
50x/x can be switched into different operating modes and/or different com-
mands can be issued.
● Distriction is made between short (< 0.5 s), long (> 0.5 s, <10 s) and
very long key operations (>10 s).
● Short keystrokes allow the user to switch and selected between the indi-
vidual commands, while these commands are displayed by flashing in
the 7-segment display. Once the initial status has been reached again
this will be indicated normally again.
● Long keystrokes are used to execute a command and to change into the
new status.
● If the CTRL key is held pressed longer than 10 seconds, a hardware re-
set of the module is triggered.
4.4 Ethernet Gbit Status LEDs
The Ethernet sockets (RJ45) each have one Link/Activity LED and one
Speed LED.

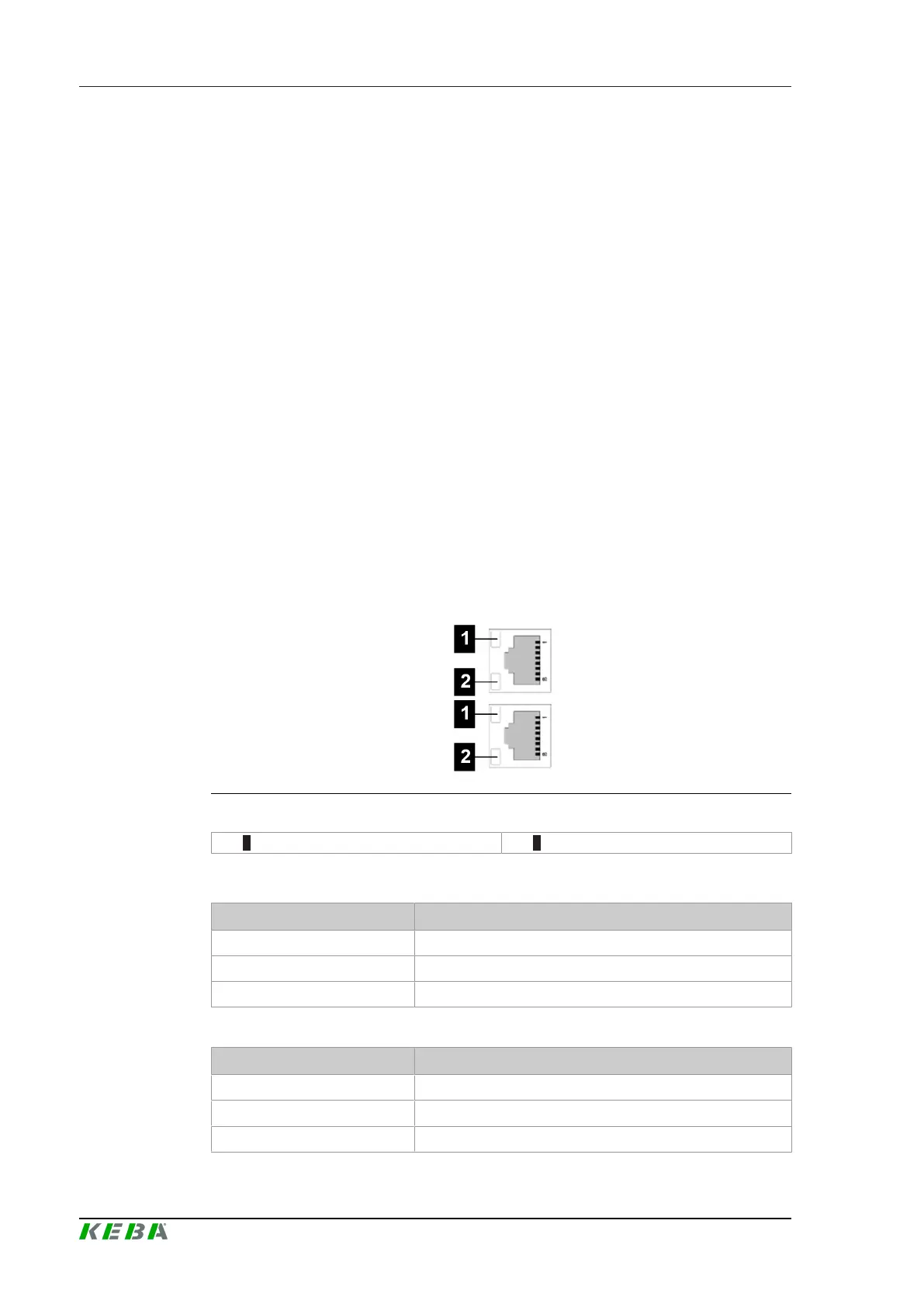

Fig.4-9: Position of the Gbit status LEDs
1 ... Speed LED 2 ... Link/Activity LED
Speed LED
Indication Meaning
Dark 10 Mbit/s network speed
Green 100 Mbit/s network speed
Orange 1 Gbit/s network speed
Link/Activity LED
Indication Meaning
Dark No connection or no power supply
Green flashing Transmission of data
Green Ethernet connection established
