ANALOG CONTROL
99
Analog Remote Control Overview
The 2260B power supply series have a number of analog control
options. The Analog Control connectors are used to control output
voltage and current using external voltage or resistance. The power
supply output and power switch can also be controlled using
external switches.
Analog Control connector overview → from page 99
External voltage control of voltage output → from page 101
External voltage control of current output → from page 104
External resistance control of voltage output → from page 106
External resistance control of current output → from page 108
External control of output → from page 110
External control of the power switch → from page 113

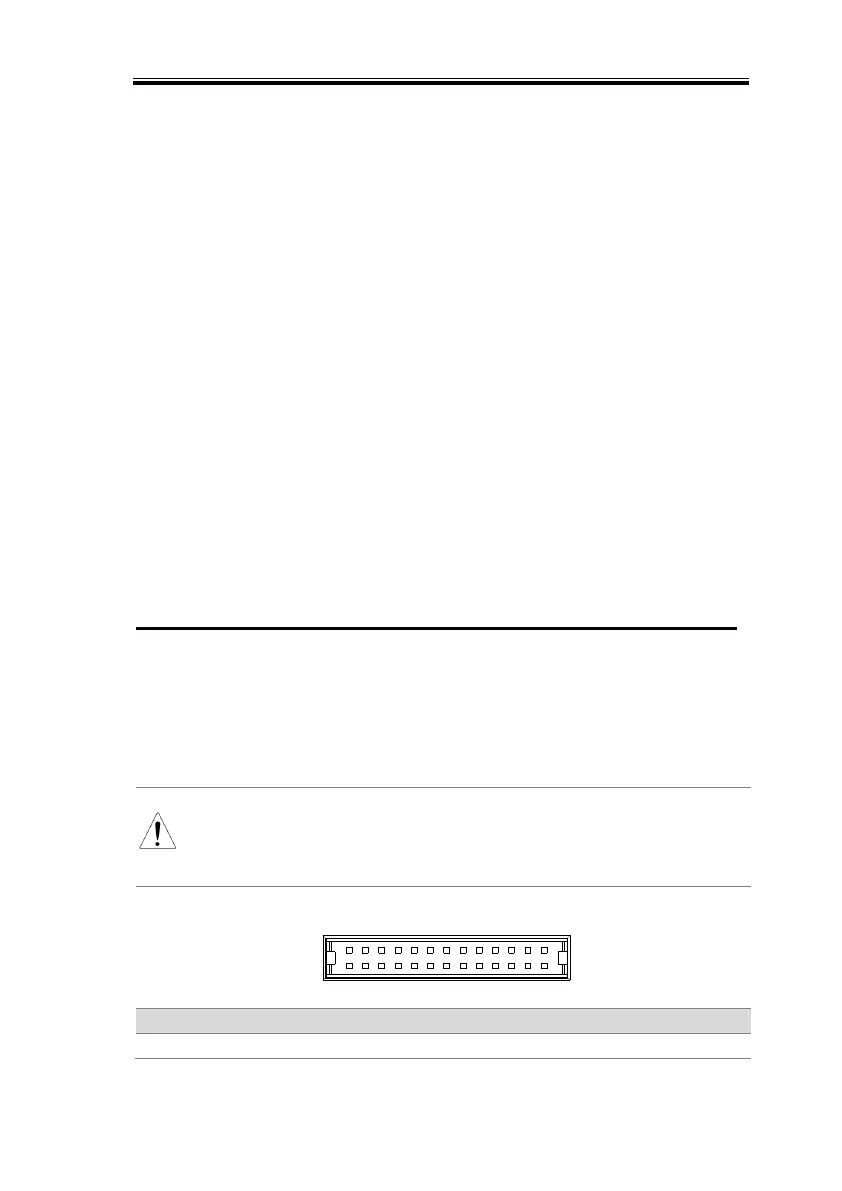

Analog Control Connector Overview
The Analog Control Connector is a standard
Mil 26 pin connector (OMRON XG4 IDC plug).
The connector is used for all analog remote
control. The pins used determine what remote
control mode is used.
To prevent electric shock, ensure that the cover for
the Analog Control Connector is used when the
connector is not in use.
Used when operating 2 or more units in parallel.
To Next Page
