5. Connect the master and slave unit in parallel as
shown above.
6. Reattach the terminal covers.
Page 36
Note
Ensure the load cables have sufficient
current capacity.
Page 33
Re-attach the protection dummy plug when not in
use.

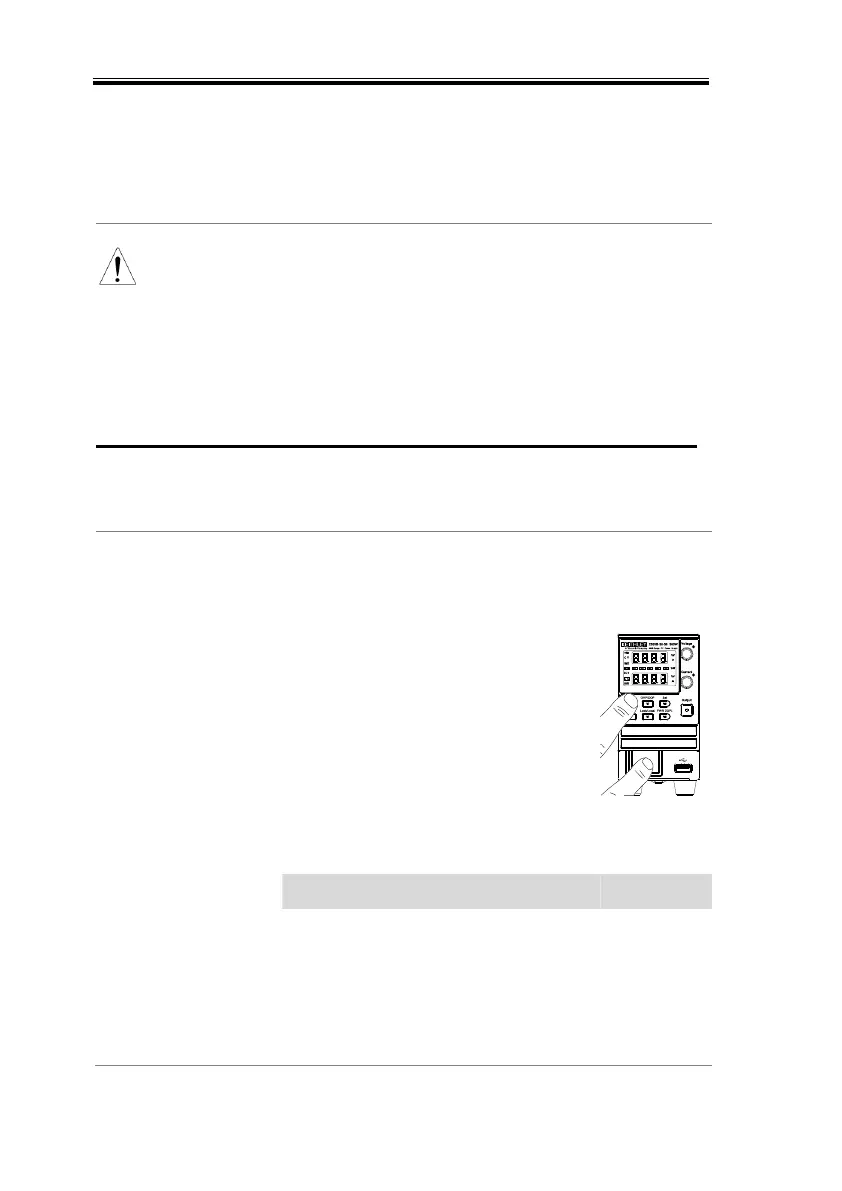

Master-Slave Parallel Operation
Master-Slave
Configuration
Before using the power supplies in parallel, the
master and slave units need to be configured.
Steps
1. Configure the OVP and OCP
settings for the master unit.
Page 43
2. For each unit, hold the Function
key while turning the power on to
enter the power on configuration
settings.
3. Configure F-93 (Master/Slave)
setting for each master/slave unit.
Page 96
Unit
F-93
Master (with 1 slave in parallel)
1
Master (with 2 slaves in parallel)
2
Slave unit (parallel slave)
3
4. Cycle the power on the units (reset the power).
