4: Making basic front-panel measurements Model DMM7510 7½ Digit Multimeter
4-2 DMM7510-900-01 Rev. B / May 2015
Device connections
Connect the Model DMM7510 to the resistor in a 2-wire (local sense) configuration. In this
configuration, the device is connected between the INPUT HI and INPUT LO terminals.
To make the connections:
1. Power off the Model DMM7510.
2. Connect the test leads to the front-panel INPUT HI and INPUT LO terminals, as shown in the
following figure.
3. Connect the test leads to the resistor.

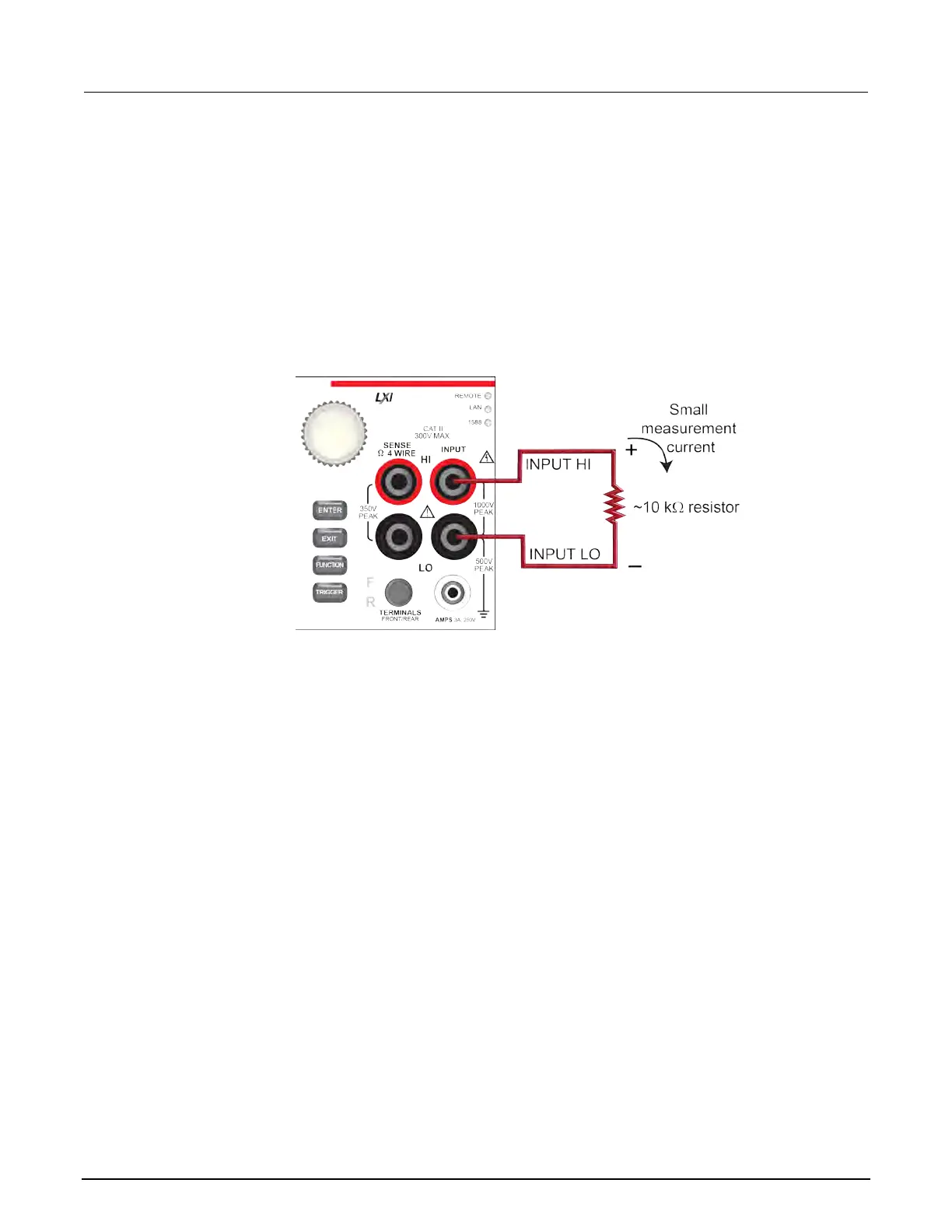

Figure 21: Model DMM7510 front-panel 2-wire resistance measurement
