Model DMM7510

7½ Digit Multimeter User's Manual Section 4: Making basic front-

panel measurements

DMM7510-900-01 Rev. B / May 2015 4-3

Basic front-panel measurements

The following procedures show you how to make a measurement, access settings for the

measurement, and view measurement data in a reading buffer.

You can make measurements continuously or manually. When you make continuous measurements,

the instrument makes measurements as quickly as possible. When you make manual measurements,

the instrument makes measurements when you press the TRIGGER key.

To make a measurement from the front panel:

1. Press the POWER button on the front panel to turn on the instrument.

2. From the Functions swipe screen, select 2W

Ω

. Measurements begin to display on the top half of

the Home screen.

3. If measurements are not displayed, press the TRIGGER key for a few seconds and select

Continuous Measurement.

Change measure settings:

1. Press the MENU key.

2. Under Measure, select Settings.

3. Select Display Digits.

4. Select 3.5 Digits.

5. Press the HOME key. The measurement now shows 3½ digits.

To make a single measurement:

1. Press the front-panel TRIGGER key for a few seconds.

2. Select Manual Trigger Mode.

3. Press the TRIGGER key to initiate a single reading using the selected measure function.

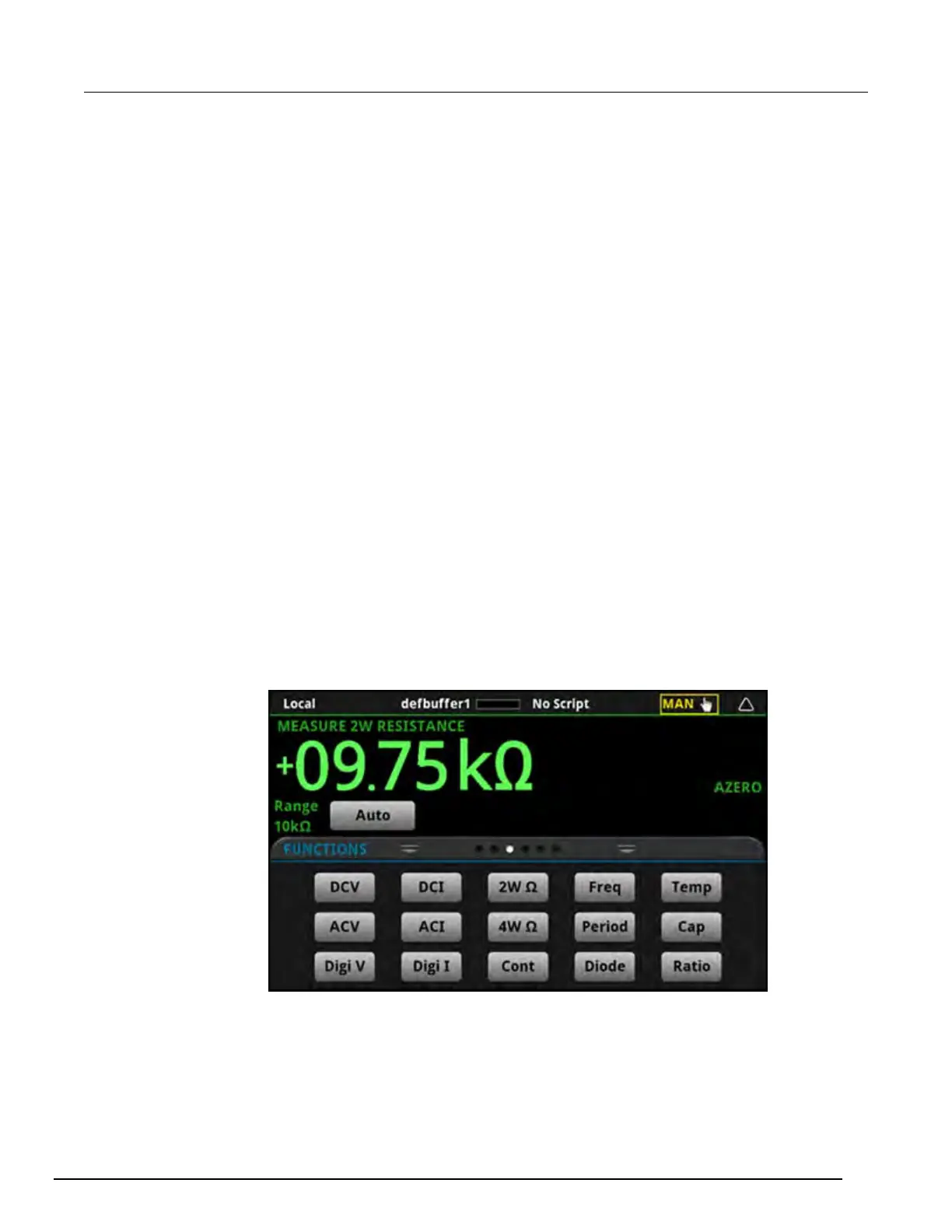

Figure 22: Basic measurement test results
