7½ Digit Multimeter User's Manual Section 6: Measuring 4-
wire resistance with offset compensation
DMM7510-900-01 Rev. B / May 2015 6-3

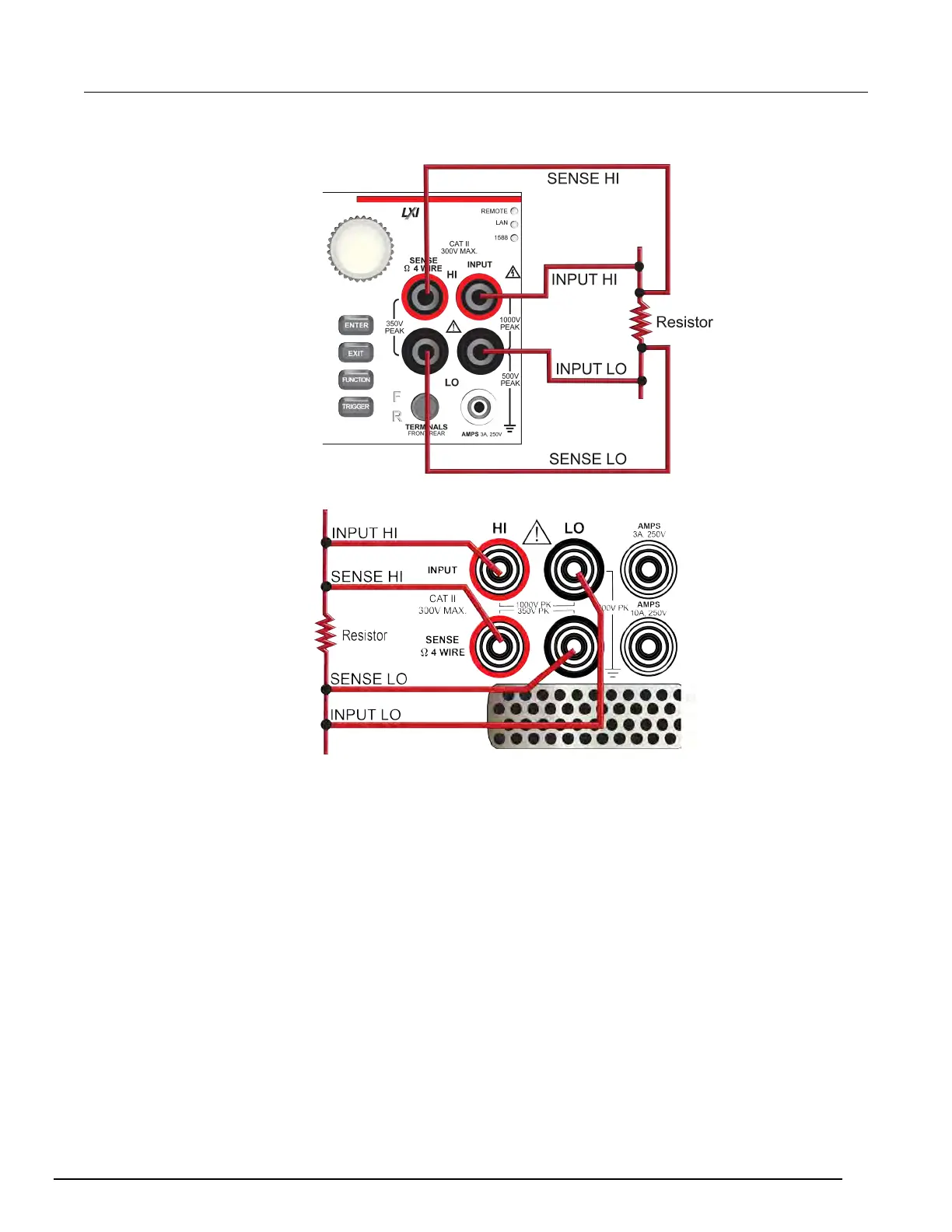

Figure 26: Front-panel connections for 4-wire resistance measurements
Figure 27: Rear-panel connections for 4-wire resistance measurements
4-wire resistance measurements with offset compensation
This application demonstrates how to use the Model DMM7510 to measure the resistance of a device
or component. You can make this measurement from the Model DMM7510 front panel or over the
remote interface using SCPI code or TSP code. For information about setting up remote
communications, see Remote communications interfaces.
For this application, you will:
• Reset the instrument.
• Select the 4-wire resistance function. This method eliminates the effect of the lead resistance on
measurement accuracy.
• Enable offset compensation.
• Make measurements from the front panel or the remote interface.
