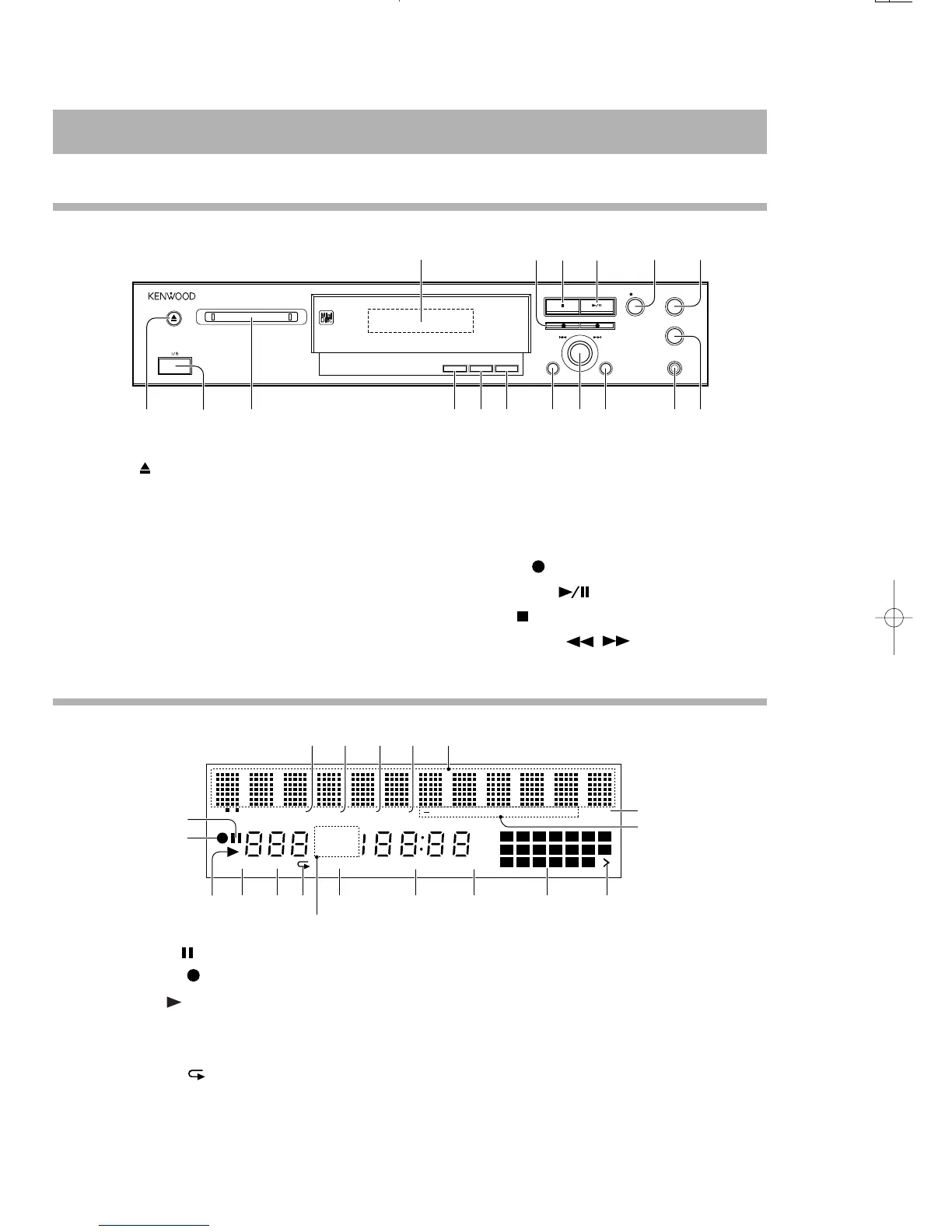

Names and functions of parts
MULTI CONTROL
TIME DISPLAY
DISPLAY/CHARAC.
TRACK/EDIT
ON/STAND BY
STEREO MINIDISC RECORDER
TIMER/
DELETE
ENTER
REC REC LEVEL
0 10
PHONES LEVEL
MIN MAX
PHONES
1
2
3
4
5
6
7
8
9
0
!
@
#
$
%
^
1 Eject key:
2 Power switch (ON/STAND BY key)
3 Mini Disc Insertion slot
4 TIME DISPLAY key
5 DISPLAY/CHARAC key
6 TRACK/EDIT key
7 TIMER/DELETE key
8 Jog dial (Next/Previous)
9 ENTER key
0 Headphone jack (HONES)
! Headphone output level control
@ Record level control
# Record key:
$ Play/Pause key:
% Stop key:
^ Cue/Review key: /
−
∞
TOC DISC
TOTAL
REMAIN
RANDOM
TIMER REC CLOCK
TRACK
DATE 0dB OVER12 4
MONO LP PRGM
1
8
15
2
9
16
3
10
17
4
11
18
5
12
19
6
13
20
7
14
1
2
3
4
5
6
7
8
9
0
!
@
#
$
%
^
&
*
(
1 Pause indicator:
2 Record indicator:
3 Play indicator:
4 Monaural Long-Play Mode indicator
5 Programme indicator
6 Repeat indicator:
7 Total Time/Remaining Time indicator
8 Random indicator
9 Timer Playback/Timer Recording indicator
0 Clock indicator
! Music Calendar
@ More Tracks indicator
# Recording Level indicator
$ Recording level too high indicator
% Level Meter/Character Information display
^ Date indicator
& Track indicator
* Disc Name indicator
) TOC Indicator: TOC
Front panel
Display
Display
