Kenwood DM-3090 Service Manual

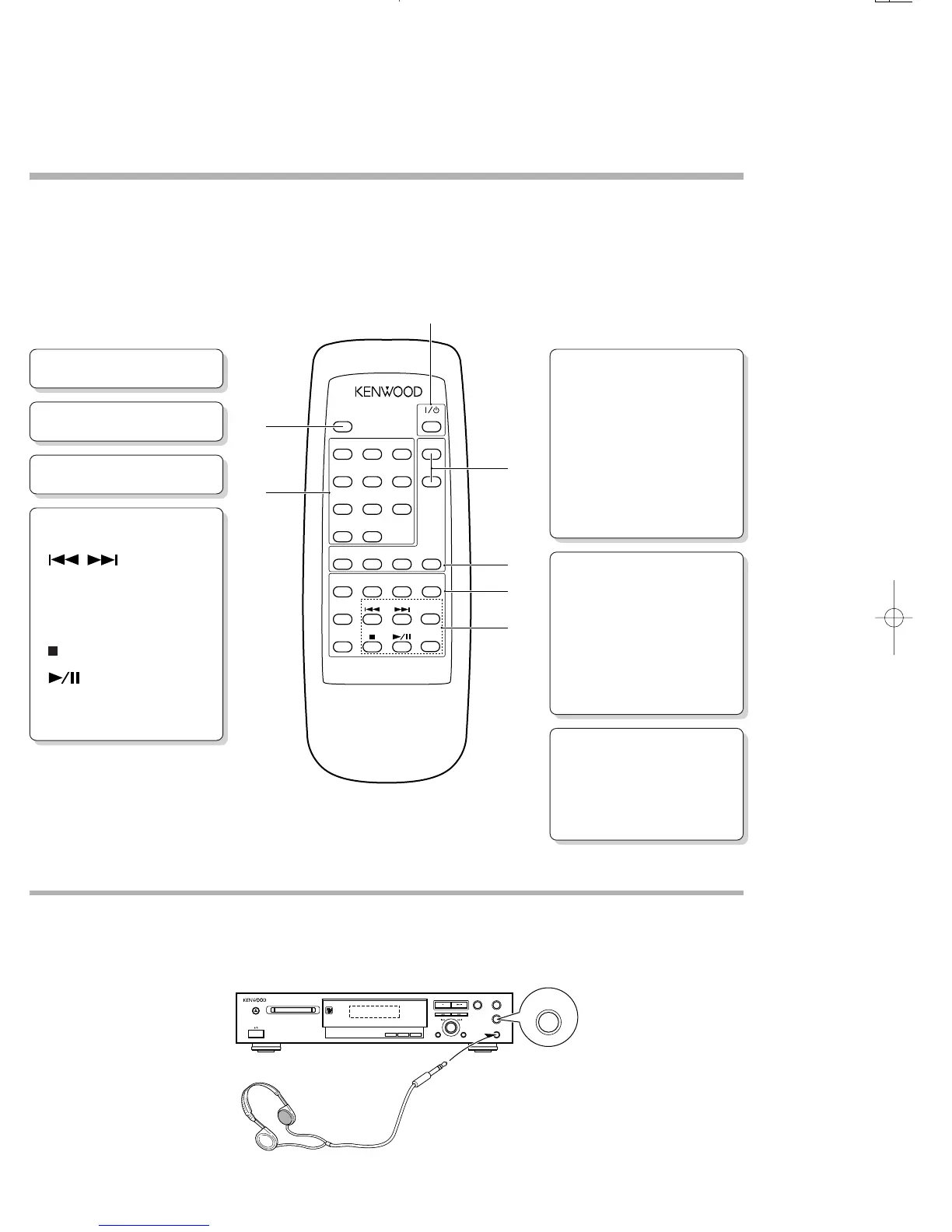

Remote control unit
POWER
DISPLAY
TIME
DISPLAY
6
1
9
+10
REC
MODE
PLAY
MODE
AUTO
MARK
REC
CANCEL
SYNCHRO
REC
REC
REC
INPUT
TRACK EDIT TIMERENTER
PROGRAM
CLEAR
EJECT
2 3
4 5
7 8
0
SELECT
REMOTE CONTROL UNIT
RC-M0301
7

6

5

4

3

2

1

4 Basic operation keys
/
: Skip down/ Skip up
(Cue/Review) key
REC : Record key
: Stop key
: Play/Pause key
PLAY MODE
: Play mode key
7 Display keys
DISPLAY : Display key
TIME DISPLAY : Time display
key
Model: RC-M0301
Infrared ray system
PHONES
PHONES LEVEL
MIN
MAX
The remote control unit incorporates the basic operation keys as well as a variety of applied operation keys
so that it can be used in a wide range of purposes.
Use care to store the remote control unit in a safe place so as not to lose it.
1 POWER key
2 EJECT key
3 Numeric keys
6 Recording operation keys
REC INPUT: Input select key
REC MODE: Record mode key
AUTO MARK: Auto mark key
REC CANCEL: Record cancel
key
Plug the stereo headphones (with standard-plug) available in audio stores into the PHONES jack and adjust the listening volume
with the PHONES LEVEL control on the front panel.
Listening through headphones
5 Applied operation keys
ENTET: Entet key
TRACK EDIT: Edit key
TIMER: Timer key
SYNCHRO REC:
Synchro recording key
PROGRAM: Program key
DM-3090
4
CONTROLS
DM-3090(K) COVER 97.11.29 0:18 AM y[W 7

Kenwood DM-3090 Specifications

Digital Audio Performance

frequency response (playback mode)	8 Hz ~ 20 kHz, ± 1 dB
signal to noise ratio (playback mode)	More than 100 dB
wow & flutter	Less than unmeasurable limit

Analog Specifications

analog input sensitivity / input impedance	0.5V / 22 kΩ or more
analog output level/output impedance	2.0 V / Less than 2 kΩ
headphone output	15 mW/32 Ω load

Digital Input/Output

digital input coaxial	0.5 Vp-p / 75 Ω
digital input optical	- 15 dBm ~ - 21 dBm
digital output optical	- 15 dBm ~ - 21 dBm

General Specifications

power consumption	17 W
dimensions width	440 mm (17 - 5 / 16”)
dimensions height	94 mm (3 - 11 / 16”)
dimensions depth	300 mm (11 - 13 / 16”)

Weight

weight	3.55 kg (7.9 lb)
