Warning
•
The unit can only be used with a 12V DC power supply, negative ground.
•
Disconnect the battery’s negative terminal before wiring and mounting.
•
Do not connect Battery wire (yellow) and Ignition wire (red) to the car
chassis or Ground wire (black) to prevent a short circuit.
•
Insulate unconnected wires with vinyl tape to prevent a short circuit.
•
Be sure to ground this unit to the car’s chassis again after installation.
Caution
•
For safety’s sake, leave wiring and mounting to professionals. Consult
the car audio dealer.
•
Install this unit in the console of your vehicle. Do not touch the metal
parts of this unit during and shortly after use of the unit. Metal parts
such as the heat sink and enclosure become hot.
•
Do not connect the
[
wires of speakers to the car chassis or Ground
wire (black), or connect them in parallel.
•
Mount the unit at an angle of less than 30º.
•
If your vehicle wiring harness does not have the ignition terminal,
connect Ignition wire (red) to the terminal on the vehicle’s fuse box
which provides 12 V DC power supply and is turned on and off by the
ignition key.
•
Keep all cables away from heat dissipate metal parts.
•
After the unit is installed, check whether the brake lamps, blinkers,
wipers, etc. on the car are working properly.
•
If the fuse blows, first make sure the wires are not touching car’s chassis,
then replace the old fuse with one that has the same rating.
Basic procedure
1
Remove the key from the ignition switch, then
disconnect the [ terminal of the car battery.
2 Connect the wires properly.
See Wiring connection. (
29
)
3 Install the unit to your car.
See Installing the unit (in-dash mounting).
4 Connect the [ terminal of the car battery.
5 Press to turn on the power.
6 Reset the unit within 5seconds. (
3
)
INSTALLATION / CONNECTION
Do the required wiring.
(
29
)
Dashboard of your car
Car bracket

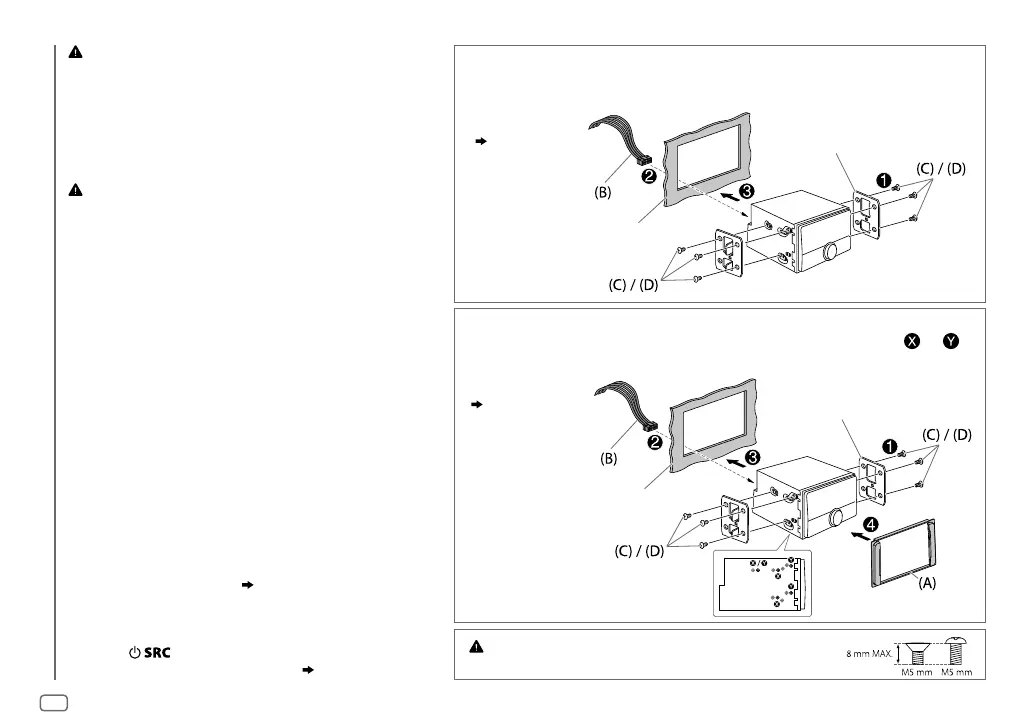

Installing the unit (in-dash mounting)
Install onto the car brackets using the supplied screws
(C)
or
(D)
. The screw holes differ depending on
the model of the cars.
Installing in Toyota cars
Install onto the car brackets using the supplied screws
(C)
or
(D)
. Use the mounting holes ( ) or ( )
that fit the car brackets. Then, install the supplied trim plate
(A)
.
Use only the specified screws. Using wrong screws might damage
the unit.
Do the required wiring.
(
29
)
Dashboard of your car
Car bracket
