IMPORTANT :
We recommend installing the unit with
a commercially available custom wiring harness specific
for your car and leave this job to professionals for your
safety. Consult your car audio dealer.

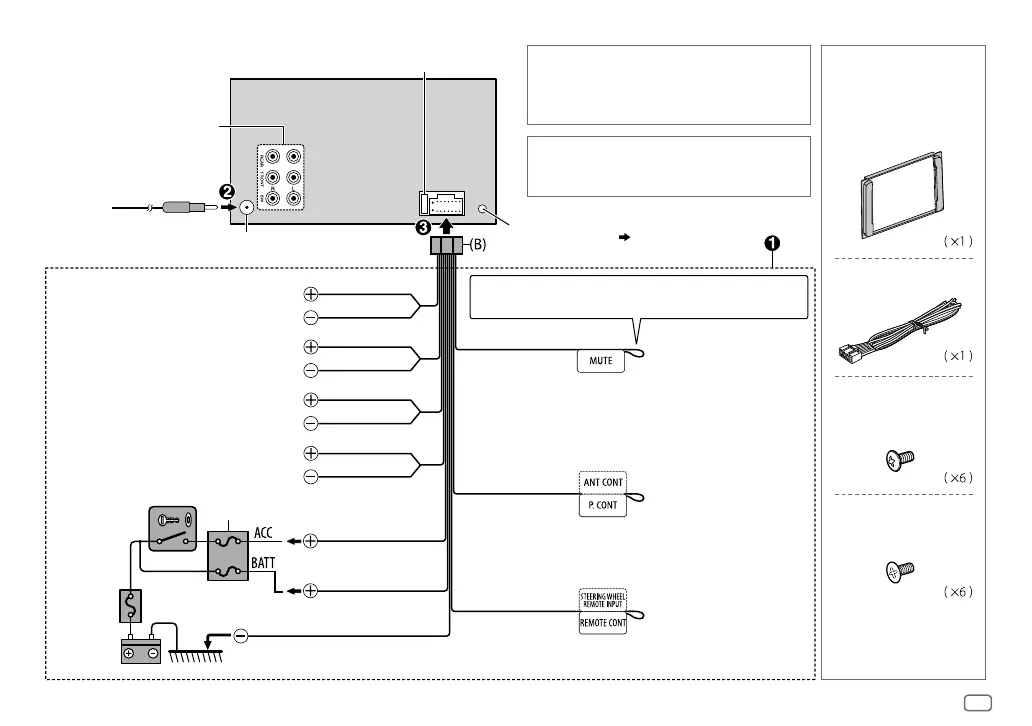

Wiring connection
Fuse (10A)
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote
control wire)
Red (Ignition wire)
Yellow (Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
To the power control terminal
when using the optional power
amplifier or to the antenna
control terminal in the vehicle
Brown
(Mute control wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To connect the Kenwood
navigation system, refer your
navigation manual
If no connections are made, do not let the wire come out from
the tab.
To the steering wheel remote
control adapter
When connecting to an external amplifier, connect
its ground wire to the car’s chassis to avoid damaging
the unit.
Part list for
installation
(A)
Trim plate (only for
Toyota car)
(B)
Wiring harness
(C)
Round head screws
(M5 × 8 mm)
(D)
Flat head screws
(M5 × 8 mm)
Microphone input jack
(
12
)
Rear/ Front/ Subwoofer output
For 3-way crossover: Tweeter/
Mid Range/ Woofer output
To front speaker (left) / For 3-way
crossover: Mid range speaker (left)
To rear speaker (left) /
For 3-way crossover: Tweeter (left)
To front speaker (right) / For 3-way
crossover: Mid range speaker (right)
To rear speaker (right) /
For 3-way crossover: Tweeter (right)
