Kenwood KVC-1000 User Manual

English
17
AUDIOVISUAL
TOUCH PANEL
MULTIPLE SOURCE CONTROL
MODE
SCRN
V.OFF
AV OUT SEL.
FNC V.SEL
KVC-1000 6.5-inch WIDE COLOR LCD TELEVISION
The lower centre of the screen is touched whilst a TV/video picture is displayed, the audio source,
picture settings, video out settings, etc., are superimposed on the picture (On Screen Display). The
display turns off when the lower centre of the screen is pressed again.
FM 9 7 . 5 M
EURO I NFO
Hz
AUTO2 TV1
CINEM VIDEOA
WIDE AV OUT
10ch
Audio source control information
Screen mode
AV output picture
mode
Tuning mode
Channel
TV band

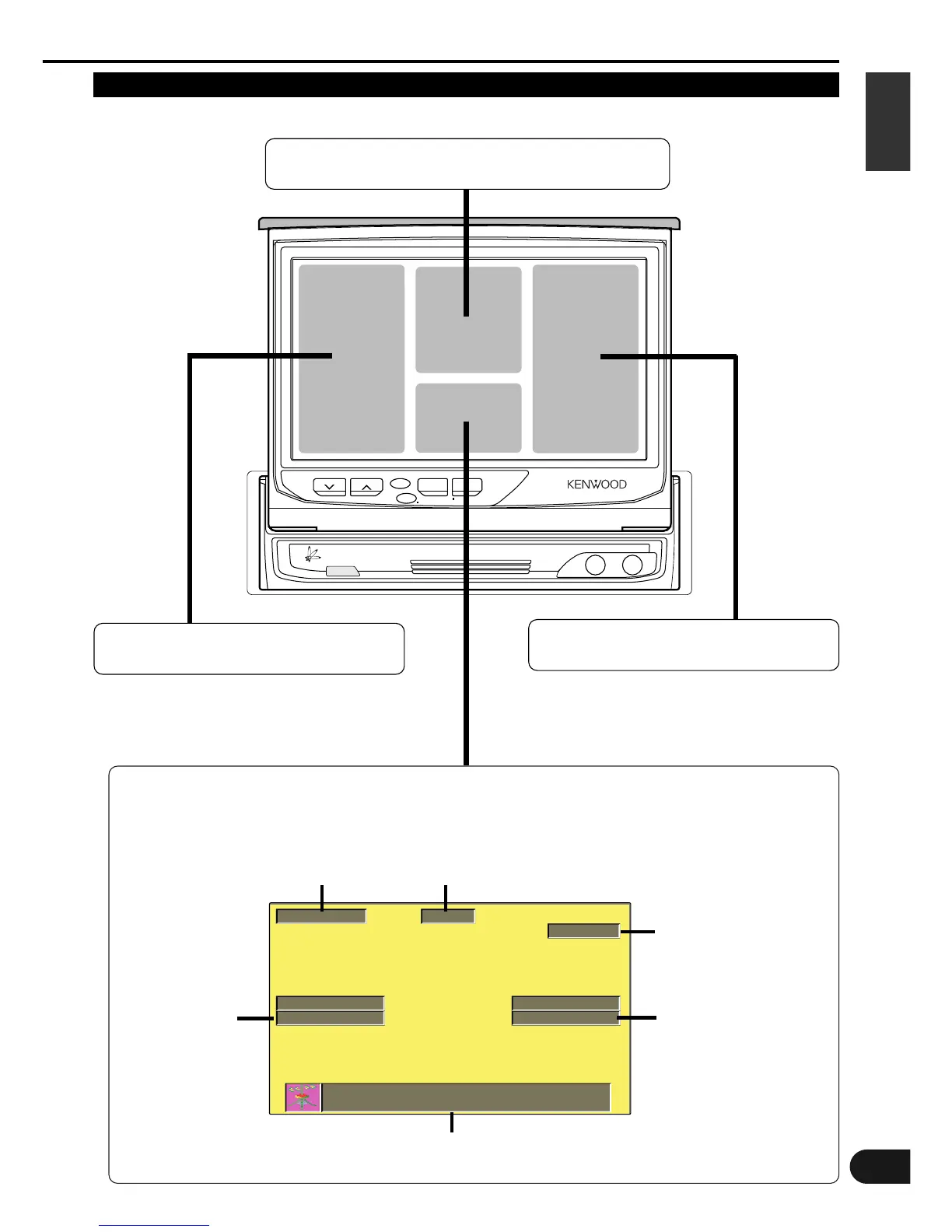

Selecting the Channels on the TV Picture Screen
Touch the left part to decrease the
channel
Touch the upper centre to switch between the TV1 and
TV2 bands
Touch the right part to increase the
channel

Kenwood KVC-1000 Specifications

Monitor

screen size (diagonal)	6.5-inch
screen size (width x height)	142.6mm x 80.7mm
number of pixels	336, 960 (480H x 234V x RGB)

Speaker

audio output	1W
speaker dimensions	40mm x 20mm
antenna input	4ch Diversity System (75Q / Mini Plug 3.5¢)

General

operating voltage	14.4V (11V ~ 16V)
current consumption	2.0A (1.4A during normal operations)
operating temperature range	-10°C ~ +60°C

Weight and Dimensions

main unit size (width x height x depth)	180mm x 50mm x 182mm
installation size (width x height x depth)	178mm x 50mm x 165mm
main unit weight	1.8Kg
