1. To prevent short circuits, remove the key from the
ignition and disconnect the - terminal of the battery.
2. Make the proper input and output cable connections
for each unit.
3. Connect the wiring harness cables in the following
order: ground, battery, ignition.
4. Connect the wiring harness connector to the unit.
5. Install the unit in your car.
6. Reconnect the - terminal of the battery.
7. Press the reset button.(See p. 4)
• If your car's ignition does not come with an ACC
position, connect the ignition cables to a power
source that can be turned on and off with the
ignition key. If you connect the ignition cable to a
power source that receives a constant
voltage supply, as with battery cables, the battery
may die.
• If the fuse blows, first make sure that the cables
have not caused a short circuit, then replace the old
fuse with one with the same rating.
• Do not let unconnected cables or terminals touch
metal on the car or anything else conducting
electricity. To prevent short circuits do not remove
the caps from unused terminals or from the ends of
the unconnected cables.
• After the unit is installed, check whether the brake
lamps, blinkers, wipers, etc. on the car are working
properly.
• Insulate unconnected wires with vinyl tape or other
similar material.
• Mount the unit so that the mounting angle is 30° or
less.
2 CAUTION
Installation

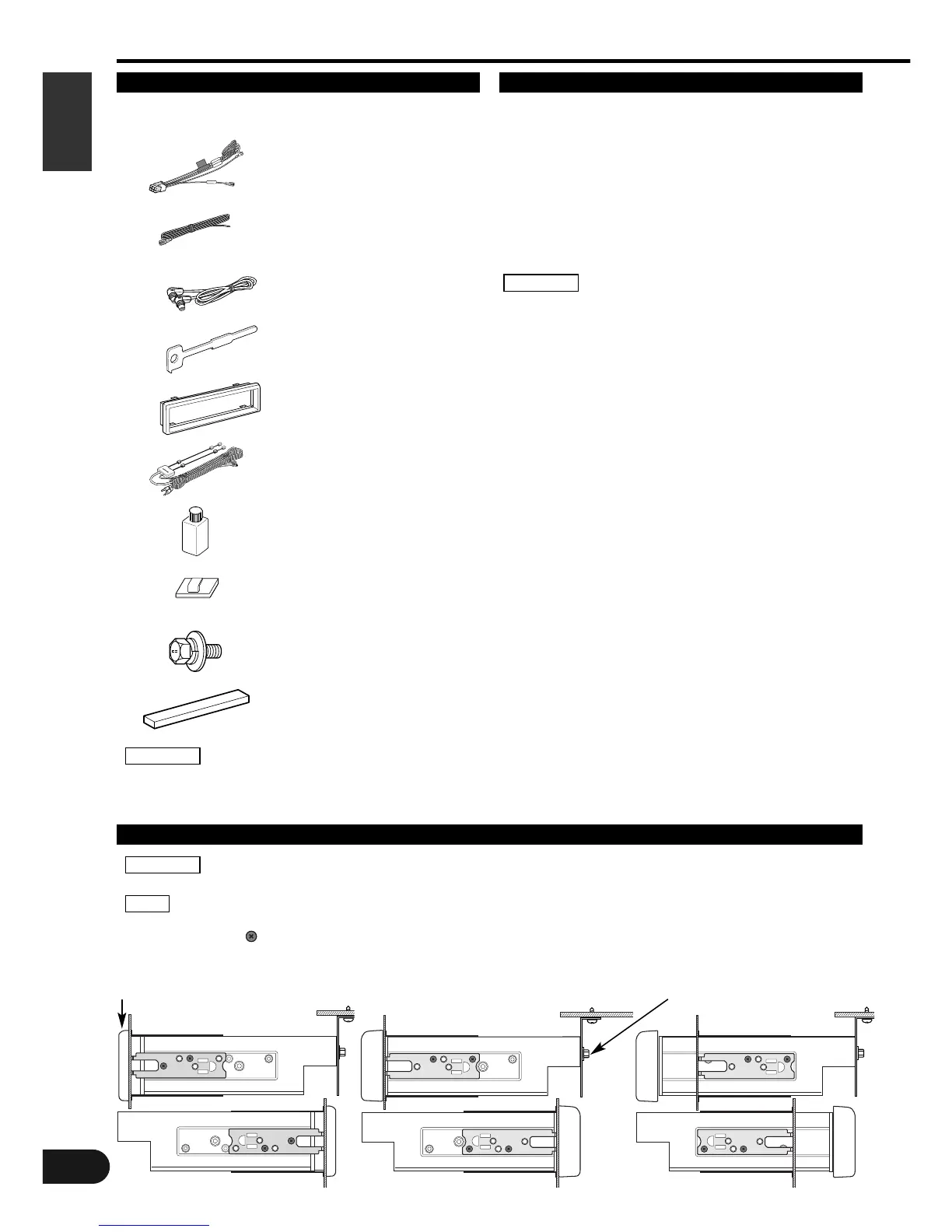

Accessories Installation Procedure
........1
1
........1
2
External view
......... Number of items
........1
3
........2
4
C
A
R
D
I
V
E
R
S
I
T
Y
A
N
T
E
N
N
A
W
I
T
H
B
O
O
S
T
E
R
C
X
-
A
3
3
0
O
NO
F
F
B
O
O
S
T
C
A
R
D
I
V
E
R
S
I
T
Y
A
N
T
E
N
N
A
W
I
T
H
B
O
O
S
T
E
R
C
X
-
A
3
3
0
O
NO
F
F
B
O
O
S
T
........2
6
........1
7
........6
8
........1
5
The use of any accessories except for those provided might result in damage to the unit. Make sure only to use
the accessories shipped with the unit, as shown above.
2 CAUTION
........1
9
........2
0
Installation of Monior Unit
When mounting the main unit after checking the operation, close the monitor first.
• Move the fittings on both sides to suit the installation chassis and select the embedding position from among
the 3 positions.(
:Fixing screw)
• When the fittings are set closest to the front (i.e., the embedding position is farthest back), use the hard rubber
frame (Accessory 5).
NOTE
2 CAUTION
Accessory 5 Accessory 9

Kenwood KVC-1000 Specifications

Monitor

screen size (diagonal)	6.5-inch
screen size (width x height)	142.6mm x 80.7mm
number of pixels	336, 960 (480H x 234V x RGB)

Speaker

audio output	1W
speaker dimensions	40mm x 20mm
antenna input	4ch Diversity System (75Q / Mini Plug 3.5¢)

General

operating voltage	14.4V (11V ~ 16V)
current consumption	2.0A (1.4A during normal operations)
operating temperature range	-10°C ~ +60°C

Weight and Dimensions

main unit size (width x height x depth)	180mm x 50mm x 182mm
installation size (width x height x depth)	178mm x 50mm x 165mm
main unit weight	1.8Kg
