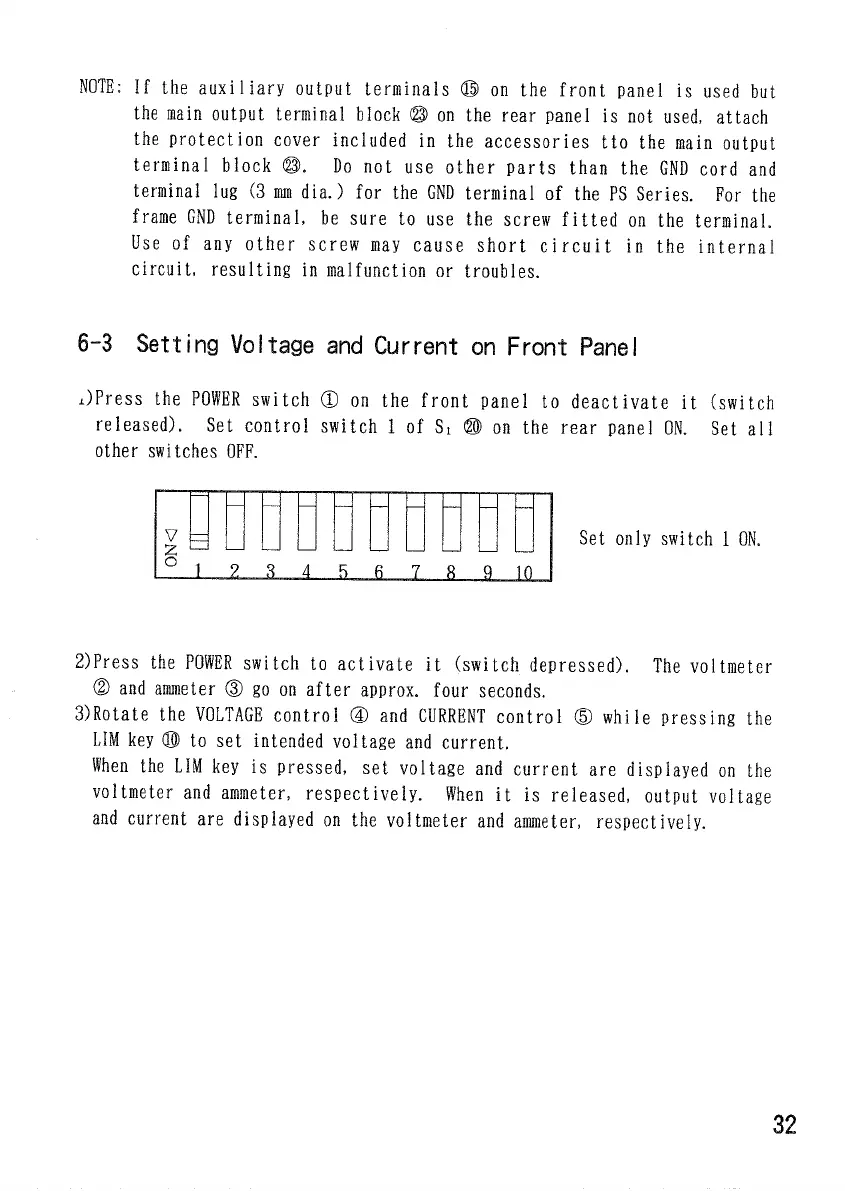

NOTE:

If the

auxiliary

output

terminals

front

panel

used

but

the

main

output

terminal block

rear

panel

not

used,

attach

the protection

cover

included

in the

accessories

tto the

main

output

terminal block

@. Do not use

other parts than

the GND

cord

and

terminal

lug (3 mm

dia.)

for the GND

terminal

of the PS

Series.

For the

frame

GND

terminal,

sure

to use the

screw

fitted

on the

terminal.

Use

of any

other

screw

may

cause

short

circuit

in the

internal

circuit,

resulting

malfunction

troubles.

6-3 Setting

Voltage

and

Current

Front

Panel

•i)Press

the

POWER

switch

CD on the

front

panel

deactivate

(switch

released).

Set

control switch

1 of Si © on the

rear

panel

ON. Set

all

other switches

OFF.

2) Press

the

POWER

switch

activate

(switch

depressed).

The

voltmeter

and

ammeter

after

approx.

four

seconds.

3) Rotate

the

VOLTAGE

control

® and

CURRENT

control

while pressing

the

LIM

key © to

set intended voltage

and

current.

When the LIM key is

pressed,

set

voltage

and

current

are

displayed

on the

voltmeter

and

ammeter,

respectively.

When it is

released,

output

voltage

and current

are

displayed

on the

voltmeter

and

ammeter,

respectively.

Set only switch

1 ON.
