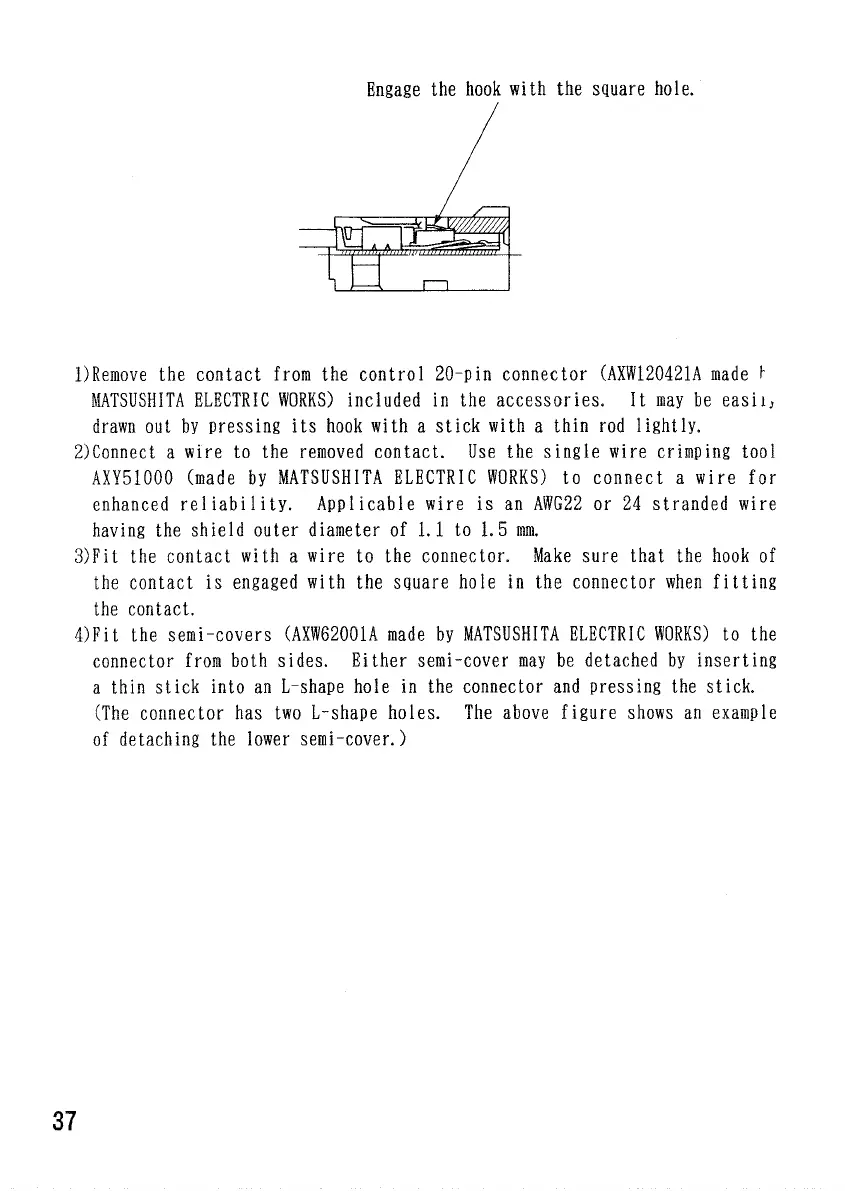

Engage the hook with the square hole.
DRemove the contact from the control 20-pin connector (AXW120421A made f
MATSUSHITA ELECTRIC WORKS) included in the accessories. It may be eash,
drawn out by pressing its hook with a stick with a thin rod lightly.
2) Connect a wire to the removed contact. Use the single wire crimping tool
AXY51000 (made by MATSUSHITA ELECTRIC WORKS) to connect a wire for
enhanced reliabi1ity. Applicable wire is an AWG22 or 24 stranded wire
having the shield outer diameter of 1.1 to 1. 5 mm.
3) Fit the contact with a wire to the connector. Make sure that the hook of
the contact is engaged with the square hole in the connector when fitting
the contact.
4) Pit the semi-covers (AXW62001A made by MATSUSHITA ELECTRIC WORKS) to the
connector from both sides. Either semi-cover may be detached by inserting
a thin stick into an L-shape hole in the connector and pressing the stick.
(The connector has two L-shape holes. The above figure shows an example
of detaching the lower semi-cover.)
37
