Kenwood PS Series User Manual

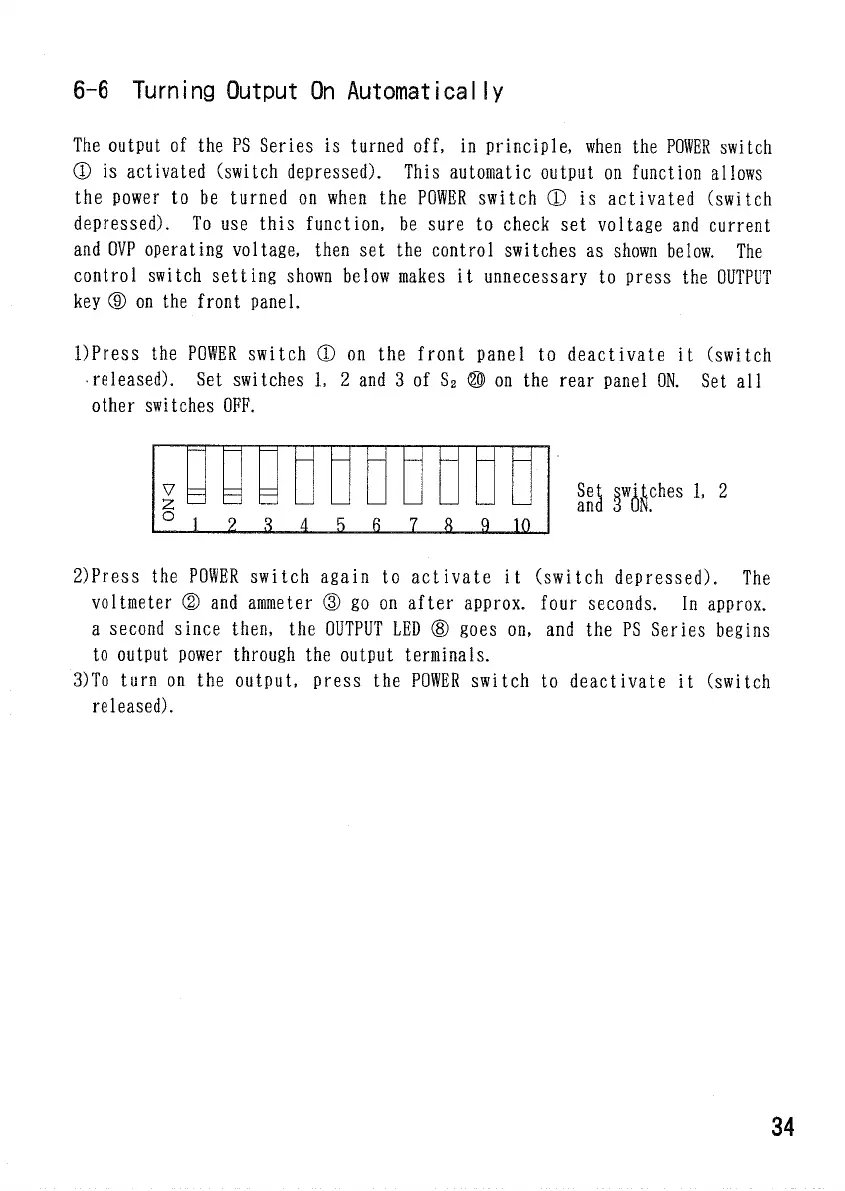

6-6 Turning Output On Automatically
The output of the PS Series is turned off, in principle, when the POWER switch
® is activated (switch depressed). This automatic output on function allows
the power to be turned on when the POWER switch ® is activated (switch
depressed). To use this function, be sure to check set voltage and current
and OVP operating voltage, then set the control switches as shown below. The
control switch setting shown below makes it unnecessary to press the OUTPUT
key ® on the front panel.
DPress the POWER switch ® on the front panel to deactivate it (switch
•released). Set switches 1, 2 and 3 of S
2
@ on the rear panel ON. Set all
other switches OFF.
Setj gw^ches 1, 2
2) Press the POWER switch again to activate it (switch depressed). The
voltmeter © and ammeter (3) go on after approx. four seconds. In approx.
a second since then, the OUTPUT LED ® goes on, and the PS Series begins
to output power through the output terminals.
3) To turn on the output, press the POWER switch to deactivate it (switch
released).
34

Kenwood PS Series Specifications

General

Category	Power Supply
Manufacturer	Kenwood
Input Frequency	50/60 Hz
Dimensions	Varies by model
Weight	Varies by model
Output Voltage	Adjustable
Line Regulation	≤0.01% + 3mV
Load Regulation	≤ 0.01% + 3 mV
Ripple and Noise	≤1mVrms
Display	Digital LED
Model	PS Series
Protection	overvoltage, overtemperature
Input Voltage	100/110/120/220/230/240 VAC (depending on the model and region)
