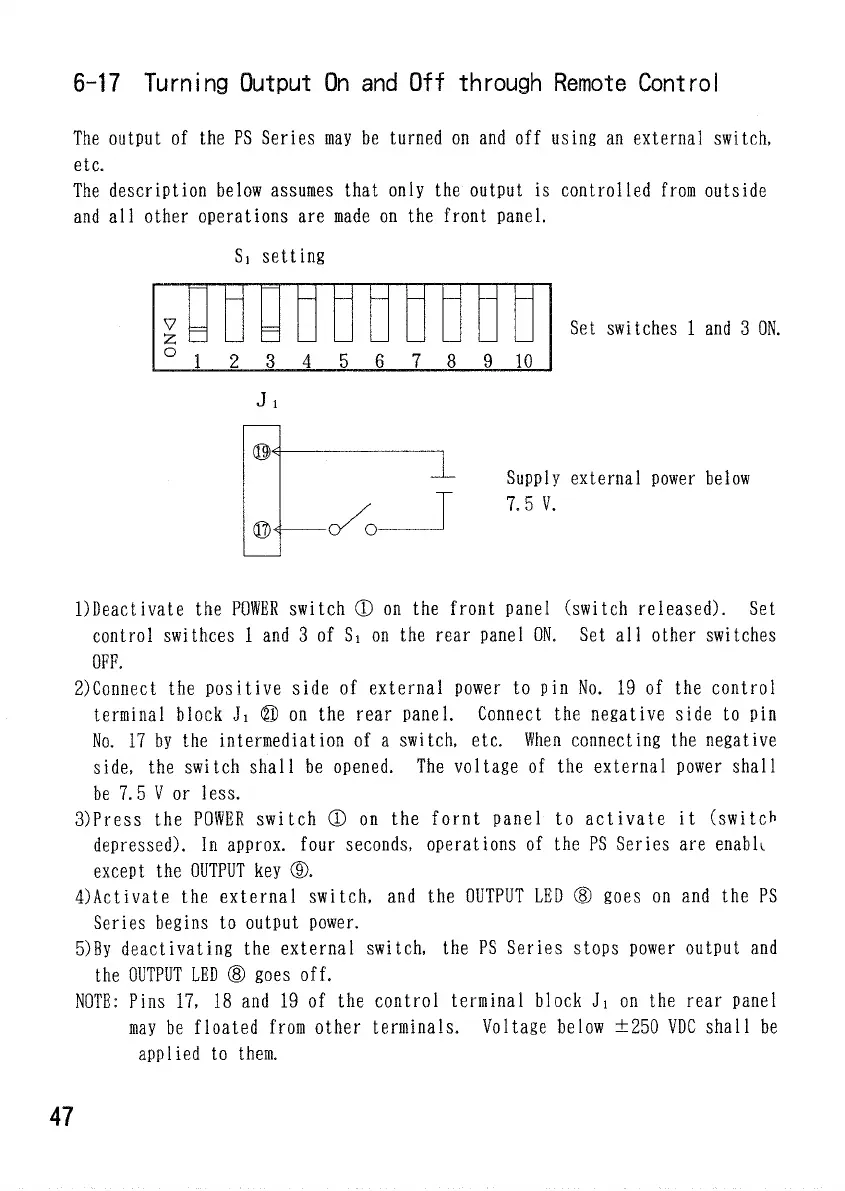

6-17 Turning Output On and Off through Remote Control
The output of the PS Series may be turned on and off using an external switch,
etc.
The description below assumes that only the output is controlled from outside
and all other operations are made on the front panel.
Si setting
Set switches 1 and 3 ON.
Ji
Supply external power below
7.5 V.
DDeactivate the POWER switch ® on the front panel (switch released). Set
control swithces 1 and 3 of Si on the rear panel ON. Set all other switches
OFF.
2) Connect the positive side of external power to pin No. 19 of the control
terminal block Ji @ on the rear panel. Connect the negative side to pin
No. 17 by the intermediation of a switch, etc. When connecting the negative
side, the switch shal1 be opened. The voltage of the external power shall
be 7. 5 V or less.
3) Press the POWER switch ® on the fornt panel to activate it (switch
depressed). In approx. four seconds, operations of the PS Series are enabk
except the OUTPUT key ®.
4) Activate the external switch, and the OUTPUT LED ® goes on and the PS
Series begins to output power.
5) By deactivating the external switch, the PS Series stops power output and
the OUTPUT LED © goes off.
NOTE: Pins 17, 18 and 19 of the control terminal block L on the rear panel
may be floated from other terminals. Voltage below ±250 VDC shall be
applied to them.
47
