Kenwood VR-509 User Manual

19
Preparations
The remote control for the VR-509 incorporates the RF transmission
function. To make sure receiving the RF remote signal, connect the
provided RF remote antenna.
1 Insert the jack of the provided RF remote antenna into the
ANTENNA RF REMOTE jack.
2 Distribute the antenna wire vertically and fix it.
• Distribute the antenna away from the metallic panel.
Important notes
Here is list of adjustment which can maximize the operation of
your remote control. For optimal operation of the remote control:
1 Aim the remote control toward the room where the receiver is
located.
2 Do not position the receiver and remote control near metal (such as
heat ducts). Metal can absorb RF signals.
3 Make sure the batteries in the remote control are fully charged. Weak
batteries will affect the range of the remote control.
4 When there is an obstruction around other equipments that send
signal from the remote control, the control distance of the RF remote
signal will be short.

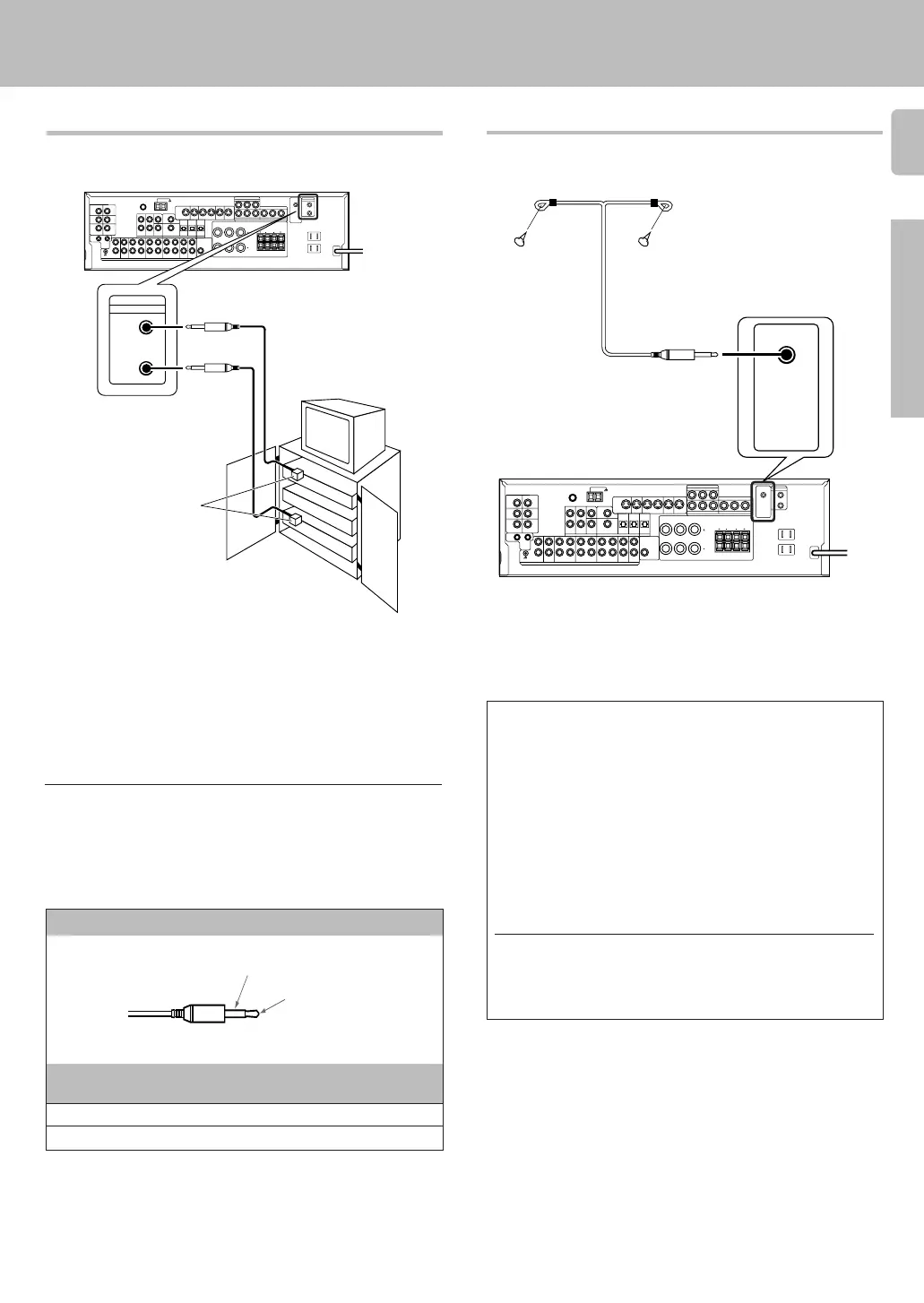

Connecting the RF remote antenna
L
VIDEO 3VIDEO 2VIDEO 1
S VIDEO
R
A
LC
LR
LR
B
PLAY INPLAY INPLAY INREC OUTPLAY IN
MONITOR
OUT
VIDEO 1
DVD
R
ANTENNA
RF REMOTE
Note
• The tests for range limits of the remote control and the receiver are
conducted in open-air distance test. Actual distance of the signal
will be based on the construction of the building the unit is being
used in as well as other factors such as outside interference.
KENWOOD components (Except for DVD player): System control ^
Other components : IR REPEATER
1 Connect the IR repeater to the device as described in the
repeater’s manual.
IR repeaters enable you to control components located in cabinets or
behind glass doors.
IR repeaters
2 Connect the IR repeater cable(s) to the IR REPEATER OUT
jack(s).
Notes
• IR repeaters send a signal similar to the device’s own remote control.
Xantech repeaters (models 282-00, 286-00, or 283-00) are compatible
with your new audio-video receiver.
L
VIDEO 3VIDEO 2VIDEO 1
S VIDEO
R
A
LC
LR
LR
B
PLAY INPLAY INPLAY INREC OUTPLAY IN
MONITOR
OUT
VIDEO 1
DVD
R
IR REPEATER
OUT
Connecting IR repeaters
Shape of plug to be connected:
Please use this plug.
Tip
Sleeve
IR Repeater OUT
Mono Mini Plug
IR OUT specification :
Terminal IR OUT LCD
Remote
To Tip Signal
To Sleeve Ground
*509/19-21/EN 3/15/01, 2:02 PM19

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
