Kenwood VR-509 User Manual

20
Preparations
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND AUTO
LFE
C
S
RSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
RL
SP A
STEREO
4 Use the MULTI CONTROL knob or 5/∞ keys to select the
appropriate front speakers setting.
1 FRNT NML (normal) : Average size front speakers are
connected to the receiver.
2 FRNT LRG (large) : Large front speakers are connected
to the receiver.
• For “FRNT LRG” selection, no sound will be heard from SUBW
even when it is set to ON. However, if you select CINEMA EQ.
when subwoofer is selected, you will be able to hear sound from
the subwoofer.
When in STEREO mode, the sound goes directly to front speaker.
5 Press the SET UP or display operation 2 [Next] key to accept
the setting.
• The center speaker setting indication (CNTR) appears.
If you have selected “NML” as the front speakers setting,
1 CNTR ON : Center speaker setting mode to the receiver
is ON.
2 CNTR OFF : Center speaker setting mode to the receiver
is OFF.
7 Press the SET UP or display operation 2 [Next] key to accept
the setting.
• The surround speaker setting indication (SURR) appears.
8 Use the MULTI CONTROL knob or 5/∞ keys to select the
appropriate surround speaker setting,
If you have selected “LRG” as the center speaker setting,
1 SURR LRG (large) : Large surround speakers are
connected to the receiver.
2 SURR NML (normal) : Average size surround speakers are
connected to the receiver.
3 SURR OFF : Surround speaker setting mode to
the receiver is OFF.
If you have selected other than “LRG” as the center speaker
setting,
1 SURR ON : Surround speaker setting mode to the receiver
is ON.
2 SURR OFF : Surround speaker setting mode to the receiver
is OFF.
9 Press the SET UP or display operation 2 [Next] key to accept the
setting.
6 Use the MULTI CONTROL knob or 5/∞ keys to select the
appropriate center speaker setting.
If you selected “LRG” as the front speakers setting,
1 CNTR LRG (large) : A large center speaker is connected
to the receiver.
2 CNTR NML (normal) : An average size center speaker is
connected to the receiver.
3 CNTR OFF : Center speaker setting mode to the
receiver is OFF.
• The receiver enters the speaker volume level adjustment mode.
• In steps 3 and 4, indications appear only for the selected
channels of the speakers that require adjusting.
3 Press the SET UP or display operation 2 [Next] key to accept the
setting.
• The front speakers setting indication (FRNT) appears.

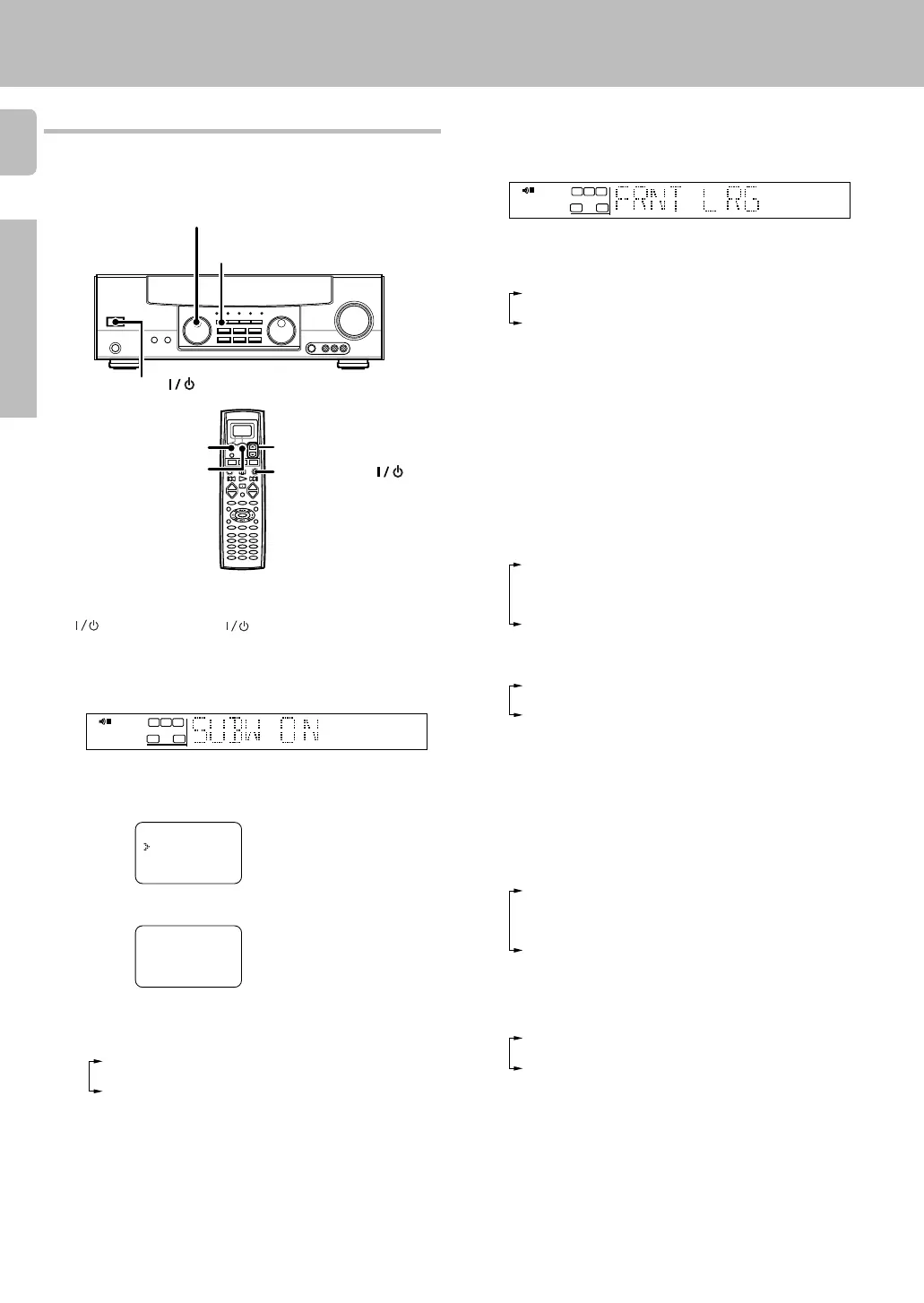

Speaker settings
To enable you to obtain optimum enjoyment from the receiver's listening
modes, make sure to complete the speaker settings (subwoofer, front,
center, and surround speakers) as described below.
Preparing for surround sound
1 Press the SET UP key such that the subwoofer setting
indication (SUBW ON) appears.
When you operate on the remote control unit
11
11
1 Press the display operation 2 [Menu] key repeatedly until
“01.IR” appears in the display of the remote control unit.
22
22
2 Press the 5/∞ keys to select “02.Surround ”, then press
the display operation 2 [Enter] key.
2 Use the MULTI CONTROL knob or 5/∞ keys to select the
appropriate subwoofer setting.
1 SUBW ON : Subwoofer setting mode to the receiver is
ON.
2 SUBW OFF : Subwoofer setting mode to the receiver is
OFF.
• The initial setting is “SUBW ON”.
• When “SUBW OFF” is selected, the front speakers are automatically
set to “FRNT LRG” and the procedure skips to step 5.
• When subwoofer output sound is required, selected “FRNT NML”.
+
—
+
—
MULTI CONTROL
SET UP
SYS. POWER ( )
Display operation 1
Display operation 2
5/∞
POWER ( )
1
2
>02.Surround
>01.IR
Home Enter
SetUp
Home Next
Turn on the power to this receiver by pressing POWER
( ) or SYS. POWER ( ) key.
Select a speaker system.
FM
AM
MHz
kHz
PRO LOGIC
3
DOWN MIX
DIGITAL
S.DIRECT
MONITOR
DSP
MEMO
ST.
TUNED
AUTO SOUND AUTO
LFE
C
S
RSLS
TI.VOLB
CLIP MUTE
RDS EON PTY
TP TA NEWS
SW
RL
SP A
STEREO
*509/19-21/EN 3/15/01, 2:03 PM20

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
