Kenwood VR-509 User Manual

38
Remote Control
5 From the remote control unit of the other source, press the key
that you want to store.
• The remote code is sent to the remote control unit.
•“Complete” appears when finished.
• When it takes for more than 5 seconds or the remote control unit does
not receive the remote control code well, “Error” appears in the
display. In this case, re-operate from step 1.
6 The remote control code is stored on the key of the remote
control unit.
To delete the memory stored on the key
Press the display operation 1 [Clr] key in step 4. “Cleared ”
appears in the display.
The memory previously stored is cleared.
To operate other components
1 Press the MUSIC, MOVIE, or TV key to select the desired input
source.
2 Press the desired key.

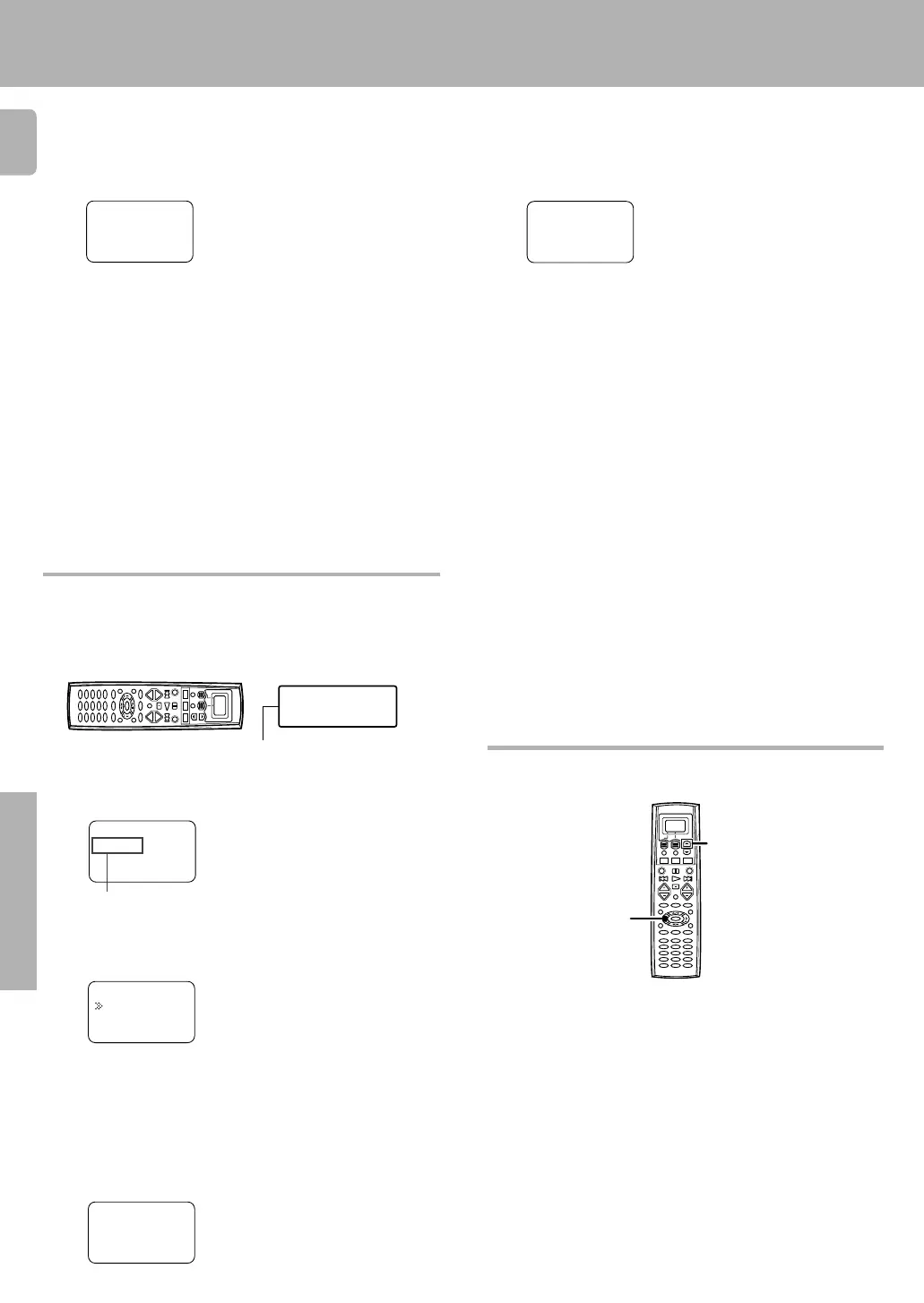

1 Point the infrared ray system part of the other remote control
unit to the remote sensor of the remote control unit .
Storing on the memory
2 Press the MUSIC, MOVIE, or TV key to select the input of the
desired remote control unit.
You can store on the remote control unit up to 5 memories.
VCR
Video1:
Menu
Selected input
3 Press the LEARN key.
• The Extend selecting display appears.
>Extend2
>Extend1
Home Enter
>Extend1
Complete
• When the setup code is not registered, any messages do not appear.
When the setup code is registered
4 Press the 5/∞ keys to select the location.
• Extend1 – Extend5 are available.
5 Press the display operation 2 [Enter] key.
• The remote control is sent for receiving the remote control code.
>Extend1
Waiting
Clr Exit
6 From the remote control unit of the other source, press the key
that you want to store.
• The remote code is sent to the remote control unit.
•“Complete” appears when finished.
• When it takes for more than 5 seconds or the remote control unit does
not receive the remote control code well, “Error” appears in the
display. In this case, start from the step 1 again.
7 The remote control code is stored on the memory (Extend1 –
Extend5) of the remote control unit.
To operate other components by using the stored memory
2 Press the display operation 2 [MENU] key during “Menu”
appear in the display.
• The Menu display appears.
3 Press the 5/∞ keys to select the memory you want to operate.
4 Press the display operation 2 [Enter] key.
To delete the stored memory
Press the display operation 1 [Clr] key in step 5. “Cleared”
appears in the display and the memory that is selected in step 4
is erased.
1 Press the MUSIC, MOVIE, or TV key to select desired input
source.
>Extend1
Complete
Extend 1
You can restore the setup codes or memories to their original default
settings.
•“Cleared” appears in the display, and the remote settings return to
their original default settings.
Insert the batteries while pressing and holding the 5 key
and
2 key.
Restoring the original factory settings
5
2
Infrared ray system part
Remote control
unit of the other
source.
+
—
+
—
Remote control operations
• To maintain the memory settings, complete the battery replacement
operation approximately within 10 minutes.
*509/33-39/EN 3/15/01, 2:17 PM38

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
