Kenwood VR-509 User Manual

40
Remote Control
You can operate other components by pressing keys or using the display.
The setup code for each component must be entered beforehand. ‹
Remote control operation of other components
1 Press the MUSIC, MOVIE, or TV key to select the component
you want to control.
2 Press the keys corresponding to the operations you desire.
• To execute a FUNCTION SHIFT command, press the F. SHIFT key, then
press the corresponding key.
• When pressing keys in succession, press each key firmly and be sure to
wait at least 1 second before pressing the next key.
Notes
1. Although each setup code is designed to work with a number of different
models, certain codes may not work with some models. (Also, certain
codes may only operate some of the functions available on a given
model.)
2. The charts below show the typical functions available for each compo-
nent. Some manufacturers use different key combinations to perform
similar functions.
1 Press the MUSIC, MOVIE, or TV key to select the component
you want to control.
2 Press the display operation 2 [Menu] key so that the Menu
display appears.
3 Press the 5/∞ keys to select desired item or memory, then
press the display operation 2 [Enter] key.
When you operate by using the keys
When you operate by using the display

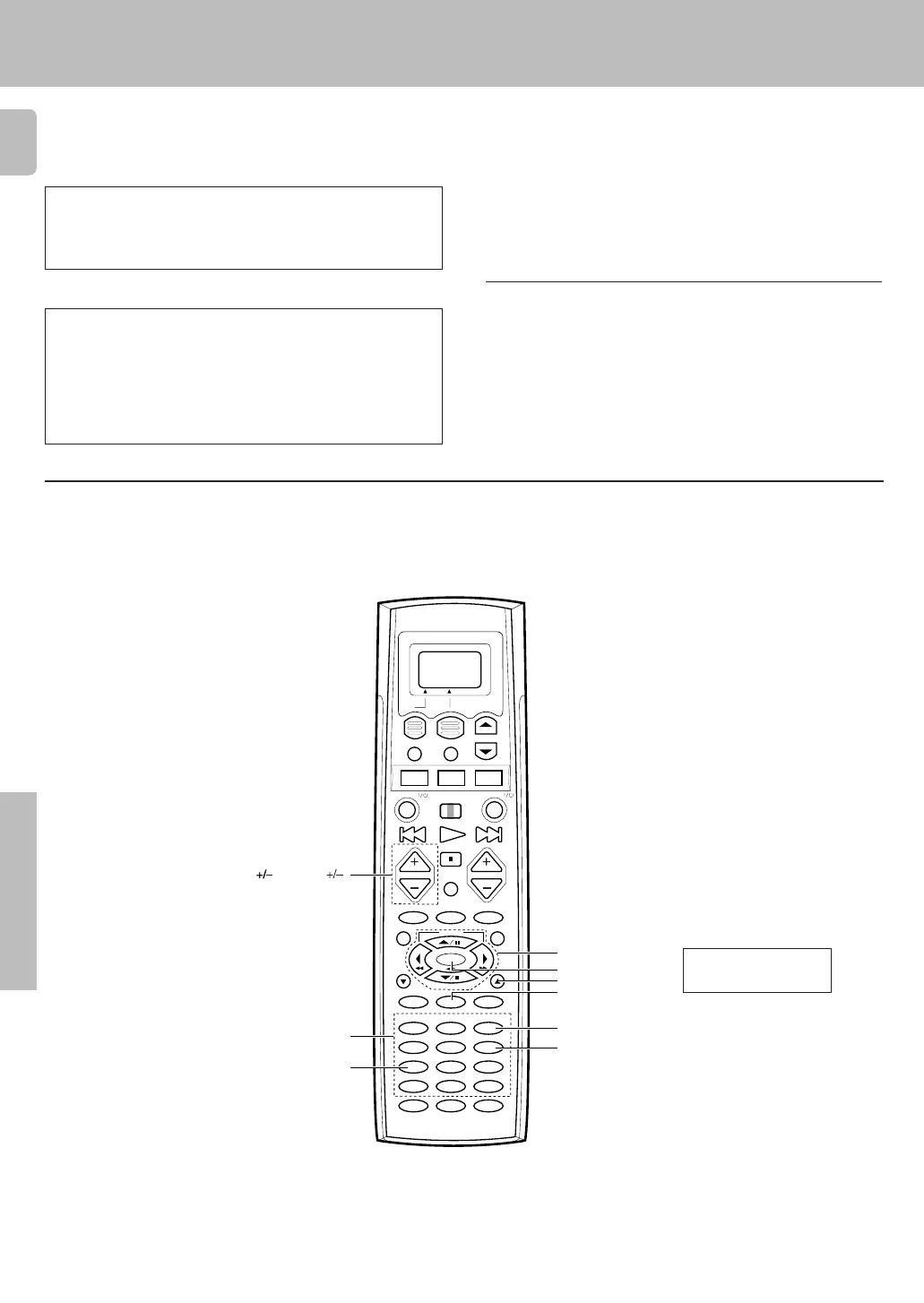

Satellite tuner operations
Display operation
01-05: Extend 1-5
SHIFT MACRO
MUSIC
MUTE
CH.
CH.
VOL.
VOL.
TUNING
BAND
ENTER
AUTO/MONO
F.SHIFTREC
REC MODE
LEARN
RANDOMREPEAT INPUT SEL.
213
546
879
0+10 +100
1110 12
DISPLAYTV SELECT SELECT
THEMEAUDIO FAVORITE
EXITINFO. LAST CHANNEL
OSD
/PAGE
RETURN
/PAGE
TITLE/GUIDE MENU
MOVIE TV
AV POWER SYS. POWER
RF REMOTE CONTROL UNIT
RC-R0811
LISTEN M.
BASS BOOST SUB W.DIMMER
SOUND CINEMA EQ
F.SHIFT + 7 (AUDIO)
F.SHIFT
Numeric keys
Cursor 5/∞/2/3
OSD
F.SHIFT + 3 (INPUT SEL.)
F.SHIFT + 6 (SELECT)
ENTER
CH. (Channel )
*509/40-48/EN 3/15/01, 2:17 PM40

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
