Kenwood VR-509 User Manual

36

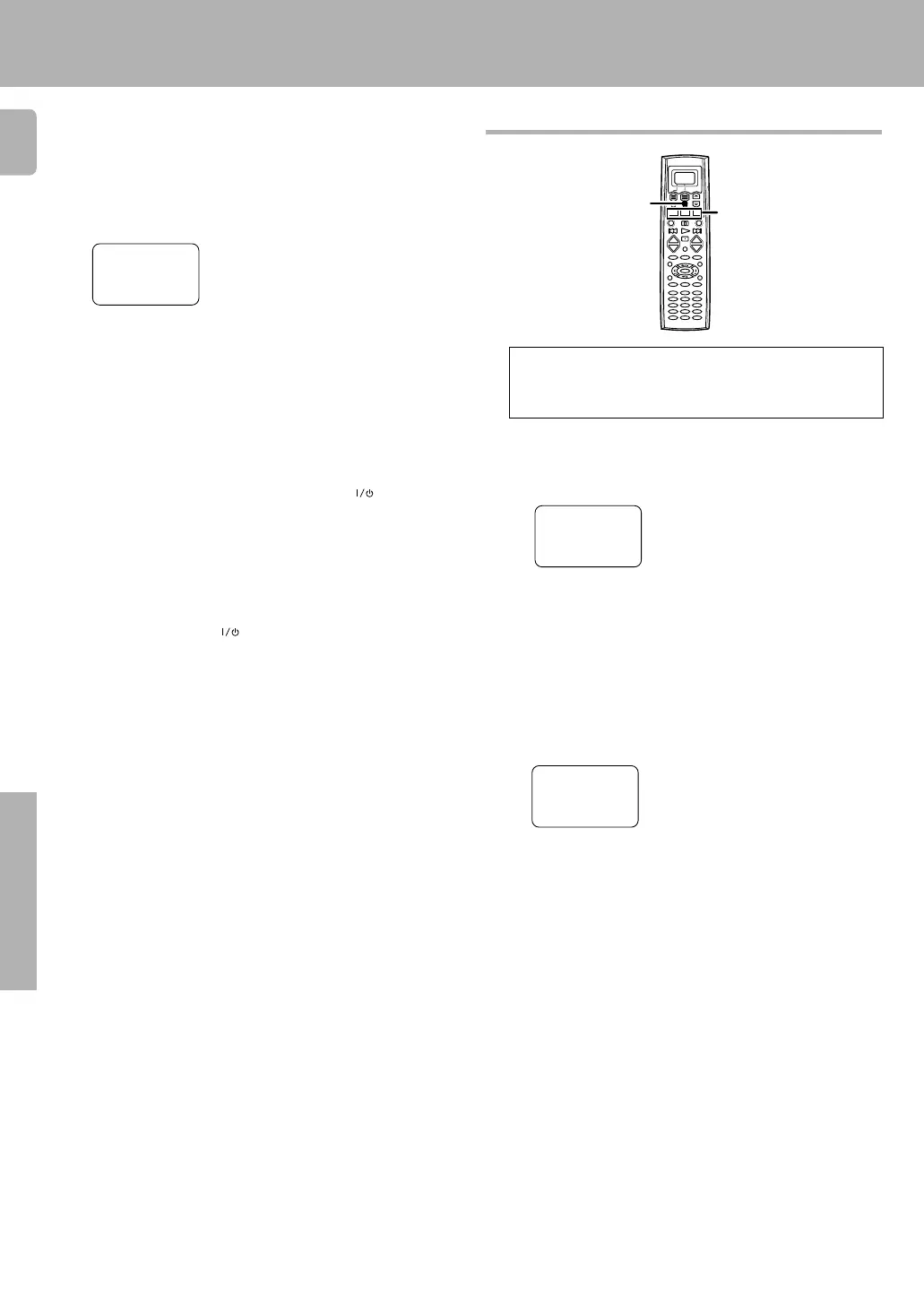

Remote Control
Select MACRO
MACRO1
Menu
Press the MUSIC, MOVIE, or TV key to select the macro
location. (MACRO1, 2, and 3 respectively)
3
• You can store up to 3 different macros, one at each key:
MUSIC = “MACRO 1”, MOVIE = “MACRO 2”, TV = “MACRO 3”
• Pressing a key other than MUSIC, MOVIE, or TV cancels the macro
program mode.
Press the keys to be operated in order.
4
5
Press the MACRO key.
• The macro is stored at the locations specified in step 3. If another
macro was previously stored at the same location, it is erased.
Repeat steps 1 through 5 to program up to 3 macros.
This completes the macro programming procedure.
EXAMPLE:
1 Press the TV key, then press the AV POWER key to turn
on the TV.
2 Press the F. SHIFT key, then press the “3” (INPUT SEL.) key
to set the TV to the appropriate video input.
3 Press the MOVIE key to select the LD player registered at
VIDEO 2.
4 Press the AV POWER key to turn on the LD player.
This example shows you how to create a macro that; turns on the TV,
sets the TV to the appropriate input, selects the receiver's input selector
to LD, and turns on the LD player. All you have to do is insert the laser
disc!
• Make sure you start the next operation within 8 seconds of complet-
ing the previous one. If more than 8 seconds elapses between any two
steps, exit the macro programming mode.
• In order to allow verification of the remote control mode, the name of
the selected input appears in the receiver's display when the MUSIC,
MOVIE, or TV key is pressed. When the MUSIC or MOVIE key is
pressed the receiver's input also changes.
When MUSIC is pressed.
2
Press the MUSIC, MOVIE, or TV key to execute the
corresponding macro play.
1
Press the MACRO key.
•"MACRO EXE" appears in the display and the pre-programmed macro
is performed:
MUSIC = “MACRO 1”, MOVIE = “MACRO 2”, TV = “MACRO 3 ”
• Some devices take up to 1 second to power on. The macro function
has an automatic delay after any power function output.
• Pressing a key other than MUSIC, MOVIE, or TV cancels the macro
program mode.
When MUSIC is pressed.
Select MACRO
MACRO EXE
Menu
Select MACRO
MACRO1 EXE
Menu
•“MACRO EXE” appears in the display.
MACRO
MUSIC, MOVIE,
TV
+
–
+
–
During operation, make sure you start the next step within 8
seconds of completing the previous one. If more than 8
seconds elapses between any two steps, press the display
operation key so that the display appears.
Executing an automatic operation
Remote control operations
*509/33-39/EN 3/15/01, 2:17 PM36

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
