Preparations
L
VIDEO 3VIDEO 2VIDEO 1
S VIDEO
R
A
LC
LR
LR
B
PLAY INPLAY INPLAY INREC OUTPLAY IN
MONITOR
OUT
VIDEO 1
DVD
R
MONITOR
PLAY INPLAY IN
REC OUT
AUDIO
L
R
MD/TAPE
CD/DVD
PHONOGND
REC OUT

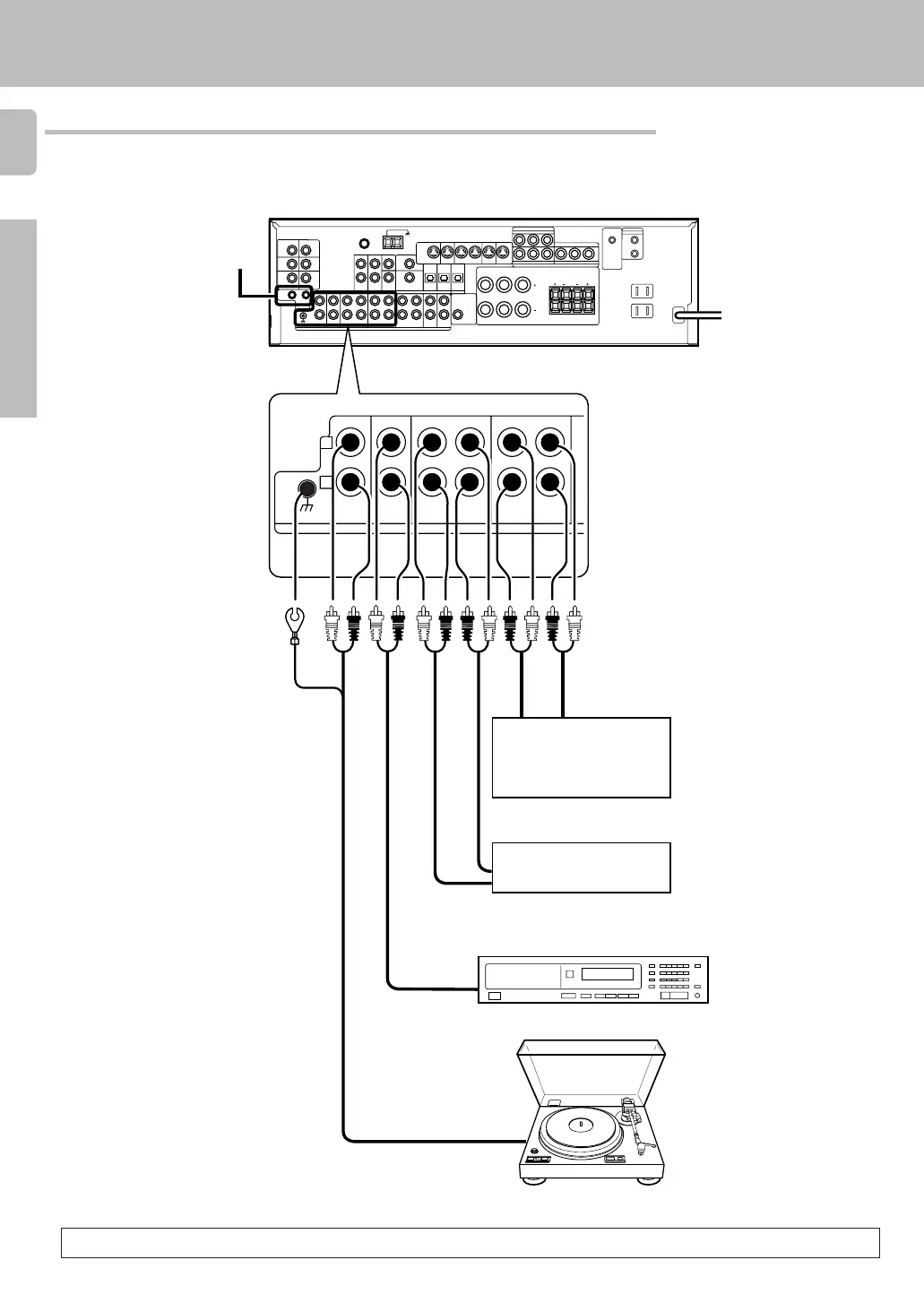

Connecting audio components
To AC wall outlet
SYSTEM CONTROL
jacks ^
When you connect the unit and the CD or MD player with the digital connection, you can enjoy a better sound quality.
Setting up the system
Cassette deck or MD
recorder
CD player
IN OUT
Video component,
3 head cassette deck, or
Graphic equalizer ¢
IN
OUT
OUT
OUT
Record player
Moving Coil (MC) cartridge
record player cannot be used
directly from the receiver
unit. It can only be used when
another equalizer amplifier
is connected
*509/07-18/EN 3/15/01, 2:01 PM8

Kenwood VR-509 Specifications

Audio Specifications

rated power output during stereo operation	100 watts per channel minimum RMS, both channels driven, at 8 Ω from 20 Hz to 20 kHz with no more than 0.7% total harmonic distortion
effective power output during surround operation front	100 W + 100 W
effective power output during surround operation center	100 W
effective power output during surround operation surround	100 W + 100 W
total harmonic distortion	0.05% (1 kHz, 50W, 8 Ω)

Video Specifications

video inputs/outputs composite	1 Vp-p / 75 Ω
s video luminance signal	1 Vp-p / 75 Ω
s video chrominance signal	0.286 Vp-p / 75 Ω
component video luminance signal	1 Vp-p / 75 Ω
component video CB/CR signal	+/– 0.324 Vp-p / 75 Ω

FM Tuner Specifications

tuning frequency range	87.5 MHz ~ 108 MHz
usable sensitivity mono	1.3 µV (75 Ω)/ 13.2 dBf (75 kHz DEV., SINAD 30 dB)
50dB quieting sensitivity stereo	28 µV (75 Ω)/ 40.2 dBf
total harmonic distortion mono	0.5% (65 dBf input)
total harmonic distortion stereo	0.7% (65 dBf input)
signal to noise ratio mono	75 dB (65 dBf input)
signal to noise ratio stereo	68 dB (65 dBf input)
stereo separation	40 dB
selectivity	70 dB (±400 kHz)
frequency response	30 Hz ~ 15kHz, +0.5 dB, –3.0 dB

AM Tuner Specifications

tuning frequency range	530 kHz ~ 1, 700 kHz (10 kHz step)
usable sensitivity	16 µV / (600 µV/m)
signal to noise ratio	50 dB (30% mod. 1 mV input)

General Specifications

power consumption	2.6 A
dimensions width	440 mm (17-5/16")
dimensions height	144 mm (5-11/16")
dimensions depth	399 mm(15-11/16")
weight	8.8 kg (19.4 lb)

Digital Audio Specifications

sampling frequency	32 kHz, 44.1 kHz, 48 kHz, 96kHz
input level/impedance/wave length optical	(-15 dBm ~ -21 dBm), 660 nm ±30nm
input level/impedance coaxial	0.5 Vp-p / 75 Ω
