5. The lowering speed of the lower
link is proportional to the applied
weight but can be controlled by ad-
justing the draining passage of the
hydraulic fluid. (See “Lifting arm
speed control lever” on Page 4-31)

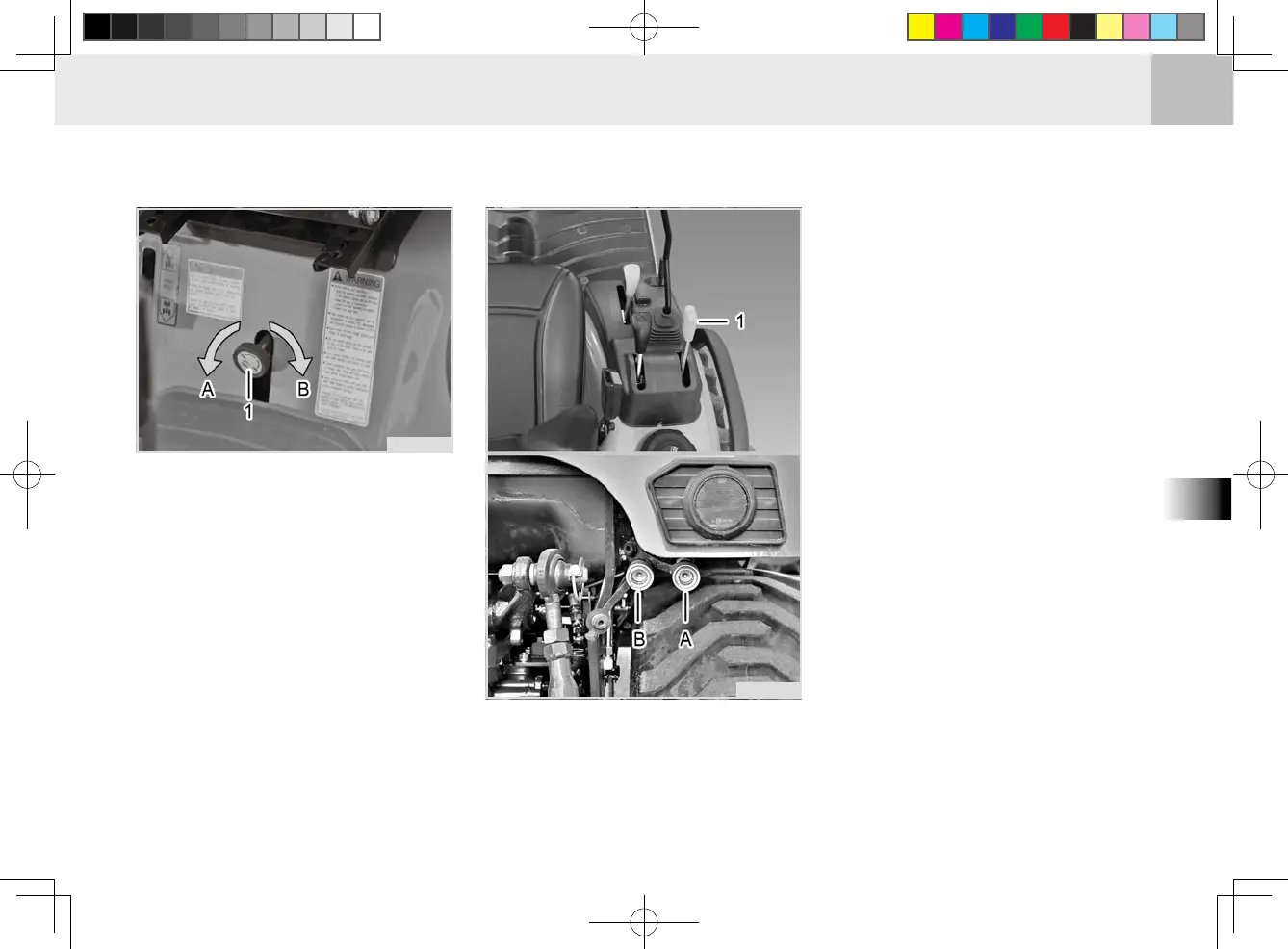

(1) Lowering Speed Control Lever
(A) High Speed (B) Low Speed
M46O439A
(1) Double Acting Valve Lever (Self Return Type)
(A) Port A (B) Port B
tb3O511A
EXTERIOR HYDRAULIC CONTROL SYSTEM (OPTIONAL)
DOUBLE ACTING VALVE LEVER
KIOTI
supplies self-return type of the
double acting valves:
For the self-return type double act-
ing lever, it returns to its original
position to block the hydraulic uid
when it is pushed/pulled and then
released. However, this type of
double acting valve lever should be
pulled or pushed continuously for
operation which is suitable for an
implement with a short operating
time, such as the hydraulic cylinder.
