DESCRIPTION OF OPERATING SYSTEM
4
Put the detent valve operating
lever into the neutral position
when the hydraulic implement
is not in use . If the d etent
valve is kept in the operating
position for an extended pe-
riod of time, the relief valve is
kept open and the temperature
of the hydraulic fluid rises,
leading to damage of various
hydraulic parts, such as the oil
seals and O-rings.
WARNING
tb3O438A

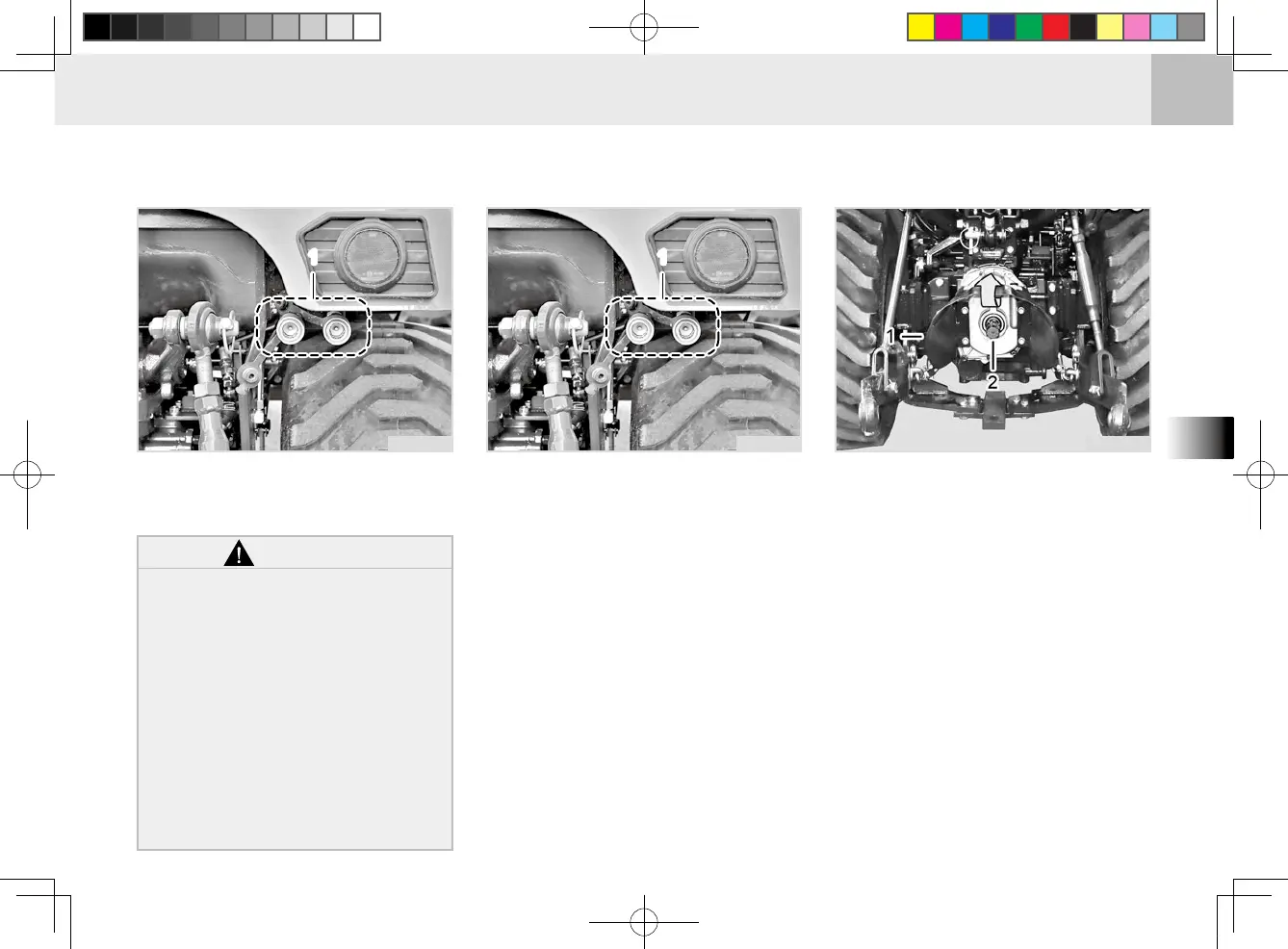

(1) Quick Coupler (1) Quick Coupler
An Auxiliary valve can be installed to
the tractor optional and a port can be
attached to front or rear way according
to option kit.
The auxiliary valve is installed to one
of 3/8" quick couplers.
AUXILIARY PORT (OPTIONAL) PTO SHAFT COVER & CAP
(1) P.T.O Shaft Cover (2) P.T.O Shaft Cap
Use only the double mounting full type
PTO cover.
The cover can be turned to the top to
facilitate implement installation on the
PTO spline shaft.
Make sure to install the PTO cap when
the PTO is not in use.
tb3O439A
