- 38 -
623O605A
IMPORTANT
• Always attach tires as shown in the above draw-
ings.
If not attached as illustrated, transmission parts may
be damaged.
• After changing the wheel, nuts should be torqued
to 145~165 ft-lbs (196~226 N-m, 20~23 kg-m).

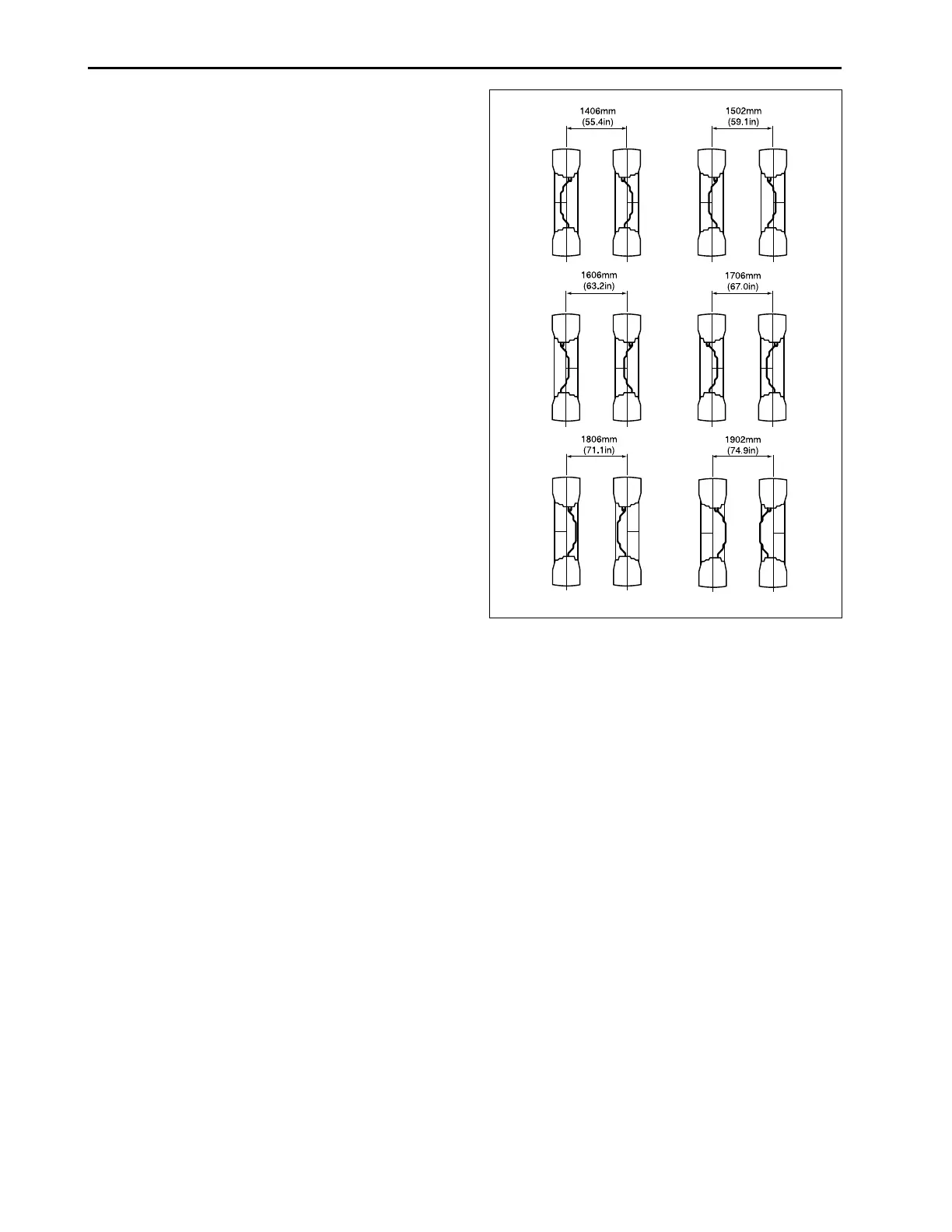

6.2 Tread-rear
The rear axle tread width are adjustable in 4 stages
from 1406 to 1902 mm (55.4 to 74.9in.) by changing
the installation of the tire(together with rim) to the disk,
to suit the type or condition of work.
In either case, the tire should be installed so that arrow
mark would show the direction of rotation. Furthermore,
the tire mark on the ground should be in “V” shape.
To change the present tread to the desired tread, all of the
arrow mark would show the direction of rotation. Further-
more, the tire mark on the ground should be in “V” shape.
Remove rim bolts, slide in peripheral direction to move to
outside or inside of disk and set.
Change the left with the right tire, and set to the inside
or outside of the disk. Change the direction of the disk.
To Next Page
