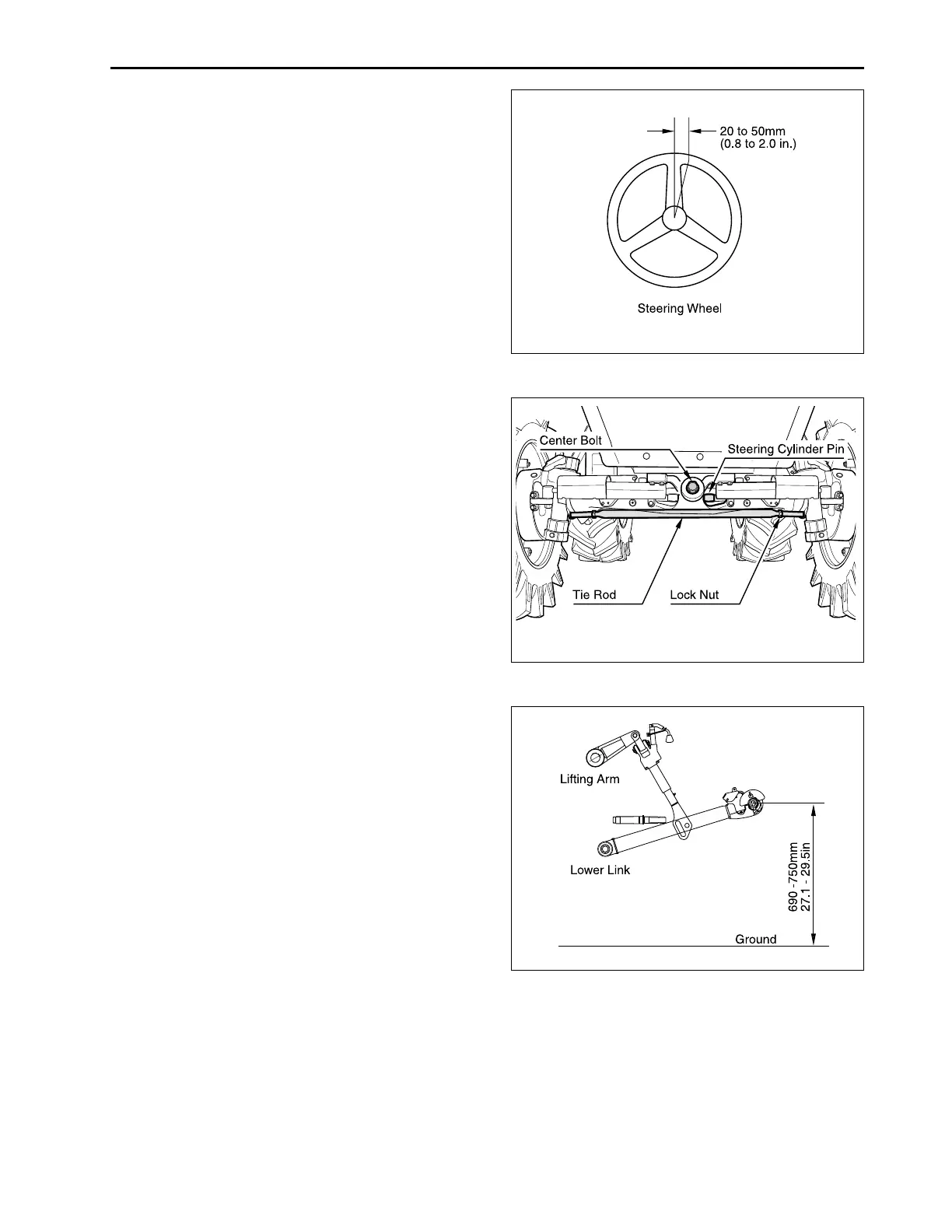

10.4 Steering Wheel
Moderate steering wheel play is 20 to 50mm (0.8 to
2.0 in.).
623OA04A
10.5 Front Axle Support
A front axle support is securely clamped. If not, loosen
the center nut, and firmly tighten the center bolt. Tighten
the center nut.
623OA05A
10.6 Adjusting the Micro
Switch’s Height.
If you have assembled the micro switch at the fender
according to the assembly order, the height from
ground to center of lower link ball will be set 690 to
750mm(27.2 to 29.5 in.) or so. The PTO shaft’s rota-
tion will be stopped at this position.
Also, if you need the height higher than the above 690
~ 750mm(23.6 ~ 26 in.), Loosen the bolts (1) and ad-
just the switch bracket (2)’s (2) height toward the
above bit by bit. Simultaneously, check the lower link
ball center is appropriate to you. You can be change-
able this height [A] up to 910mm(35.8 in.) by this switch
bracket’s position. If not proper, adjust according to
the instruction above.
623OA06A
