Specifi cations
6
19 690 01 Rev. --KohlerEngines.com

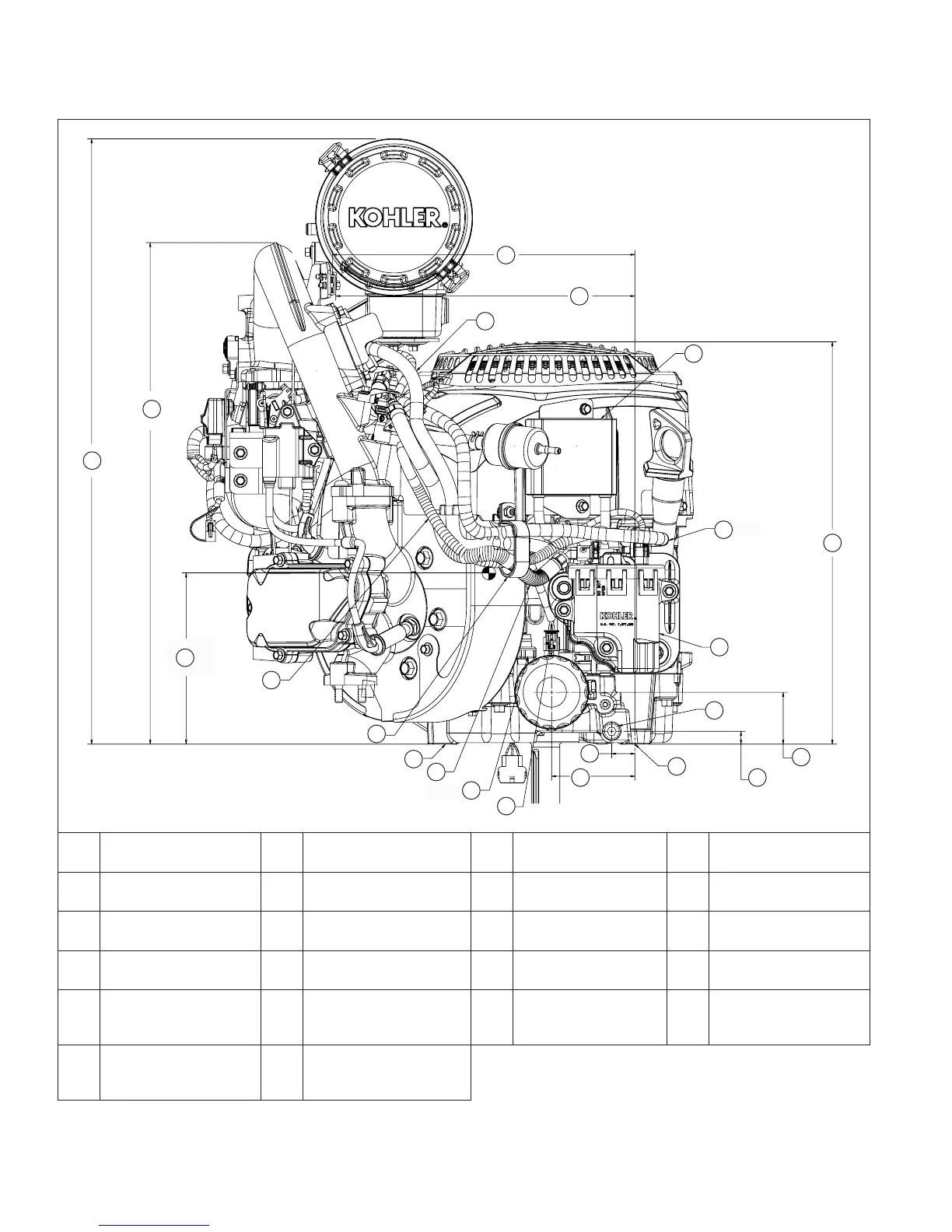

Engine Dimensions-Oil Filter Side
A
Air Cleaner Top
609.5 mm (24.00 in.)
B
Intake Manifold Top
504.9 mm (19.88 in.)
C
Center of Gravity
172.5 mm (6.79 in.)
D Evap Hose
E
Hose Retention
Clamp
F
Engine Mounting
Surface
G
High Pressure
Fuel Outlet Hose
H Oil Pressure Switch
I
Oil Temperature
Switch
J
Oil Filter
83.8 mm (3.30 in.)
K 23.3 mm (0.92 in.) L Mounting Hole “A”
M 13.0 mm (0.51 in.) N
Oil Filter
52.2 mm (2.06 in.)
O
Oil Drain Plug
3/8 in. NPTF
P Fuel Pump Module
Q
Guard Top
405.1 mm (15.95 in.)
R Pulse Hose S
Oil Cooler
(Optional)
T
Throttle Clamp
Position #1
301.1 mm (11.85 in.)
U
Throttle Clamp
Position #2
304.5 mm (11.99 in.)
V
Low Pressure
Fuel Hose
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
Q
S
V
T
U
