Disassembly/Inspection and Service
7519 690 01 Rev. -- KohlerEngines.com

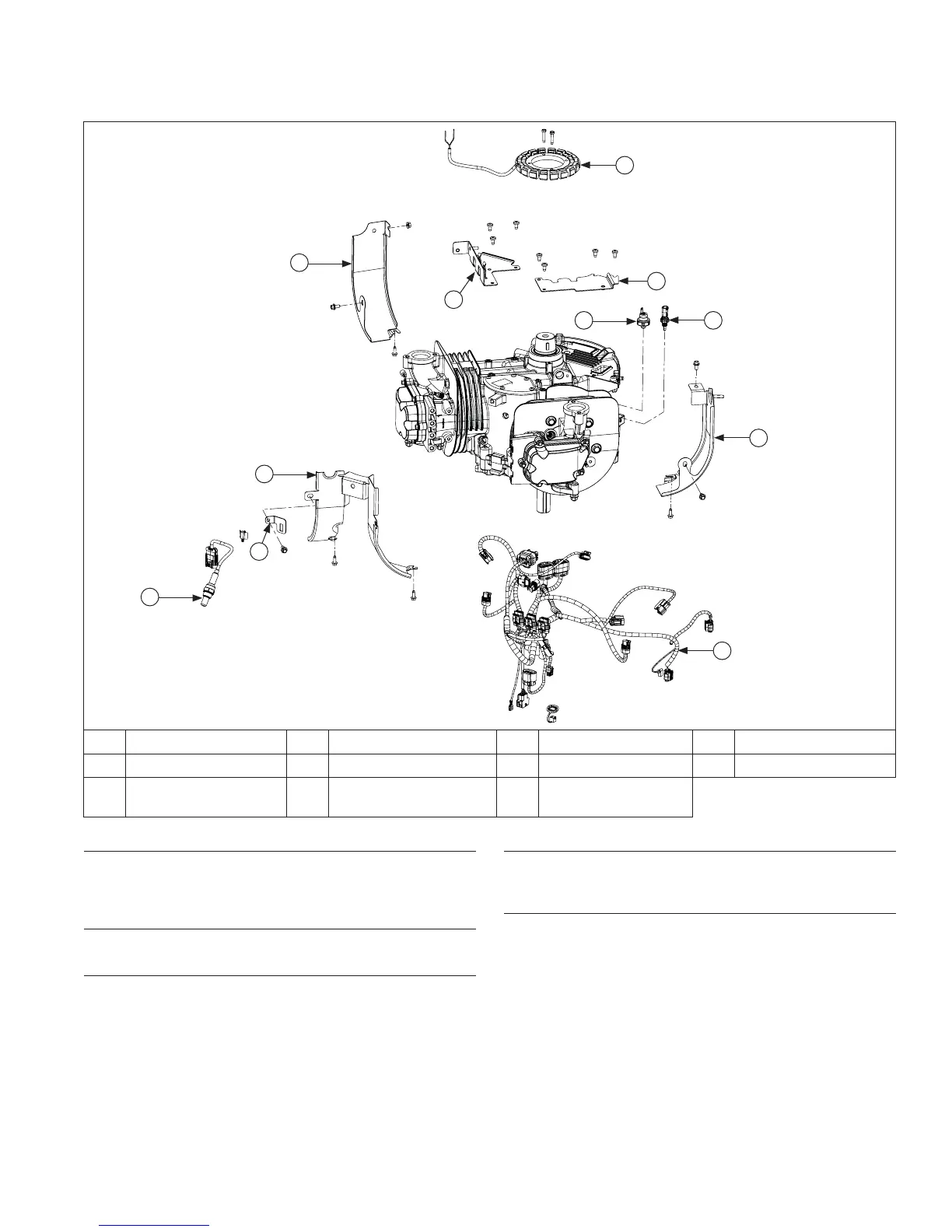

Remove Baffl es/Wire Harness/Stator Components
F
E
D
G
C
A
B
I
H
KJ
A Valley Baffl e B Mounting Bracket C O2 Sensor D Wire Harness
E Cylinder #2 Baffl e F Stator G Cylinder #1 Baffl e H Crankcase Baffl e #1
I Crankcase Baffl e #2 J
Oil Sentry
™
Pressure
Switch
K
Oil Temperature
Sensor
Remove Valley Baffl e
Remove two lower screws on PTO side and remove
screw in valley area that includes O2 sensor mounting
bracket. Remove valley baffl e.
Remove Cylinder Baffl es
Remove screws and cylinder baffl es.
Remove Crankcase Baffl es
Remove screws and crankcase baffl es.
Remove Stator
Remove screws and stator. Wire harness may stay
connected to stator.
Remove Ground Wire and Wire Harness
1. Remove wire harness ground on #1 crankcase
baffl e.
2. Disconnect oil temperature sensor connector and Oil
Sentry
™
pressure switch lead.
Remove Oil Sentry
™
pressure switch from oil pan
only if replacing.
Remove oil temperature sensor from oil pan only if
replacing.
3. Remove wire harness from engine with stator
attached.
